Product Description

Quality is our Bank

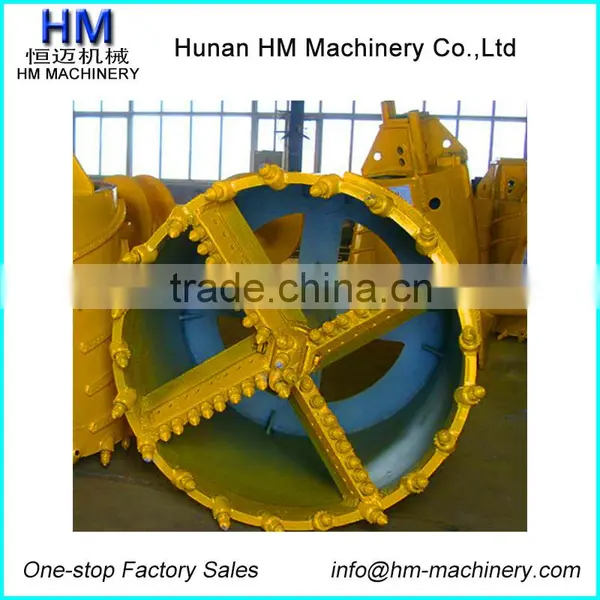

Cross Cutter Core Barrel is mainly used to break rock cores which remain in the borehole after using a core barrel

The core is broken with round shank chisels.

The cuttings are then removed with buckets

It is also suitable for drilling hard, jointed rock(＜100 Mpa) and for penetrating through layers containing boulders

our  core barrel are widly used  for Bauer Rotary Drilling Rig and Rig brand like Sany, Xcmg, Soilmec, Mait, IMT...

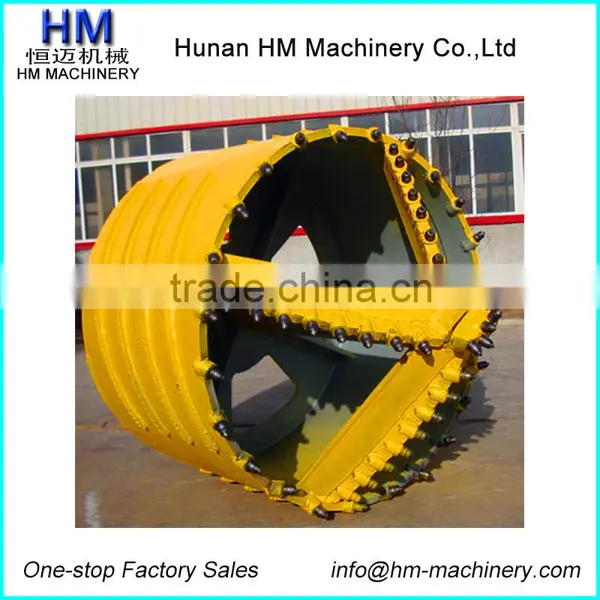

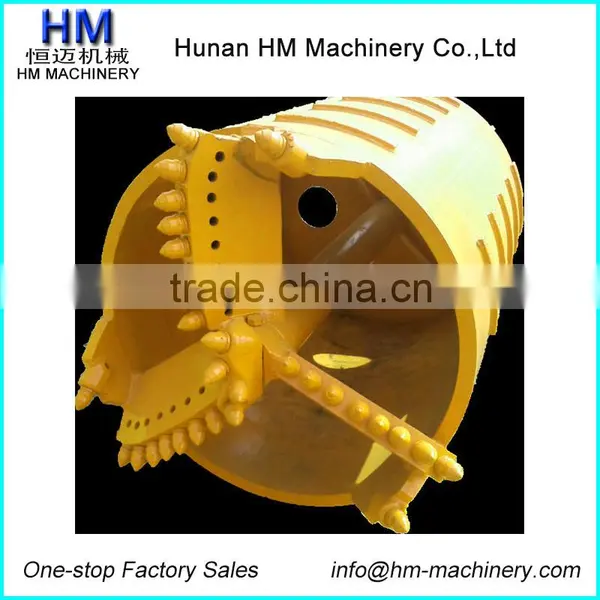

Cross Cutter Core Barrel
Size
520mm-2500mm
Application
- Used to break rock cores which remain in the borehole after using a core barrel
-it is also suitable for drilling hard ,jointed rock(＜100Mpa)

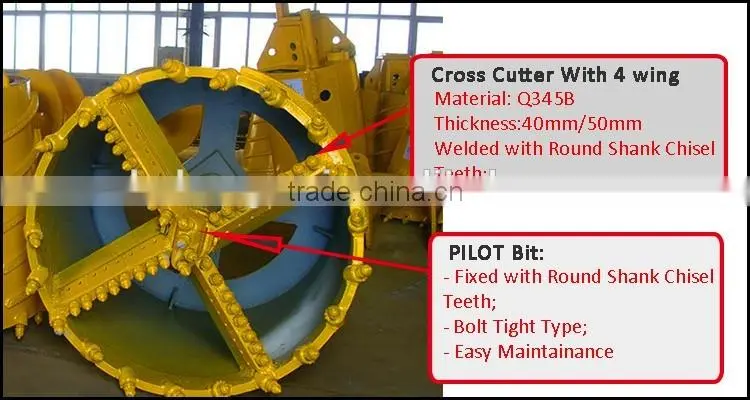

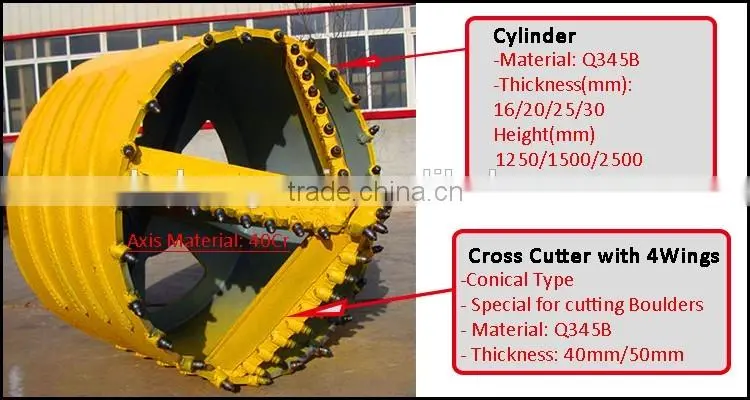

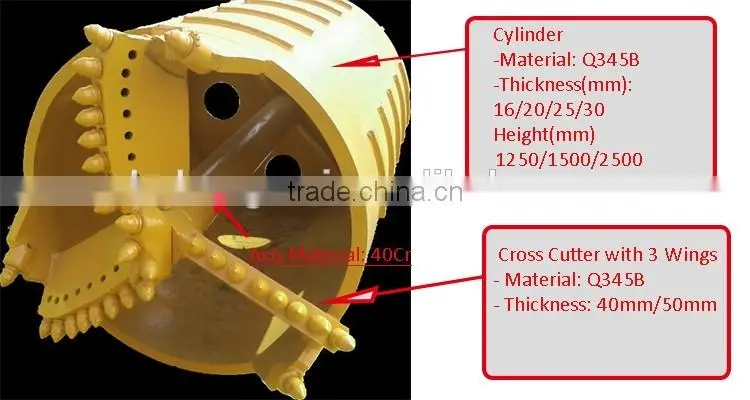

Features
-Kelly Box size
130;150;200mm;
- Cutting ring with round shank chisels
-Chisel holders are welded to the base
- Alloy Steel Central pipe reinforcement
Suitable for Rotary Drilling Rig
Bauer;Sany; Xcmg; Soilmec; Mait; IMT...
Why choose us

Step 1 Our Technical Advantage

Step 2  Rotary Drilling Rig Drilling Tools Application Cases

Step 3 How to choose Drilling Bucket/Drilling Auger/Core Barrel

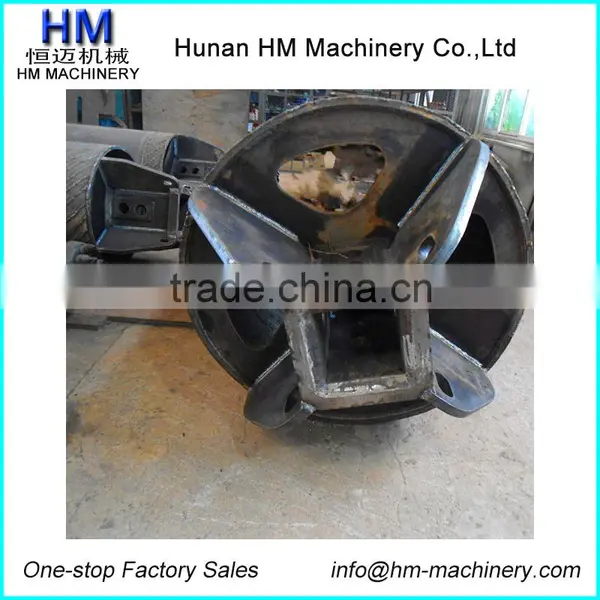

Kelly Box Standards
- Kelly Box should be welded fabricated with the plate thickness of 30mm.
- The Kelly box size shall be 200X200 Sqmm /150X150 Sq mm/130X130 Sq mm or suitable to Piling Rig.
- The Kelly box shall be  of full length size for proper alignment of holes and optimum power transmission capacity. The      total inside clearance for Kelly box square shall be +5mm. The Holes of Kelly box shall be welded collar.
- The Kelly box will be manufactured with signed copy of drawing from customer side.
Cutting Edge Standards
The cutting edges/ diameter shall be 30mm--40 mm less than the Pile/Casing Diameter(Inner Dia). This shall provide a 30mm--40 mm total clearance i.e. 15mm--20 mm on each side. This shall be applicable to each Piling Tools manufactured.

Please refer the sample table given below

Normal Size of Tool
(Casing Inner Diameter)
Outer Dia of Shell Diameter
(Auger flight Diameter)
Cutting Edge Diameter
(Teeth to Teeth Distance)
900 mm
820 mm-840 mm
860 mm-870 mm
1200 mm
1120 mm-1140 mm
1160 mm-1170 mm

Step4 Our Core Barrel Series

HM Machinery Core Barrels have been designed to cut bedrock, boulders and hard permafrost directly.
Our Core Barrels are mainly divided into three types:
#1 Roller Bits Core Barrel
#2 Core Barrel with Round Shank Chisel Teeth
#3 Core Barrel with Replaceable Blocks
#4 Cross Cut Core Barrel
For Details plz study below table refer to below pictures
HM Machinery Core Barrel Series

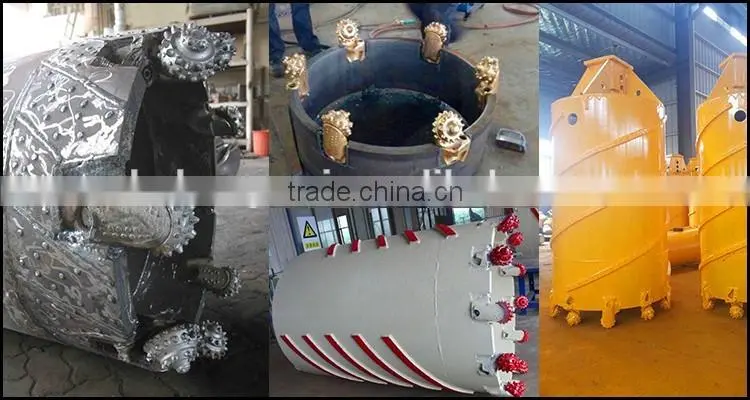

Roller Bits Core Barrel
Core Barrel With Round Shank Chisel Teeth
Core Barrerl With Replaceable Blocks

Cross Cutter Core Barrel


Size
(mm)
520-2000
520-2500
520-2000
520-2500




Application
- For strong rock formations(compressive strength ≥100Mpa).
-Upto strong rock of 100Mpa suitable for cutting through fissured rock
- Upto strong rock of 100Mpa lightly reinforced concrete
- Used to break rock cores which remain in the borehole after using a core barrel
-it is also suitable for drilling hard ,jointed rock(＜100Mpa)





Features
- Kelly Box size
 130;150;200mm
- Roller Bits complete of bearing and carbide insert
- Kelly Box size
130;150;200mm
- Cutting ring with raggered arrangement of round shank chisels.
- Chisel holders are welded to the base body.
- The round shank chisels can be easily replaced when using suitable tools
- Kelly Box size
130;150;200mm;
- Cutting Ring with tungsten carbide armoured blocks
- The block holders are welded into the base ring of the core barrel
- The blocks are secured with a pin and can be easily replaced
-Kelly Box size
130;150;200mm;
- Cutting ring with round
shank chisels
-Chisel holders are welded to the base
-Central pipe reinforcement
Packing & Delivery
Payment
40% T/T  in advance
60% T/T before loading
Delivery Time
7 days after receiving down payment
Package
Normal Package or as customer requirement
