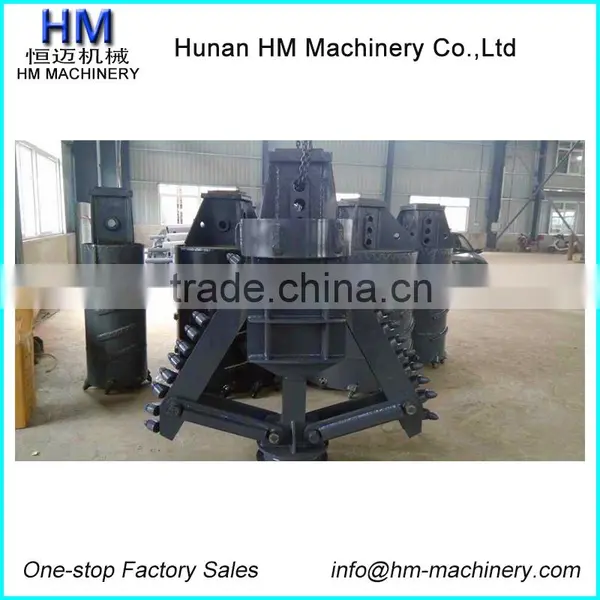

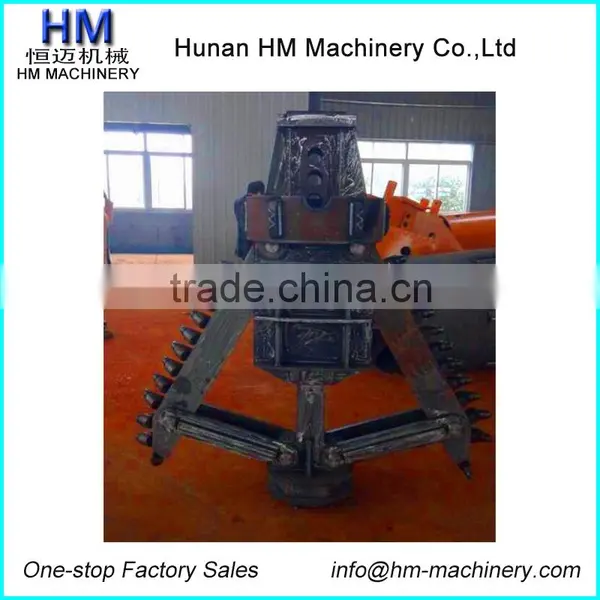

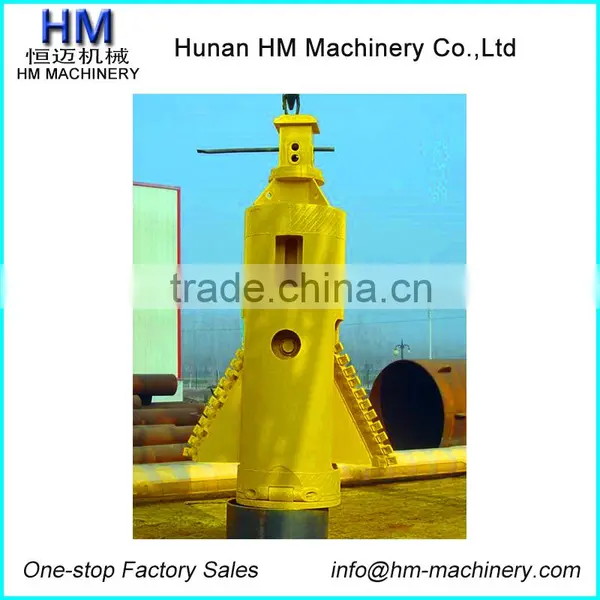

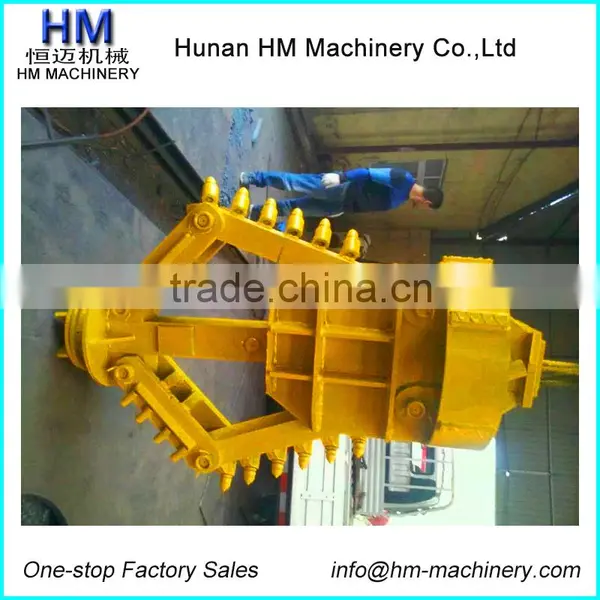

Belling Bucket For Bauer Rotary Drilling Rig photo-1
Belling Bucket For Bauer Rotary Drilling Rig photo-2
Belling Bucket For Bauer Rotary Drilling Rig photo-3
Belling Bucket For Bauer Rotary Drilling Rig photo-4
Belling Bucket For Bauer Rotary Drilling Rig photo-5
US$ 1,000 - 10,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
HM
Model Number:
HMBB/DC
Contact Supplier Request Quote Chat Now
Hunan HM Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Shanghai Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hunan, China
Brand Name HM
Model Number HMBB/DC
Product Description

Quality is our Bank

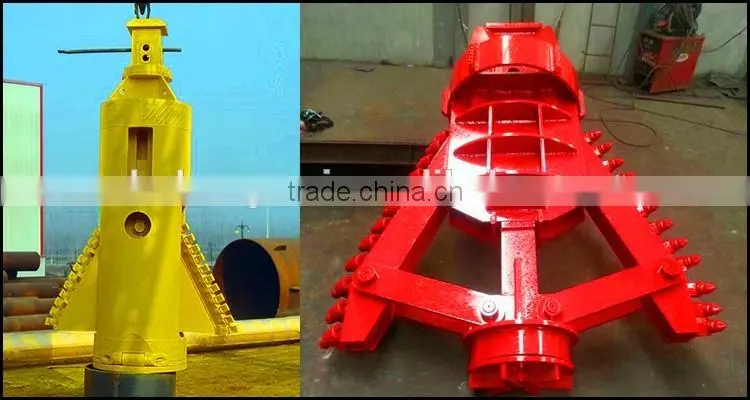

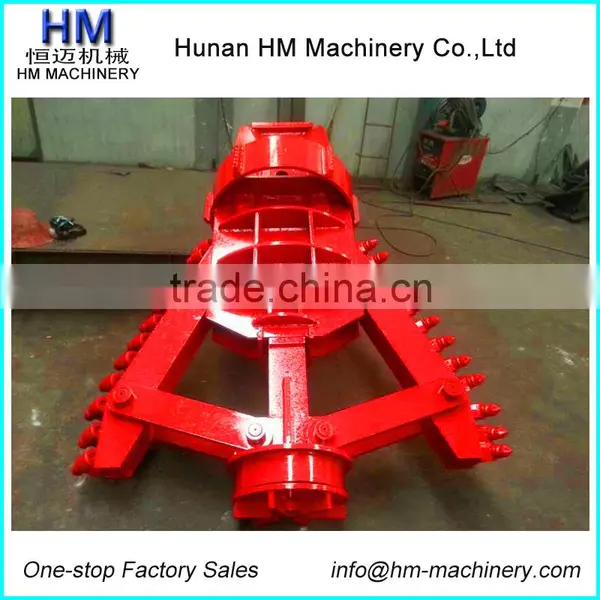

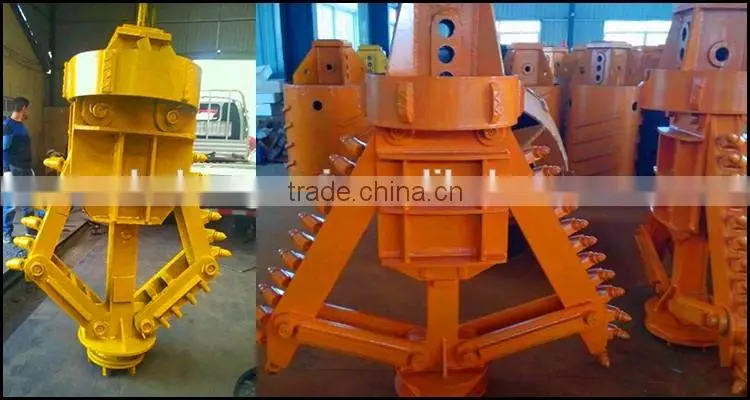

Belling Bucket for Rotary Drilling Rig
Opening diameter : 1200-5000mm Clolsed Diameter range : 580-2440mm

When conditions of soil are stable (mainly cohesive), belling buckets are used for enlarging the pile base. By use of the leverage system and application of vertical crowd force on the push rod, the cutting arms are gradually opened. The drilled material falls into the open shell of the bucket. The cutting arms are closed by upward movement of the kelly bar which transmits the pull onto the push rod.

Belling Bucket Parameters

     Model
Closed Diameter (mm）
Opening Diameter (mm)
Closed Height (mm)
Opening Height   (mm)
Teeth Quantity (mm)
Weight      (kg)
HMBB 600
580
1200
2800
2500
31
1400
HMBB 800
760
1600
2900
2600
33
1600
HMBB 1000
960
2000
3000
2700
36
2000
HMBB 1200
1140
2400
3500
2900
40
2600
HMBB 1500
1440
3000
3700
3100
44
3800
HMBB 1800
1740
3600
3800
3200
49
5200
HMBB 2000
1940
4000
4000
3300
54
6500
HMBB 2200
2140
4400
4300
3400
59
8000
HMBB 2500
2440
5000
4600
3500
65
10500
Kelly Box Size: 130mm*130mm; 150mm*150mm; 200mm*200mm; or as per customer requirement
Why choose us

Step 1 Our Technical Advantage

Step 2  Rotary Drilling Rig Drilling Tools Application Cases

Step 3 How to choose Drilling Bucket/Drilling Auger/Core Barrel

Kelly Box Standards
- Kelly Box should be welded fabricated with the plate thickness of 30mm.
- The Kelly box size shall be 200X200 Sqmm /150X150 Sq mm/130X130 Sq mm or suitable to Piling Rig.
- The Kelly box shall be  of full length size for proper alignment of holes and optimum power transmission capacity. The      total inside clearance for Kelly box square shall be +5mm. The Holes of Kelly box shall be welded collar.
- The Kelly box will be manufactured with signed copy of drawing from customer side.
Cutting Edge Standards
The cutting edges/ diameter shall be 30mm--40 mm less than the Pile/Casing Diameter(Inner Dia). This shall provide a 30mm--40 mm total clearance i.e. 15mm--20 mm on each side. This shall be applicable to each Piling Tools manufactured.

Please refer the sample table given below

Normal Size of Tool
(Casing Inner Diameter)
Outer Dia of Shell Diameter
(Auger flight Diameter)
Cutting Edge Diameter
(Teeth to Teeth Distance)
900 mm
820 mm-840 mm
860 mm-870 mm
1200 mm
1120 mm-1140 mm
1160 mm-1170 mm

Step4 Our Drilling Bucket Series

HM Machinery Driling Bucket are used to drill all types of soils below groundwater.
Our Drilling Bucket are mainly divided into three types:
#1 Rock Drilling Bucket
(Include Single Cut Rock Drilling Bucket and Double Cut Rock Drilling Bucket)
#2 Clay(Dirt) Drilling Bucket
(Include Single Cut Clay(Dirt) Drilling Bucket and Double Cut Clay(Dirt) Drilling Bucket)
#3 Cleaning Bucket
(Include Single Cut Cleaning Bucket and Double Cut Cleaning Bucket)
For Details plz study below table refer to below pictures
HM Machinery Drilling Bucket Series
Clay (Dirt) Drilling Bucket
Clay (Dirt)
 Drlling Bucket
 With Collar Plate
Rock Drilling Bucket
With Collar Plate
Drilling Buck with Cleaning Edge
Centrifugal Bucket
Single Cut
Double Cut
Single Cut
Double Cut
Single Cut
Double Cut
Single Cut
Double Cut
Flat Teeth;
Round Shank Chisel Teeth
Size
(mm)
520-1500
1000-2500
520-1500
1000-2500
520-1500
1000-2500
520-1500
1000-2500
800-100




Application
-Soft to stiff slit and clay,loose to medium dense sand and gravel
- Single Cut upto coarse gravel
- Double Cut is recommended in uncased bores and for bigger diametrs
- Soft to stiff slit and clay, loose to medium dense sand and gravel ;
- Single cut upto coarse gravel;
- Double cut is recommended in uncased bores and for bigger diameters for secant pile wall
- Very dense sand and gravel weak rock;
- Single cut upto coarse gravel;
- Double cut is recommended for uncased bores or bigger diameters and for secant pile wall
- Cleaning the bottom of the bore hole
- Stick Soil like clay
- Max for upto 500kpa mud rock or sand rock





Features
- Kelly Box size
 130;150;200mm
- Fishtail Pilot and flat teeth FZ;
- Ventilation Pipe;
- Wear Protect: hard facing(standard) or wear strips(optional);
- Kelly Box size
130;150;200mm
- Round shank chisel pilot bit RP4, Teeth FZ and collar plate with round shank chisels;
- Ventilation pipe;
- Wear protection: hard facting (standard) or wear stips(optional)
- Kelly Box size
130;150;200mm;
- Round shank chisel pilot bit RP4, cutting edge and collar plate with round shank chisels;
- Ventilation pipe;
- Wear protection:hard facing(standard)or wear strips(optional)
-Kelly Box size
130;150;200mm;
- Pilot bit RP4 with round
shank chisels progressive cutting dege with round shank chisels
- Wear protection: hard facing(standard or wear strips(optional)
- Kelly Box size
130;150;200mm;
- Round shank chisels teeth or flat teeth FZ
- Protection :hard facing(standard)or wear strips(optional)
Packing & Delivery
Payment
40% T/T  in advance
60% T/T before loading
Delivery Time
7 days after receiving down payment
Package
Normal Package or as customer requirement
Our Company
Factory and Office

Work Shop and Store

Fair Show: Bauma China Exhibition-2010
