CFA Continuous Flight Auger With Rock Head

CFA Continuous Flight Auger With Rock Head thumbnail-1
CFA Continuous Flight Auger With Rock Head thumbnail-2
CFA Continuous Flight Auger With Rock Head thumbnail-3
CFA Continuous Flight Auger With Rock Head thumbnail-4
CFA Continuous Flight Auger With Rock Head thumbnail-5
CFA Continuous Flight Auger With Rock Head thumbnail-6
CFA Continuous Flight Auger With Rock Head photo-1
CFA Continuous Flight Auger With Rock Head photo-2

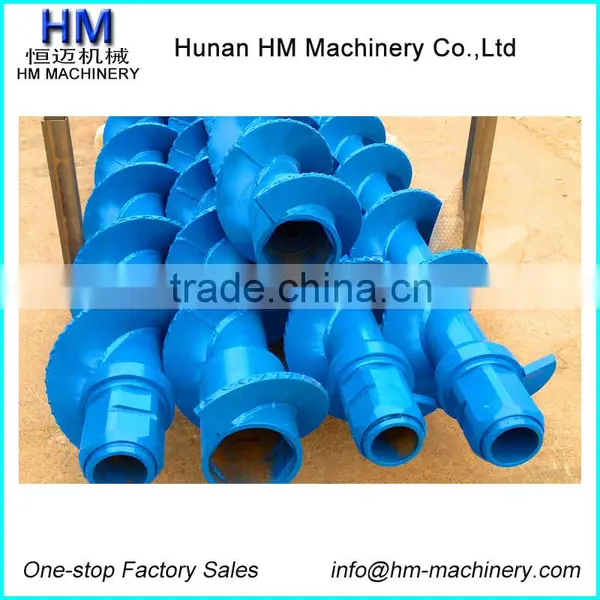

CFA Continuous Flight Auger With Rock Head photo-3
CFA Continuous Flight Auger With Rock Head photo-4
CFA Continuous Flight Auger With Rock Head photo-5
CFA Continuous Flight Auger With Rock Head photo-6
US$ 2,000 - 8,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
HM
Model Number:
HMCFA/DCR
Contact Supplier Request Quote Chat Now
Hunan HM Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Shanghai Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hunan, China
Brand Name HM
Model Number HMCFA/DCR
Product Description

Quality is our Bank

Hunan HM Machinery Co CFA Continuous flight augers include two types:

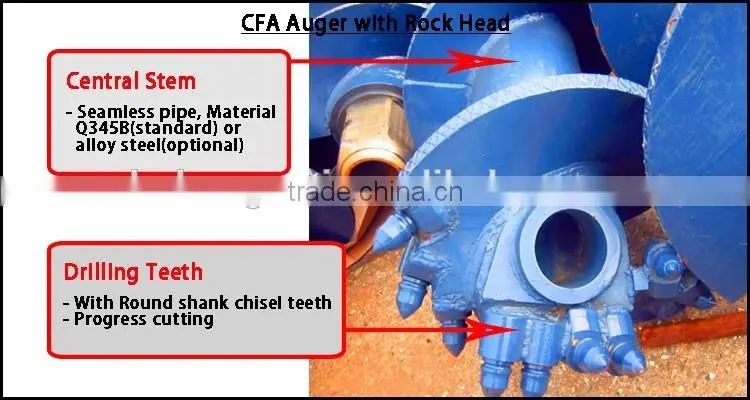

- CFA Continuous flight auger with Rock Head

- CFA Continuous flight auger with Soil Head

CFA Continuous flight augers

Size
With Rock Head
With Soil Head
350mm-1000mm
400mm-1200mm
Remark

Application
Very dense sand and gravel, weak rock (<5 Mpa)
Soft the stiff silt and clay, loose to medium dense sand and gravel

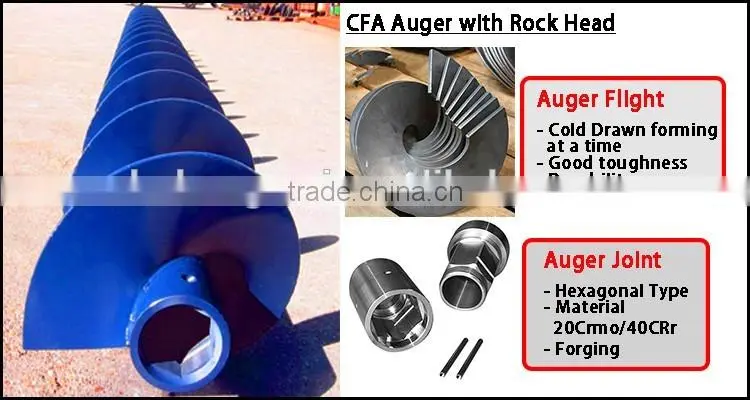

Features
- Joint: Hexagonal male-female joint
- Chisel type: Round Shank Chisel fixed along the flight edge
- Wear protection: Hard Facing (Standard)
- Wear strip: Optional
- Joint: Hexagonal male-female joint
- Teeth type: FZ, ESCO or ETE
- Wear protection: Hard Facing (Standard)
- Wear strip: Optional
Product Details

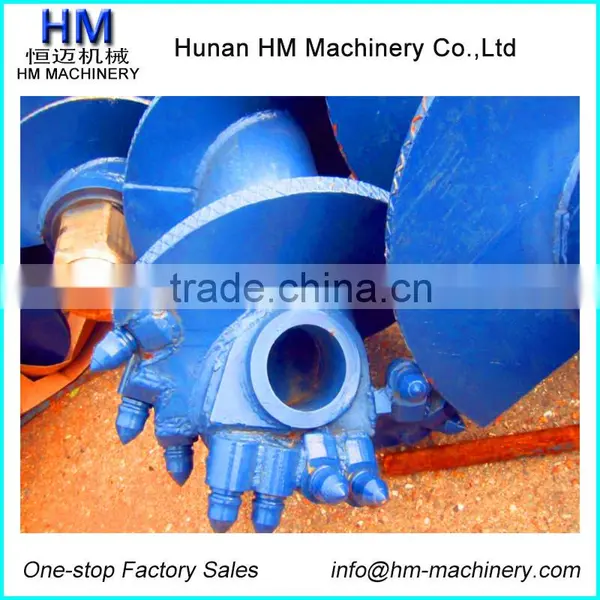

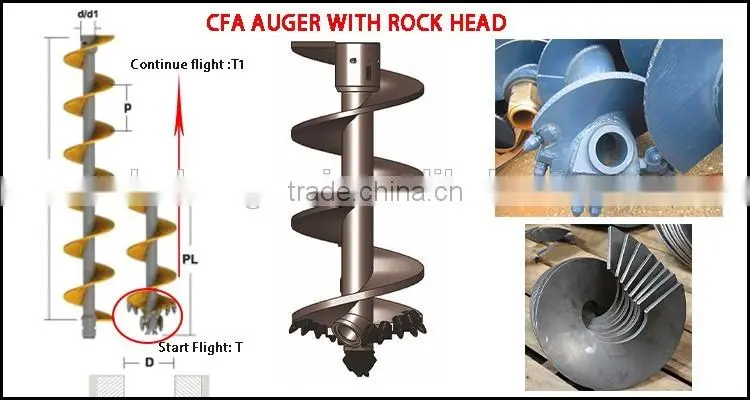

F 1 CFA Continuous flight auger with Rock Head

Diameter(mm)
T(mm)
Start Flight Thickness
T1(mm)
Continuous Flight Thickness
P（mm）
Pitch
d(mm/inch)
CFA Tube  Outer Dia
d1(mm/inch)
CFA Tube Inner Dia-Concrete passage
400
30
20
350
203mm/8''
143mm/5.62''
500
30
20
400
203mm/8''
143mm/5.62''
600
30
20
500
203mm/8''
143mm/5.62''
700
30
20
600
203mm/8''
143mm/5.62''
800
30
20
600
203mm/8''
143mm/5.62''
900
30
20
600
203mm/8''
143mm/5.62''
1000
30
20
600
203mm/8''
143mm/5.62''
1100
40
25
600
203mm/8''
143mm/5.62''
1200
40
25
600
203mm/8''
143mm/5.62''

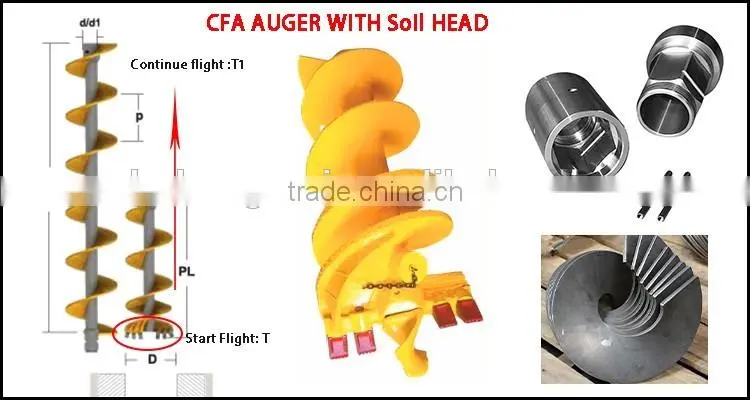

F2  CFA Continuous flight auger with Soil Head

Diameter(mm)
T(mm)
Start Flight Thickness
T1(mm)
Continuous Flight Thickness
P（mm）
Pitch
d(mm/inch)
CFA Tube   Outer Dia
d1(mm/inch)
CFA Tube Inner Dia-Concrete passage
350
25
15
350
125mm/5''
178mm/7''
400
25
15
350
125mm/5''
178mm/7''
500
25
15
400
125mm/5''
178mm/7''
600
25
15
500
125mm/5''
178mm/7''
700
30
20
600
125mm/5''
178mm/7''
800
30
20
600
125mm/5''
178mm/7''
900
30
20
600
125mm/5''
178mm/7''
1000
30
20
600
125mm/5''
178mm/7''

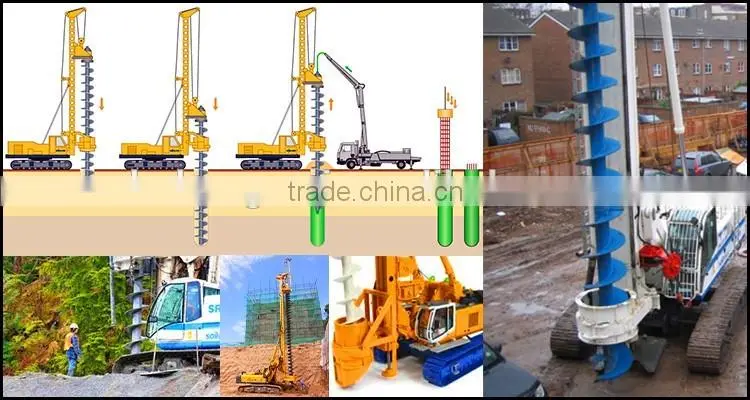

F3 CFA Auger Applications

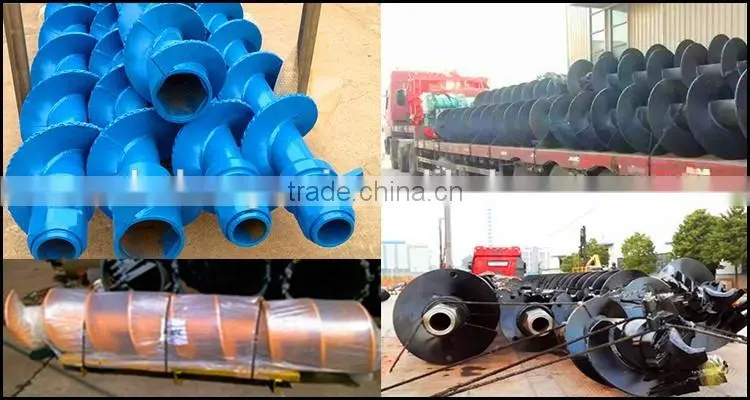

Packing & Delivery
Payment
40% T/T  in advance
60% T/T before loading
Delivery Time
7-15 days after receiving down payment
Package
Normal Package or as customer requirement
Our Company

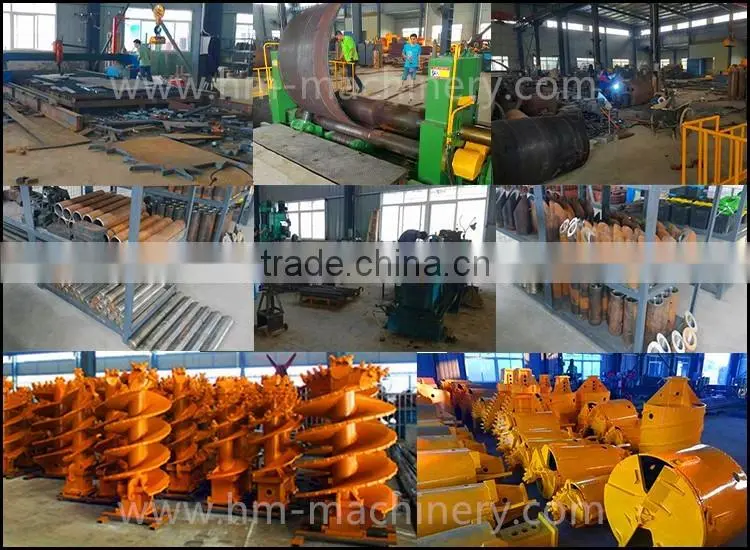

Factory and Office

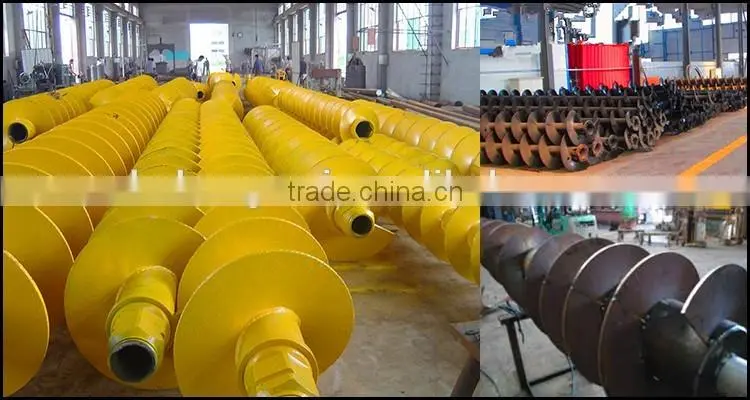

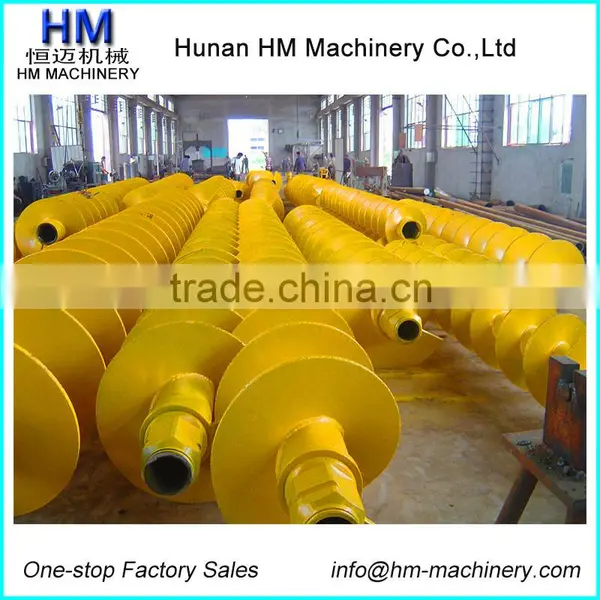

Work Shop and Store

Fair Show: Bauma China Exhibition-2010

FAQ

Q1.Are you a manufacturer or trading company?
- Yes, we have two factories and we are the leading manufacturer in China. Welcome if you have plan to visit our
factory and inspect the products.
Q2.How is your Rotary Drilling Rig Drilling Tools quility?
- We manufacture Drilling Tools basic on serving our mother company which is a professional foundation construction
company since 2003, we deal with machinery and spare parts problems and improve it
- We succeed to be as Drilling Bucket/Drilling Auger/Core Barrel  OEM of XCMG Co
- With construction and manufacturing experience we do know the important of machine perfectness ratio, machine is our customer's bank and quality is our bank.
Q3.Do you accept sample order?
- Yes sure, please contact us for details.
Q4.How about your after-sales service?
As a manufacturer, we offer promote technology support for all problems and questions.
Besides, we accept goods return or replace for quality problem.
Q5.Where is your factory located in?
Our factory is located in Changsha city,Hunan province, China.
