Single Cut Drilling Bucket With Cleaning Edge For Bauer Rotary Drilling Rig

Single Cut Drilling Bucket With Cleaning Edge For Bauer Rotary Drilling Rig thumbnail-1
Single Cut Drilling Bucket With Cleaning Edge For Bauer Rotary Drilling Rig thumbnail-2
Single Cut Drilling Bucket With Cleaning Edge For Bauer Rotary Drilling Rig thumbnail-3
Single Cut Drilling Bucket With Cleaning Edge For Bauer Rotary Drilling Rig thumbnail-4
Single Cut Drilling Bucket With Cleaning Edge For Bauer Rotary Drilling Rig thumbnail-5
Single Cut Drilling Bucket With Cleaning Edge For Bauer Rotary Drilling Rig thumbnail-6
Single Cut Drilling Bucket With Cleaning Edge For Bauer Rotary Drilling Rig photo-1
Single Cut Drilling Bucket With Cleaning Edge For Bauer Rotary Drilling Rig photo-2
Single Cut Drilling Bucket With Cleaning Edge For Bauer Rotary Drilling Rig photo-3
Single Cut Drilling Bucket With Cleaning Edge For Bauer Rotary Drilling Rig photo-4
Single Cut Drilling Bucket With Cleaning Edge For Bauer Rotary Drilling Rig photo-5
Single Cut Drilling Bucket With Cleaning Edge For Bauer Rotary Drilling Rig photo-6
US$ 1,500 - 10,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
HM
Model Number:
HMCB/SC
Contact Supplier Request Quote Chat Now
Hunan HM Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Shanghai Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hunan, China
Brand Name HM
Model Number HMCB/SC
Product Description

Quality is our Bank

Single Cut Drilling Bucket with Cleaning Edge for Bauer Rotary Drilling Rig and Rig brand like Sany, Xcmg, Soilmec, Mait, IMT...

Drilling Bucket with Cleaning Edge

Size
Single Cut
Double Cut
520mm-2500mm
1000mm-2500mm
Remark
Application
- Cleaning the bottom of the bore hole

Features
-Kelly Box size
130;150;200mm;
- Pilot bit RP4 with round
shank chisels progressive cutting dege with round shank chisels

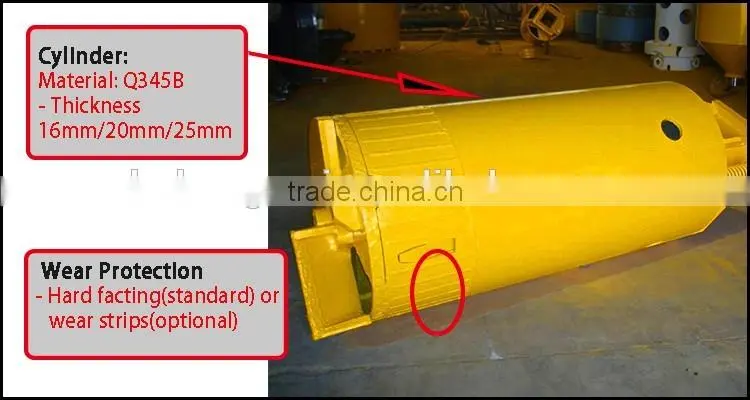

- Wear protection: hard facing(standard or wear strips(optional)
Why choose us

Step 1 Our Technical Advantage

Step 2  Rotary Drilling Rig Drilling Tools Application Cases

Step 3 How to choose Drilling Bucket/Drilling Auger/Core Barrel

Kelly Box Standards
- Kelly Box should be welded fabricated with the plate thickness of 30mm.
- The Kelly box size shall be 200X200 Sqmm /150X150 Sq mm/130X130 Sq mm or suitable to Piling Rig.
- The Kelly box shall be  of full length size for proper alignment of holes and optimum power transmission capacity. The      total inside clearance for Kelly box square shall be +5mm. The Holes of Kelly box shall be welded collar.
- The Kelly box will be manufactured with signed copy of drawing from customer side.
Cutting Edge Standards
The cutting edges/ diameter shall be 30mm--40 mm less than the Pile/Casing Diameter(Inner Dia). This shall provide a 30mm--40 mm total clearance i.e. 15mm--20 mm on each side. This shall be applicable to each Piling Tools manufactured.

Please refer the sample table given below

Normal Size of Tool
(Casing Inner Diameter)
Outer Dia of Shell Diameter
(Auger flight Diameter)
Cutting Edge Diameter
(Teeth to Teeth Distance)
900 mm
820 mm-840 mm
860 mm-870 mm
1200 mm
1120 mm-1140 mm
1160 mm-1170 mm

Step4 Our Drilling Bucket Series

HM Machinery Driling Bucket are used to drill all types of soils below groundwater.
Our Drilling Bucket are mainly divided into three types:
#1 Rock Drilling Bucket
(Include Single Cut Rock Drilling Bucket and Double Cut Rock Drilling Bucket)
#2 Clay(Dirt) Drilling Bucket
(Include Single Cut Clay(Dirt) Drilling Bucket and Double Cut Clay(Dirt) Drilling Bucket)
#3 Cleaning Bucket
(Include Single Cut Cleaning Bucket and Double Cut Cleaning Bucket)
For Details plz study below table refer to below pictures
HM Machinery Drilling Bucket Series
Clay (Dirt) Drilling Bucket
Clay (Dirt)
 Drlling Bucket
 With Collar Plate
Rock Drilling Bucket
With Collar Plate
Drilling Buck with Cleaning Edge
Centrifugal Bucket
Single Cut
Double Cut
Single Cut
Double Cut
Single Cut
Double Cut
Single Cut
Double Cut
Flat Teeth;
Round Shank Chisel Teeth
Size
(mm)
520-1500
1000-2500
520-1500
1000-2500
520-1500
1000-2500
520-1500
1000-2500
800-100




Application
-Soft to stiff slit and clay,loose to medium dense sand and gravel
- Single Cut upto coarse gravel
- Double Cut is recommended in uncased bores and for bigger diametrs
- Soft to stiff slit and clay, loose to medium dense sand and gravel ;
- Single cut upto coarse gravel;
- Double cut is recommended in uncased bores and for bigger diameters for secant pile wall
- Very dense sand and gravel weak rock;
- Single cut upto coarse gravel;
- Double cut is recommended for uncased bores or bigger diameters and for secant pile wall
- Cleaning the bottom of the bore hole
- Stick Soil like clay
- Max for upto 500kpa mud rock or sand rock





Features
- Kelly Box size
 130;150;200mm
- Fishtail Pilot and flat teeth FZ;
- Ventilation Pipe;
- Wear Protect: hard facing(standard) or wear strips(optional);
- Kelly Box size
130;150;200mm
- Round shank chisel pilot bit RP4, Teeth FZ and collar plate with round shank chisels;
- Ventilation pipe;
- Wear protection: hard facting (standard) or wear stips(optional)
- Kelly Box size
130;150;200mm;
- Round shank chisel pilot bit RP4, cutting edge and collar plate with round shank chisels;
- Ventilation pipe;
- Wear protection:hard facing(standard)or wear strips(optional)
-Kelly Box size
130;150;200mm;
- Pilot bit RP4 with round
shank chisels progressive cutting dege with round shank chisels
- Wear protection: hard facing(standard or wear strips(optional)
- Kelly Box size
130;150;200mm;
- Round shank chisels teeth or flat teeth FZ
- Protection :hard facing(standard)or wear strips(optional)
Packing & Delivery
Payment
40% T/T  in advance
60% T/T before loading
Delivery Time
7 days after receiving down payment
Package
Normal Package or as customer requirement
Our Company
Factory and Office

Work Shop and Store

Fair Show: Bauma China Exhibition-2010

FAQ

Q1.Are you a manufacturer or trading company?
- Yes, we have two factories and we are the leading manufacturer in China. Welcome if you have plan to visit our
factory and inspect the products.
Q2.How is your Rotary Drilling Rig Drilling Tools quility?
- We manufacture Drilling Tools basic on serving our mother company which is a professional foundation construction
company since 2003, we deal with machinery and spare parts problems and improve it
- We succeed to be as Drilling Bucket/Drilling Auger/Core Barrel  OEM of XCMG Co
- You can restudy above our technical advantage and analyze, We believe with above introduction you can make good
quality Drilling Bucket by yourselve as well
Q3.Do you accept sample order?
- Yes sure, please contact us for details.
Q4.How about your after-sales service?
As a manufacturer, we offer promote technology support for all problems and questions.
Besides, we accept goods return or replace for quality problem.
Q5.Where is your factory located in?
Our factory is located in Changsha city,Hunan province, China.
