Solar Panel Bracket
Negotiable
MOQ: 1000 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
EASTEEL
Model Number:
EASB030
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Solar Panel BracketNegotiableMOQ: 100 Sets -
Aluminum Solar Panel BracketNegotiableMOQ: 1
-
2013 New Appereance Design TV Wall Mount/brcketUS$ 3 - 10MOQ: 200 Pieces
-
High Quality Customized LCD/LED TV Mounting BracketUS$ 3 - 10MOQ: 200 Pieces
-
2014 Hoe Sales tv Wall BracketUS$ 3 - 10MOQ: 200 Pieces
Place of Origin
Zhejiang, China
Brand Name
EASTEEL
Model Number
EASB030
Specification
Normal
Application
Home
Output Voltage (V)
12V
Solar Power (W)
30w
Specifications
Bracke Size:350mm*450mmMaterial:Aluminum 6063 , with oxidation surface
Solar Panel Size:650*350*30mm
Peak Powder:30W
| Technical Date | |
| Possible Angle | 0°... 45° |
| Length Wall Mounting Profile(mm) | 450mm |
| Length Module Mounting Profile(mm) | 350mm |
| Material | Aluminum 6063-T5 |
| Surface | oxidation |
| Package | Each Set for a plastic bag,16sets per carton |

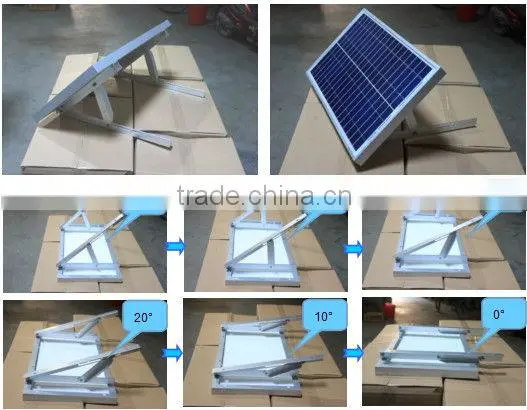

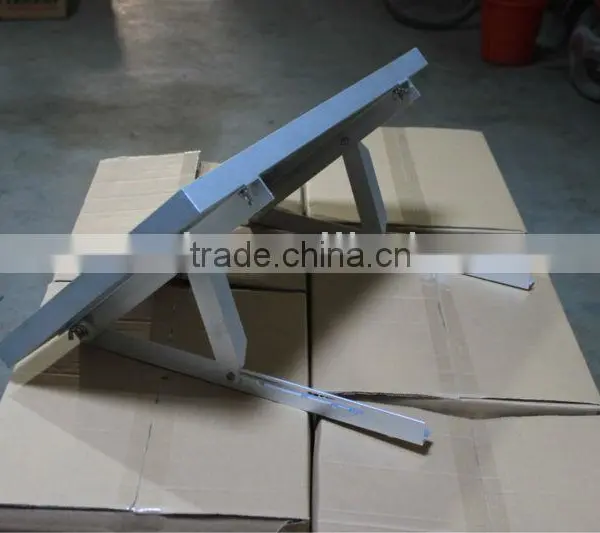

The solar panel bracket is a single module support structure with a tilt angle from0° to 45°.
It is built under high quality standards and designed for maximum durability and corrosion resistance in all environmental
areas.
The bracket ismade of aluminum and by that a very lightweight product.
It is designed for the mounting of one solar module at the ground or a wall.

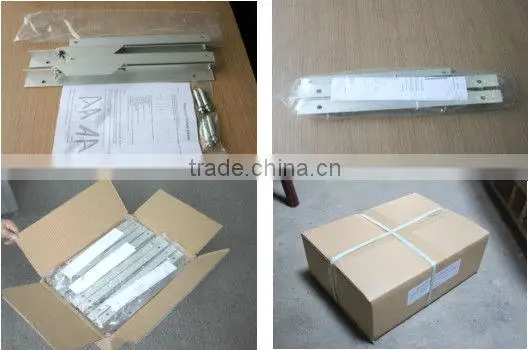

The package includes all the components (screws, etc.) for the assembling of the bracket.
It is adapted for a range of 5 Watt up to 110 Watt modules.
Specification :
Package :
