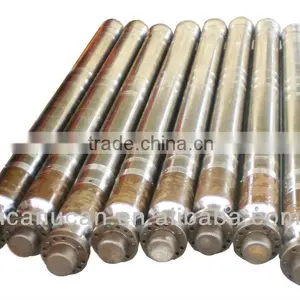

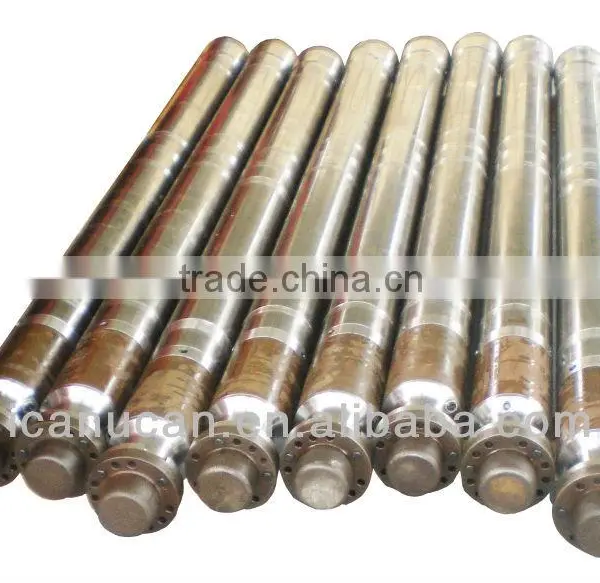

Protector, 338 series, 387/400 series, 513 series, etc
Negotiable
/ Set
1 Set(Min.Order)
- 0 per Month
- QINGDAO Port
- T/T
You May Like
Product Details
| Place of Origin: | China | Brand Name: | luwei | Model Number: | 338 series, 387/400 series, 513 series |
Product Description
Specifications
1.Carbon steel housing2.Monel Shaft
3.Hight quality and low price
LabyrinthProduct Description
Type Protector
Suitable for Vertical Wells
High-Load thrust Bearings
Multiple mechanical seals Silicon carbide
Monel K500 High Strengh Shafting
High-reusability
Proven, simple, reliable design
Bag Type Protector
Suitable for deviated or vertical wells
High-Load thrust Bearings
Multiple mechanical seals Silicon carbide
Monel K500 High Strengh Shafting
Provides positive barrier separating motor/protector oil from well fluids
Modular Type Protector
Suitable for deviated or vertical wells
High-Load thrust Bearings
Multiple mechanical seals Silicon carbideMonel K500 High Strengh Shafting
Multi-chambered for protection in all applications
| Part Number | Description | Length | Weight | O.D | Shaft O.D | Well Temp. | ShaftBHP)Max | Thrust(Lbs.)Max. | ||
| (Feet) | (Lbs.) | (Inch) | (Inch) | °F | 60HZ | 50HZ | 60HZ | 50HZ | ||
| 00661843 | TPR375L | 5.3 | 115 | 3.75 | 0.875 | 250 | 240 | 200 | 850 | 1015 |
| 00465245 | TPR387/456L | 5.3 | 124 | 3.87 | 0.875 | 250 | 240 | 200 | 850 | 10150 |
| 20001472 | TPR387MLB | 6.2 | 128 | 3.87 | 0.875 | 250 | 240 | 200 | 850 | 1015 |
| 20001473 | TPR387 MBL | 6.2 | 128 | 3.87 | 0.875 | 250 | 240 | 200 | 850 | 1015 |
| 20001474 | TPR387 MLL | 6.2 | 128 | 3.87 | 0.875 | 250 | 240 | 200 | 850 | 1015 |
| 20001475 | TPR387 MBB | 6.2 | 128 | 3.87 | 0.875 | 250 | 240 | 200 | 850 | 1015 |
| 20001476 | TPR387 MLBB | 8.5 | 177 | 3.87 | 0.875 | 250 | 240 | 200 | 850 | 1015 |
| 05390082 | TPR387 MBBL | 8.5 | 177 | 3.87 | 0.875 | 250 | 240 | 200 | 850 | 1015 |
| 20001477 | TPR387 MLLB | 8.5 | 177 | 3.87 | 0.875 | 250 | 240 | 200 | 850 | 1015 |
| 05390042 | TPR387 MBLL | 8.5 | 177 | 3.87 | 0.875 | 250 | 240 | 200 | 850 | 1015 |
| 20001478 | TPR387 MLLL | 8.5 | 177 | 3.87 | 0.875 | 250 | 240 | 200 | 850 | 1015 |
| 20001479 | TPR387 MBBB | 8.5 | 177 | 3.87 | 0.875 | 250 | 240 | 200 | 850 | 1015 |
| 60009942 | TPR400/456L | 5.3 | 124 | 4.00 | 0.875 | 250 | 240 | 200 | 850 | 1015 |
| 60012672 | TPR400MBL | 5.6 | 127 | 4.00 | 0.875 | 250 | 240 | 200 | 850 | 1015 |
| 60018082 | TPR400 MBBL | 7.6 | 180 | 4.00 | 0.875 | 250 | 240 | 200 | 850 | 1015 |
| 60010575 | TPR400/456SB | 5.1 | 122 | 4.00 | 0.875 | 250 | 240 | 200 | 850 | 1015 |
Protectors-For TM540 Series Motor
| Part Number | Description | Length | Weight | O.D | Shaft O.D | Well Temp. | ShaftBHP)Max | Thrust(Lbs.)Max. | ||
| (Feet) | (Lbs.) | (Inch) | (Inch) | °F | 60HZ | 50HZ | 60HZ | 50HZ | ||
| 00895524 | TPRDB540 | 6.3 | 256 | 5.13 | 1.187 | 250 | 600 | 500 | 1500 | 1800 |
| 00880849 | TPRSB540 | 4.1 | 177 | 5.13 | 1.187 | 250 | 600 | 500 | 1500 | 1800 |
| 00417253 | TPRL 540 | 5.8 | 190 | 5.13 | 1.187 | 250 | 600 | 500 | 1500 | 1800 |
| 60018073 | TPR 540 MBL | 7.2 | 260 | 5.13 | 1.187 | 250 | 600 | 500 | 1500 | 1800 |
| 60013085 | TPR 540 MBBL | 8.8 | 288 | 5.13 | 1.187 | 250 | 600 | 500 | 1500 | 1800 |
S=Single, D=Double, L=Labyrinth, B=Bag
Note: Protectors for 4 pole motor are available. Adapting dimensions can be provided upon request.
