Help CenterCBF-F4 Series 32cc Oil Gear Pump for Truck Crane/gear Pump Price
Related Products
-
CBF-F4 Series 32cc Commercial Hydraulic Gear Pump for Truck Crane/gear Pump PriceUS$ 69 - 77MOQ: 100 Pieces -
CBF-F4 Series Mini Gear Pump for Truck Crane, Hydraulic Gear Pump/gear Pump PriceUS$ 20 - 600MOQ: 50 Pieces
-
CBF-F4 Series 32cc for Truck Crane/gear Pump PriceUS$ 69 - 77MOQ: 100 Pieces
-
CBF-F4 Series 32cc for Truck Crane Gear Pump Manufacture/gear Pump PriceUS$ 69 - 77MOQ: 100 Pieces
-
Agricultural Machinery Hydraulic Oil Gear Pump CBF*5 Series,high Pressure Pump for Truck CraneUS$ 50 - 100MOQ: 5 Pieces
norminal displacement(ml/r) |
10,12,14,16,18,20,25, 32,40,50 |
mounting |
rectangle ,oval , square |
joining port |
L--screw connection F--flange |
rotation |
L--left(conterclockwise) R -- right ( clockwise) |
shaft end |
1, plain key Φ20t 2,plain key Φ25 3,retangle spline |
| pressure | 16mpa ,20MPA |
| fear modulus | 4 |

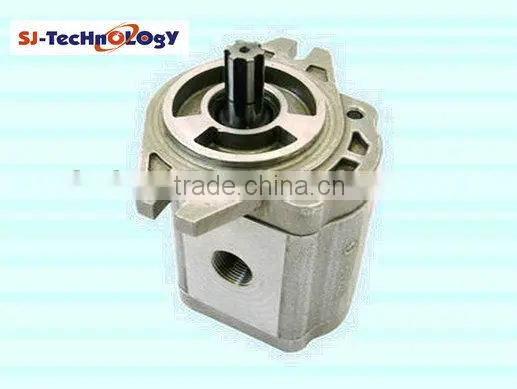

| name | CBF-F4 series 32cc oil gear pump for light industrial |
CBF series ,pump boddy is made of high strength aluminium alloy, strength with density, inside seal cover is temperature-tolerant fluororubber also with high pressrure ring.
advantages : high pressure ,low noise, resistant-vibration, long service time.
application : mining machine, hoist and road roller etc. light industry , envirmonment vechicle, farming machine

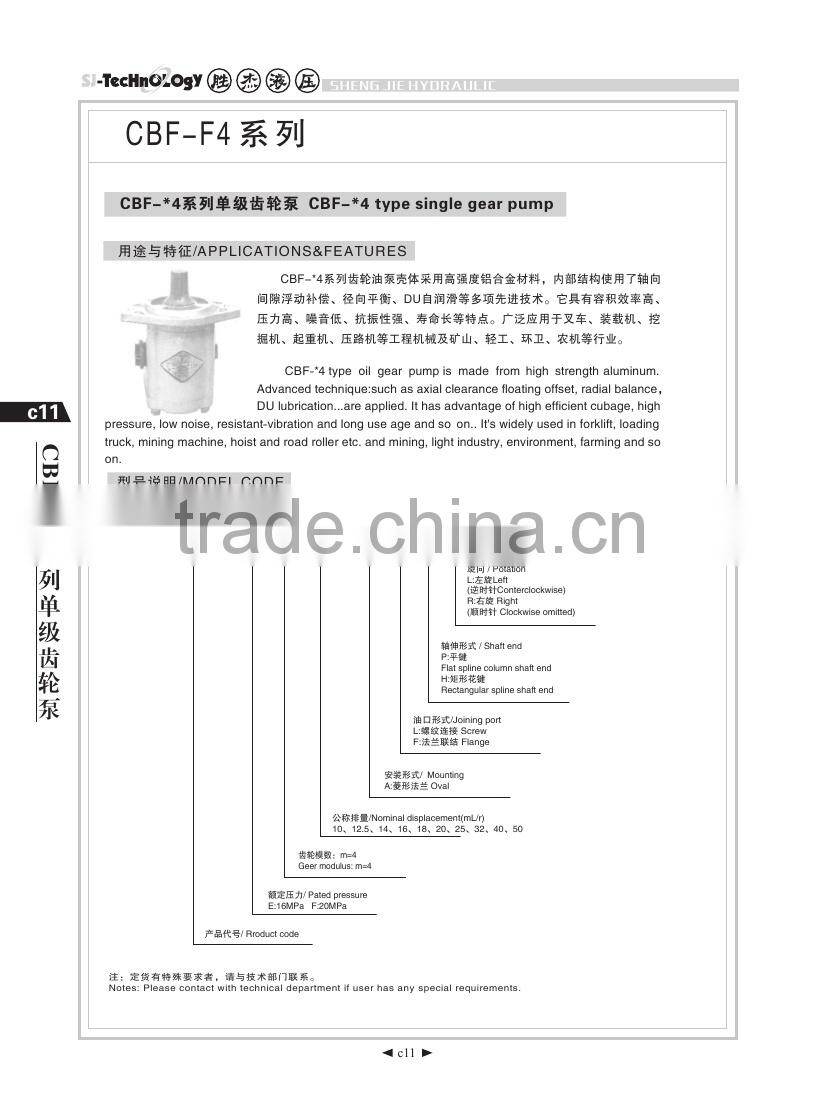

Below is the one sample of model explaination:
And some performance data of some items of this series:

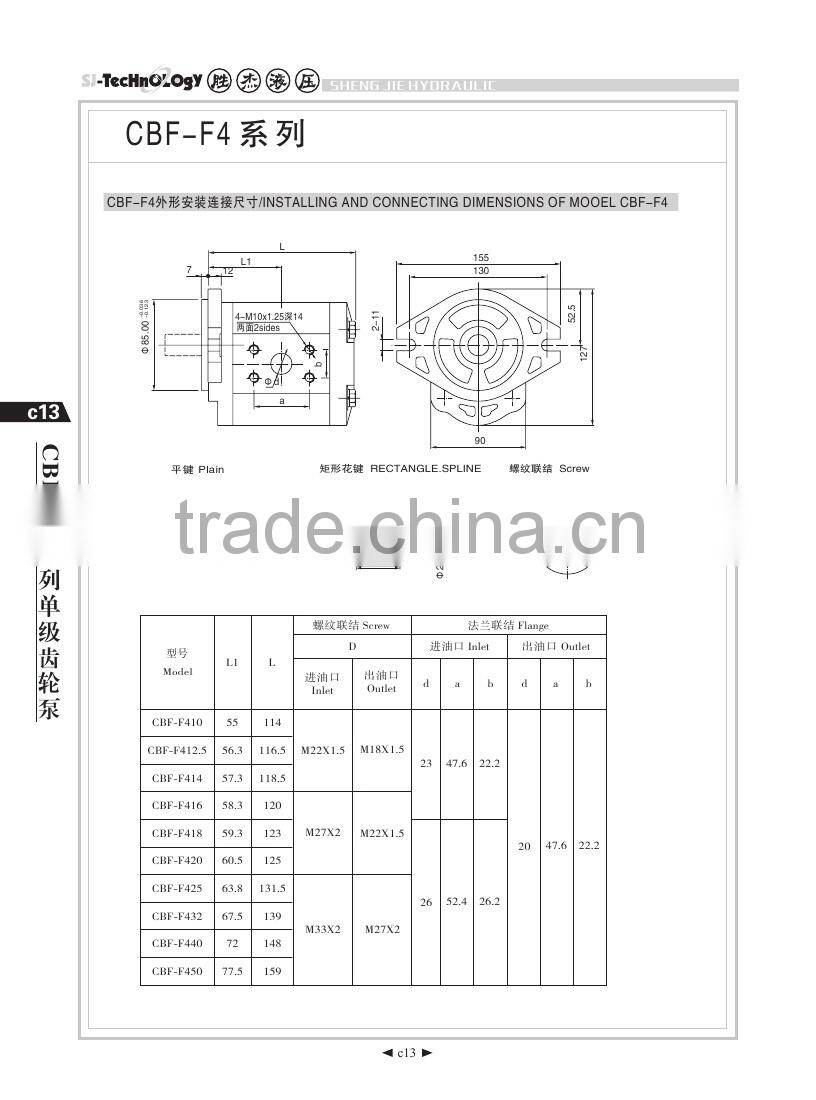

Installing and connecting dimensions:
| PACKAGING | INNER BAGS, CORRUGATED, OUTSIDE WITH WOODEN BOXS |
| SHIPPING PORT | SHANGHAI , NINGBO |
| TRADE WAY | FOB, CIF ETC. |
| PAYMENT | TT ,LC, WU |
We provide you OEM or ODM service.
1. GOOD QUALITY SERVICE,
2. FAST DELIVERY SERVICE,
3. SAFETY PACKAGE SERVICE,
4, FAST SAMPLE VALVES PREPARING SERVICE.
5. GOOD AFTER SALE SERVICE.
6. 24 HOURS ON LINE SERVICE.
7. SJ TECHNOLOGY CAST ON EVERY DETAILED POINTS.

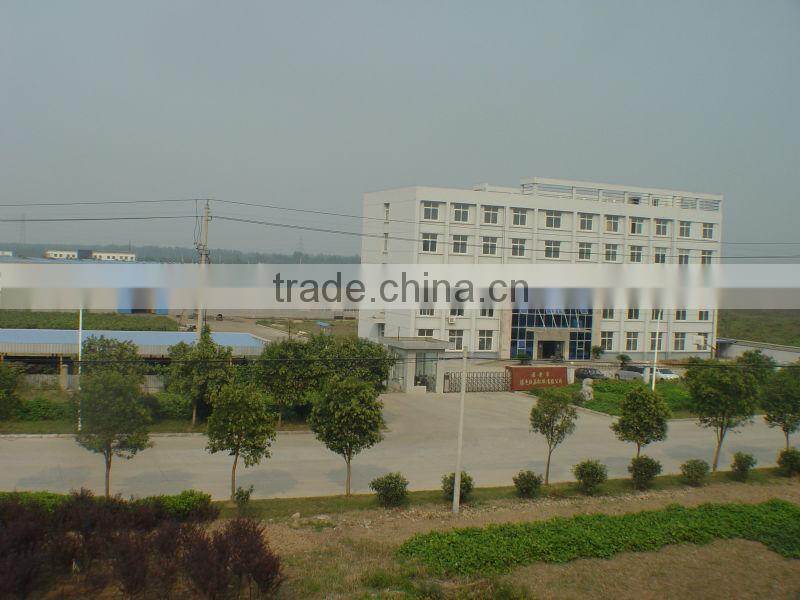

Huaian Shengjie Hydraulic Machinery Co., Ltd., established in 1990, is a professional manufacturer engaged in the research, development, production, sale and service of CBN series single and duplicate gear pumps, CBT series single and duplicate gear pumps, CBFC series single and duplicate gear pumps, BZZ hydraulic steering control units and attachments. We are located in Huaian, with convenient transportation access.
Being dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment including imported machining machines, CNC production lines, high-precision grinding machines and other specialized processing equipment. In addition, we have obtained ISO9001:2008 quality management system authentication and the ISO14001 environmental management system authentication.
Sold well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Japan, Australia and Southeast Asia. We also welcome OEM and ODM projects.
Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can let our customer service center know your sourcing requirements.
1, Q: Are you a factory or trading company?
A: We are a factory.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in HUAI AN city, Jiang Su Province, China, near Shang hai or Nan Jing. You can fly to HUAI AN airport directly.
3. Q: What’s the delivery time of your products?
A: Usually, the delivery time is between 15days to 30days depending on your purchasing quantity.
4.Q: How can I get samples?
A: We are honored to offer you samples. about 3-5 days.
5. Q: How does your factory do regarding quality control.
A: "Quality is priority. Sheng Jie Hydraulic always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001, ISO40000 certification.
CONTACT ME
WE CHAT & WHATSAPP: 008615189695050
SKYPE MICROSOFT NAME: LIVE: Helen_4199
QQ: 252406909
just contact me, I will reply to you as soon as possible.
