Home > Manufacturing & Processing Machinery > Agricultural Machinery > Tiller > For Walking Tractor Power Tiller 10hp

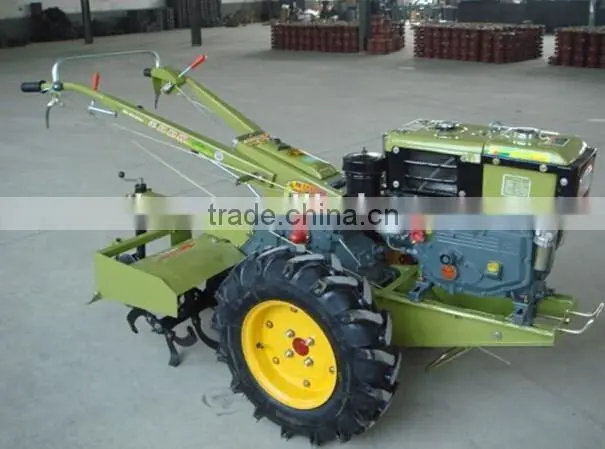

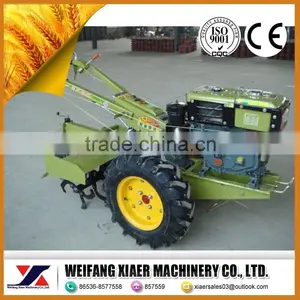

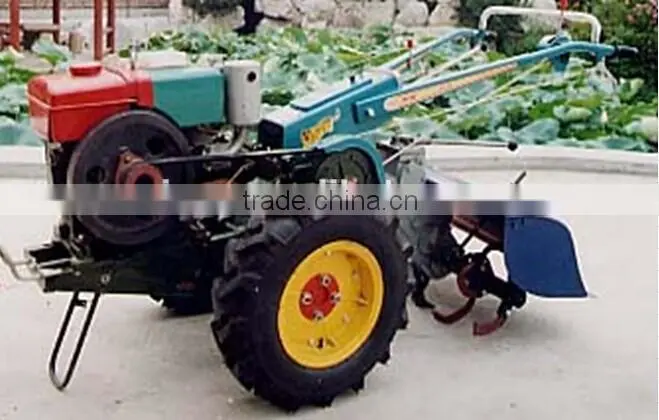

For Walking Tractor Power Tiller 10hp
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
After-sales Service Provided:
Engineers available to service machinery overseas
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
After-sales Service Provided
Engineers available to service machinery overseas
power tiller 10hp
Product Description
| MODEL | TL1WG3.8-50FQ | TL500GY | TL1WG3.8-95FQ | TL1WG4.0-105FQ | ||||||||||
| ENGINE | 168F-1/P, 6.5HP | 170F/P,7HP | 170F/P, 7.0HP | 170F/P, 7.0HP | ||||||||||
| BORE X STROKE | 68 x 54 | 70x56 | 70x56 | 70x56 | ||||||||||
| MAX POWER (Kw/rpm) | 4.8/3600 | 5.15/3600 | 5.15/3600 | 5.15/3600 | ||||||||||
| FUEL CAPACITY (L) | 3.6 or 4.5 | 4.5 | 4.5 | 4.5 | ||||||||||
| FUEL TYPE | Gasoline | Gasoline | Gasoline | Gasoline | ||||||||||
| ENGINE OIL CAPACITY (L) | 0.6 | 0.6 | 0.6 | 0.6 | ||||||||||
| GEARBOX OIL CAPACITY (L) | 0.95 | 0.95 | 0.95 | 2.5 | ||||||||||
| FUEL CONSUMPTION (G/Kw.h) | ≤340 | ≤340 | ≤340 | ≤340 | ||||||||||
| START SYSTEM | Recoil Start | Recoil Start | Recoil Start | Recoil Start | ||||||||||
| WORK WIDTH (mm) | 500-1050 | 500-700 | 900-1050 | 900-1050 | ||||||||||
| WORK DEPTH (mm) | ≥100 | ≥100 | ≥100 | ≥100 | ||||||||||
| GEARS | 2, 1, 0, (-1) | 2, 1, 0, (-1) | 2, 1, 0, (-1) | 2, 1, 0, -1 | ||||||||||
| TRANSMISSION TYPE | Belt Transmission | Belt Transmission | Belt Transmission | Gear Transmission | ||||||||||
| CLUTCH | External Tentioned Clutch | Built-in Clutch | Built-in Clutch | Built-in Clutch | ||||||||||
| PACKING SIZE (mm) | 870 x 440 x 780 | 870 x 440 x 780 | 870 x 440 x 780 | 1000x530x800 | ||||||||||
| PACKING | Hard carton box + inner metal framework | |||||||||||||
| N.W.(kg) | 56 | 70 | 73 | 84 | ||||||||||
| W.W.(kg) | 71 | 91 | 92 | 105 | ||||||||||
| STANDARD CONFIGURATION | 23mm 3pc x 4unit dry-field blades (24pcs 3+1 type), 400-8 tire | 23mm 4pc x 3unit dry-field blades (24pcs 2+1 type), 350-4 tire | 23mm 3pc x 4unit dry-field blades (24pcs 3+1 type), 400-8 tire | 23mm 3pc x 4unit dry-field blades (24pcs 3+1 type), 400-8 tire | ||||||||||
| OPTIONAL CONFIG. | Paddy field blades, anty-tangling blades, ditcher, side plate etc. | |||||||||||||
| BLADES CONNECTIONS | 2+1+1;2+2;3+1+1;3+2 | |||||||||||||
FAQ
1. Q:What's the type of your power ?
A:101B-3,Dongfeng.
2. Q: What's your power range ?
A: We can offer the power rated range from 8 to 22HP.
3. Q:What’s your payment item ?
A: T/T, L/C.
4. Q:What’s your delivery time ?
A: Within 20 days after receiving the deposit.
5. Q:Do you have export experience?
A: Yes, more than10 years. We have exported our products to Ukraine, Russian, Algeria and South Africa and EURO countries.
