Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Wheel Tractor
By wheel
4WD
Usage
Farm Tractor
Brand Name
XIAER
Model Number
XE804,XE904
Place of Origin
China
Specifications

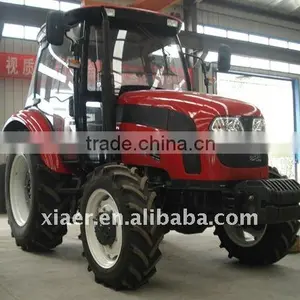

Tractor1.XE804,904 tractor
2. 4wd
Tractor
| Xiaer 804-904 tractors Main Techical Specifications. | ||||
| Model | SH804 | SH904 | ||
| Type | 4WD Wheeled Type | |||
| (mm)Dimensions of Tractor | Length (to front ballast) | 4530 | ||
| Width | 2050 | |||
| Height (to the exhaust vent) | 2510 | |||
| Tread | Front Wheel | 1610 | ||
| Rear Wheel | 1620-2020(Usual 1620) | |||
| Axle Base | 2195/2366 | |||
| Min.Ground Clearance | 379 | |||
| Structure weight (kg) | 3750/3990 | |||
| Ballast weight (kg) |
Front ballast | 250 | ||
| Rear ballast | 170 , 340 , 510 (optional) | |||
| Rated traction force (KN) | 23.2 | 31.2 | ||
| Engine | Model | LR4108 | LR4150ZT55 | |
| Type | Vertical,4-Cylinder,Water Cooled and 4-stroke | |||
| Rated Power(kw) | 58.8 | 66.5 | ||
| Rated speed (r/min) | 2300 | |||
| Fuel | diesel | |||
| Tyre | Front Wheel | 11.2-24 | ||
| Rear Wheel | 16.9-34 | |||
| Clutch | Dual-stage clutch | |||
| Steering | power steering | |||
| Transmission Type | 8+4 or 16+8 with creeper/16+8 with shuttle | |||
| Suspension Type | 3-point links | |||
| PTO | Type and Rev | Semi-independent Type 540/1000 | ||
| Spline Size | F35 Rectangle Spline with 6 teeth | |||
| 1. 16+8 shuttle gear-shift makes gear matching reasonable and agricultural adaptability strong; | ||||
| 2. 150L double down-place fuel tank helps prolong the operation time; | ||||
| 3. Germany-based LUK clutch and Italy-based front drive axle are employed to improve operation reliability; | ||||
| 4. Double fuel tank strong-pressure device with height limitation helps improve lifting force, and height limitation | ||||
| ensures sound operation efficiency and high reliability. | ||||
| .. | ||||
