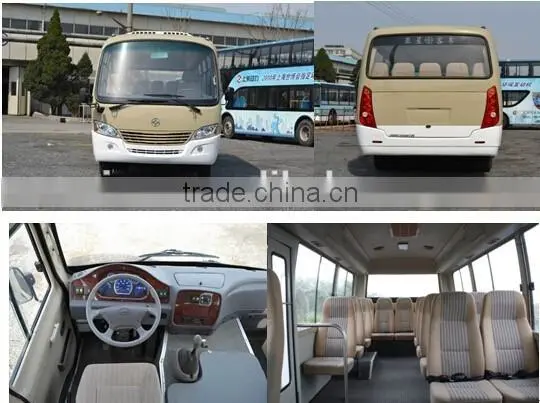

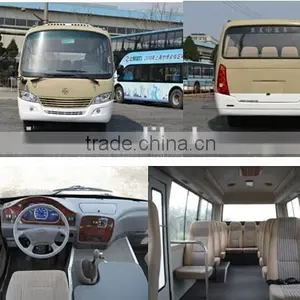

4-wheel drive bus

 XR6608TA Specs (Four-Wheel Drive)

parameter

size

overall dimension (mm):5990*2250*2760(Length*width*height)

wheelbase (mm):3300

weight (kg)

Front /rear axle loading capacity

2700/5000

Curb weight

2100

Max. Gross weight

6600

capacity

Max. Speed(km/h): 100 (with speed limitation)

Seater capacity

18+1 (1+2 seat layout)

Chassis model:EQ6570K4AC1

engine

model:ISB3.9-125E30 (125hp, Euro III)

Rated power(kw/rpm):92KW/2500r/min

max. Torque (Nm/rpm):410N.m/1500r/min

Displacement(L): 4L

clutch

Type: single dry diaphragm spring clutch

Disc diameter(mm) 350

gear box

model:DF5S550

five speed (manual)

suspension

leaf spring suspension

Front and rear:9/11

rear axle

5000

Axle loading capacity: 5000kg

DANA make

rear axle

Loading capacity: 2700kg

DANA make

Tank volume

Volume : 90L

tire

Size: 7.00R16-14R

With spare tire and rack

Braking system

Dual circuit pneumatic drum service brake

Power storage spring parking brake

Steering system

Power steering

Body

Floor

Bamboo glued floor, with welding floor leather

Defroster

Defroster (3500kcal)

Door

Electrical control folding door,driver door

Window

Sliding window

Trimming

Molding trimming

Lighting system

Roof light, step light

Audio &visual system

AM, FM AM,FM radio

Seat

High backrest fixed passenger seat

High backrest adjustable driver seat, all with safe belt

Rear-view mirror

Rod type rear-view mirror

Paint

Local qualified paint

Color

As customer’s request

Others

Clock, sun shade, curtain, driving recorder, rear compartment

Options

Dependent A/C                                                  +USD3000
