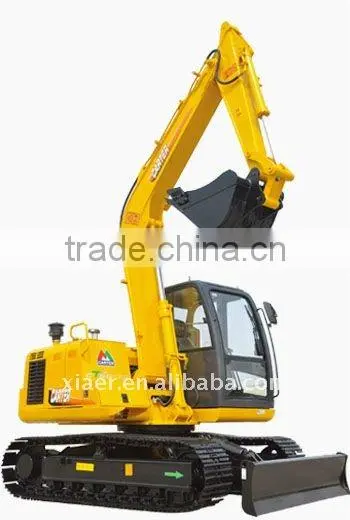

Carter Excavator
SPECIFCATIONS
America made engine CUMMINS B3.3(BC30060)
Power 60KW/2200RPM
In conformity with the EU III emission control regulations, a guarantee of super power
Imported hydraulic system with dual pump and dual circuit, stable work performance, fast speed.
Guarantee for 3 yrs under normal use and maintenance
Imported hydraulic components, Japan made KAWASAKI main pump, Japan made KYB multi-circuit valve, swing motor, walking motor, Japan made or South Korea made gasoline tank
On-line digital monitoring and control system
GPS satellite position and remote diagnose system(optional)
Cold&warm air conditioner supply under different kinds of weather conditions
Light and handy pilot operating system
Steel pedrail
SPECIFCATIONS
Operating weight |
8.300 KG |
Travel speed |
4.6/2.9km/h |
Bucket Capacity |
0.36-0.4m3(SAE) |
Tracking force |
70.8 kn |
Engine power |
60KW |
gradeability |
30°(58%) |
Swing speed |
11RPM |
Bucket digging force |
54.8 kn |
Ground Pressure |
38KPa |
Arm digging force |
46.6 kn |
Dimensions
Boom Length |
3.905 mm |
Arm Length |
1.750 mm |
Upperstructure width |
2.170 mm |
Undercarriage width |
2.100 mm |
Overall Height with cabinet |
2.540 mm |
Rear swing radius |
1.835 mm |
Clearance under counter weight |
785 mm |
Tumbler Distance |
2.200 mm |
Ground clearance |
370 mm |
Overall length for transportation |
6.430 mm |
working range
MAX digging radius |
6.810 mm |
MAX digging radius at ground lever |
6.680 mm |
MAX digging depth |
4.375 mm |
MAX vertical wall digging depth |
3.200 mm |
MAX digging height |
7.310 mm |
MAX dumping height |
4.950 mm |
MAX dozer cutting depth |
430 mm |
MAX dozer lifting height |
310 mm |
