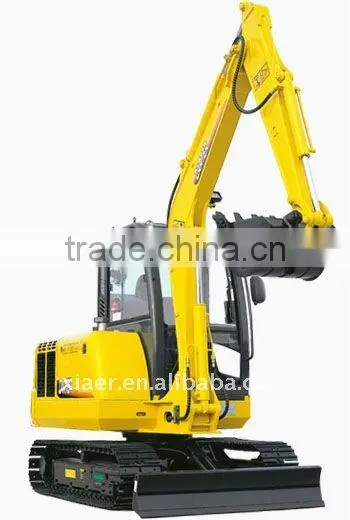

CE Mini Excavator
Operating weight |
3.900 KG |
Travel speed |
4.4/2.7km/h |
Bucket Capacity |
0.14-0.18m3(SAE) |
Tracking force |
34.1kn |
Engine power |
32KW |
gradeability |
30°(58%) |
Swing speed |
11RPM |
Bucket digging force |
23.7 kn |
Ground Pressure |
33KPa |
Arm digging force |
18.5 kn |
Dimensions
Boom Length |
2.650 mm |
Arm Length |
1.600 mm |
Upperstructure width |
1.500 mm |
Undercarriage width |
1.630 mm |
Overall Height with cabinet |
2.455 mm |
Rear swing radius |
1.600 mm |
Clearance under counter weight |
585 mm |
Tumbler Distance |
1.710 mm |
Ground clearance |
350 mm |
Overall length for transportation |
5.560 mm |
working range
MAX digging radius |
5.720 mm |
MAX digging radius at ground lever |
5.610 mm |
MAX digging depth |
3.700 mm |
MAX vertical wall digging depth |
3.200 mm |
MAX digging height |
5.050 mm |
MAX dumping height |
3.500 mm |
MAX dozer cutting depth |
380 mm |
MAX dozer lifting height |
255 mm |
