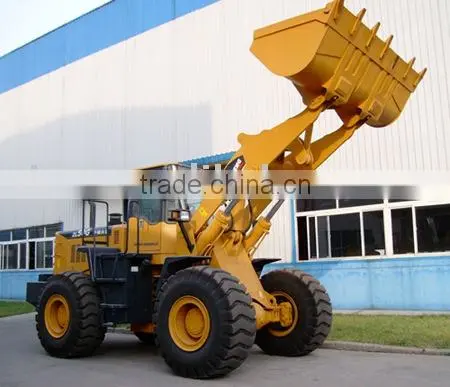

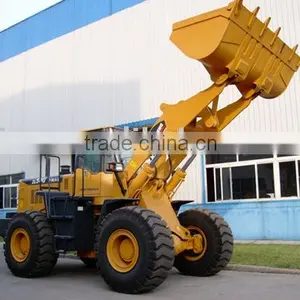

Wheel Loader

Performance

1

Rted load

5000kg

2

Overall weight

17100kg

3

Rated bucket capacity

3m³

4

Maximum tractive force

152KN

5

Maximum breakout force

≥170KN

6

Maximum grade ability

30

7

Maximum dump height

3150mm

8

Maximum dump reach

1250mm

9

Moverall dimension (L×W×H)

7920×3050×3400mm

10

Minimum turning radius

6640mm

Engine

11

Model

 Weichai Steyr WD615G.220

12

Type

lnline  water cooling dry cylinder  injection

13

No. of cylinder-bore/stroke

6126×130mm

14

Rated power

162kw--2400r/min

15

Maximum torque

860N.m

16

Min fuel-consume ratio

≤215g/kw.h

Transmission system

17

Torque converter

YJ375

18

Gearbox mode

Power shift normally engaged straight gear

19

Gear shift

4 forward shift  4reverse shift

20

Maximum speed

38km/h

Drive axles

21

Main reducing spiral

Bevel gear grade 1reduction

22

Decelerating mode

planetary reduction,grade 1

23

Wheel base (mm)

3200mm

24

Wheel tread

2250mm

25

Minimum ground clearance

450mm

 Hydraulic system

26

System working pressure

18MPa

27

Boom lifting time

5.95±0.2s

28

Total time

10.95±0.5s

29

Fuel tank capacity

300L

30

Function of leveling automatically

 yes

Brake system

31

Service brake

air over hydraulic disc brake on 4 wheels

32

Parking brake

Manual parking brake

Tyre

33

Type specification

23.5-25

34

Front tyre pressure

0.4Mpa

35

Rear tyre pressure

0.35Mpa
