Sugarcane Combine Harvester

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Combine Harvester

Usage:

Other, sugarcane harvester

Weifang Xiaer Imp. & Exp. Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Combine Harvester

Usage Other, sugarcane harvester

Place of Origin China

Certificate Other, ISO

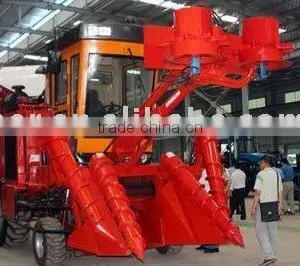

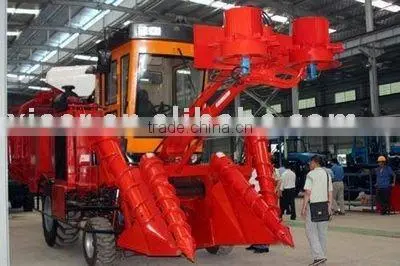

Sugarcane Combine Harvester

Designation		Parameter
Model		HSSZ-1800
Type		Whole-stalk harvesting,
		conveying, leaf peeling-off,
		separating sugar cane and leaves
Operator		Single-person seat driving
		operation
Mating Power	Engine Model	YC6A108Z-T11
	Power(kW)/	130/2400
	Speed(r/min)
Outline Dimension	Harvesting	750019003100
(LWH)(mm)	Condition
Traveling Condition		700019003100
Wheel Tread(mm)	Front Wheel	1440
	Rear Wheel	1375
Wheel Base(mm)		2200
Tyre Size	Front Wheel	7.5-16/2
/Quantity(pc.)	Rear Wheel	13.6-28/2
Vehicle Clearance Circle(m)		12.5
Total Weight(kg)		8000
Mininum Ground Clearance(mm)		230
Cutter Lifting angle		18
adjusting range(Degree)
Applicable row spacing(m)		≥1.2
Number of rows harvested(Row)		1
Gearbox Steps		5-step forward (or stepless speed adjusting gear)
		1-step Back-up
Driving type of traveling		Hydraulic rear wheel drive

Item	Index
	harvesting	harvesting
	with leaves	without leaves
Qualification of	≥95.0	≥95.0
cutting height(%)
Ratoon broken rate (%)	≤12.0	≤12.0
Impurity rate of single sugar cane (weight %)	≤3.0	≤5.0
Sugar cane leaves peeling-off rate	≥97.0	≥90.0
(ratio of leaves removed and total leaves %)
Sugar cane leaves separating rate	≥90.0	≥50.0
(weight ratio of leaves separated and total leaves, %)
The total loss rate (%)	≤5.0	≤5.9
Cane stalk qualification rate (%)	≥95.0	≥95.0
Net working hour	≥18-30	≥12-25
productivity(ton/hour)
Net working fuel consumption rate	1	1.2
(ton sugarcane/liter)
