WHEELED YARDING MACHINE
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Other
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Other
Power Type
Diesel
Place of Origin
Shandong, China
Brand Name
FB
Model Number
J-110

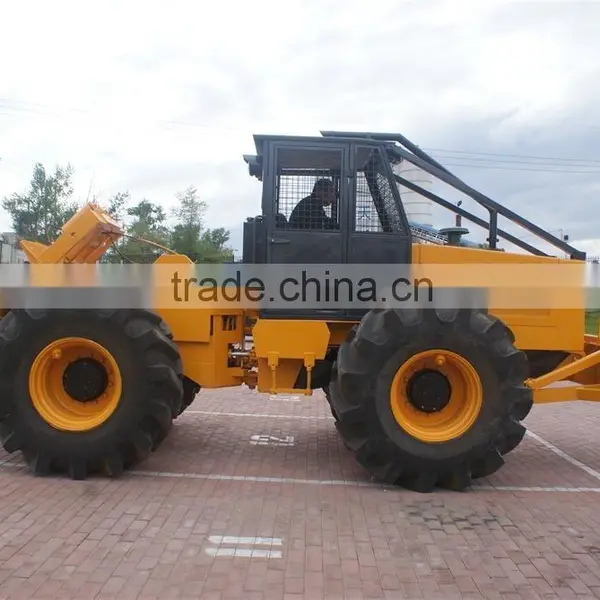

WHEELED YARDING MACHINE
| Model | J-110 | |
| Tech. specifications of complete unit | ||
| Type | 4*4,Articulated frame | |
| Max Qty. of wood-skidding | Big end of log forward | 4 |
| (operations in winter)(m3) | Small end of log forward | 6 |
| Overall dimension(L*W*H)(mm) | 6040*2600*2813 | |
| Wheel tread(mm) | 1850 | |
| Wheel base(mm) | 2805 | |
| Ground clearance(mm) | 528 | |
| Structure weight(kg) | 8400 | |
| Suitable working slope | Longitudinal≤20°Crosswise≤15° | |
| Theoretical speed ranges(km/h) | 2.81~41.36 | |
| Rated tractive force(KN) | 33 | |
| Max tractive force(KN) | 46.2 | |
| Engine | ||
| Model | LR6108T66 | |
| Rated power | 73.5KW(100HP) | |
| Displacement | 6870CC | |
| Max.Torque(N.m) | 390/1650rpm | |
| Rated revolutions(r/min) | 2300 | |
| Fuel consumption(g/kw.h) | ≤228.5 | |
| Working device | ||
| Drum revolutions of the winch(r/min) | 51~373 | |
| Max winching force of the winch(KN) | 60 | |
| Dia. Of the steel cable of the winch(mm) | 17 | |
| Dimensions of the dozer blade(H*W)(mm) | 440*1960 | |
