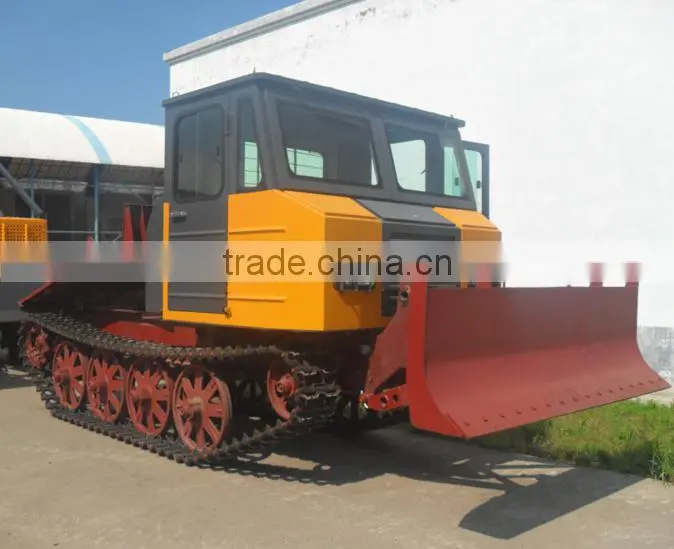

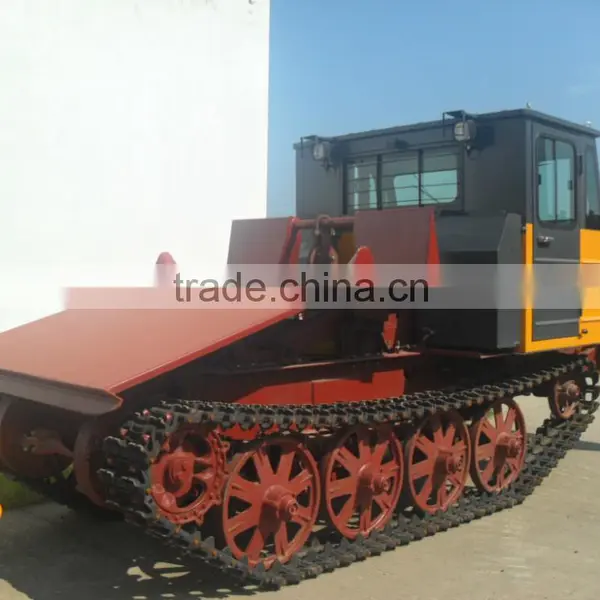

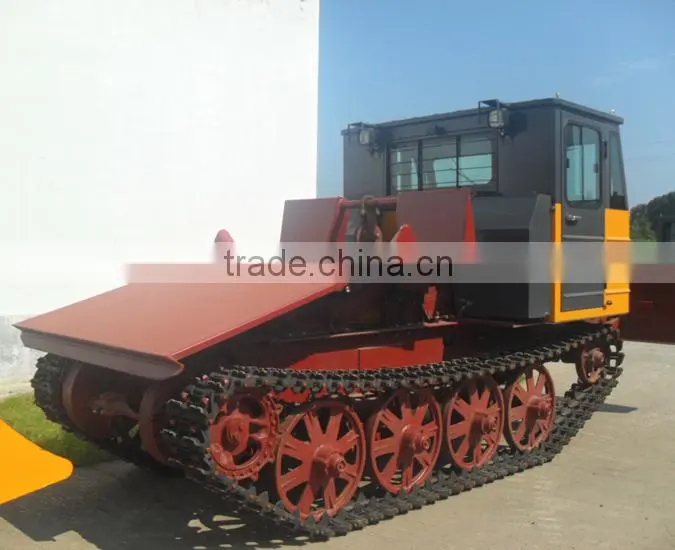

YARDING MACHINE
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Other
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Other
Power Type
Diesel
Place of Origin
Shandong, China
Brand Name
FB
Model Number
JC-65
YARDING MACHINE
| Model | JC-65 | |
| Tech. specifications of complete unit | ||
| Max Qty. of wood-skidding | Big end of log forward | 6 |
| (operations in winter)(m3) | Small end of log forward | 8 |
| Overall dimension(L*W*H)(mm) | 5500*2250*2600 | |
| Wheel tread(mm) | 2040 | |
| Wheel base(mm) | 1480 | |
| Ground clearance(mm) | 510 | |
| Trsnsmission | F5+R1 | |
| Speed(km/h) | 1th:2.8,2th:3.77,3th:4.93,4th:7.6,5th:12.45,R:2.6 | |
| Structure weight(kg) | 7500 | |
| Suitable working slope | 25° | |
| Theoretical speed ranges(km/h) | 2.8~12.45 | |
| Rated tractive force(KN) | 46 | |
| Max tractive force(KN) | 46.2 | |
| Steel Track width(Cm) | 33 | |
| Engine | ||
| Model | LR4108T66A | |
| Rated power | 47.8KW(65HP) | |
| Rated revolutions(r/min) | 1900 | |
| Working device | ||
| Length of the steel cable(m) | 40 | |
| Dia. Of the steel cable of the winch(mm) | 17 | |
| Max winching force of the winch(KN) | 56.85 | |
| Drum revolutions of the winch(r/min) | 35.5 / 33 | |
| Dimensions of the dozer blade(H*W)(mm) | 830*2250 | |
