Specifications
Computer-controlled multi-functional spring wire making machineProcessing wire diameter range :(0.2- 2.5 mm); wire: 0.5-3.5 mm

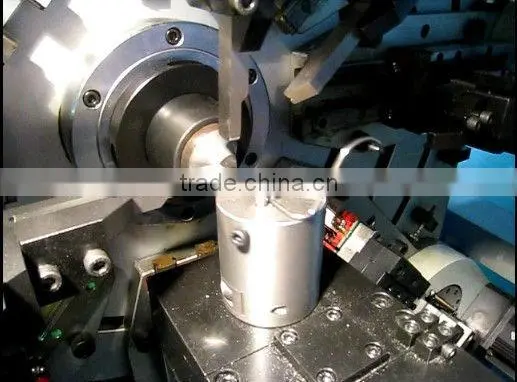

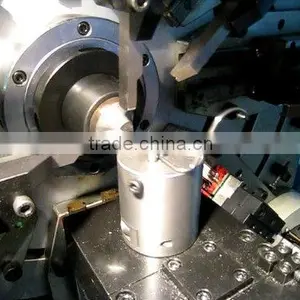

Computer-controlled Multi-functional Spring Wire Making Machine
1. Easy to operate, accurate positioning, computer can control three to eight servo motor, all motor can be synchronous or run alone;
2. A precision testing tracking system, can automatically stop if there is any unqualified products
3. According to the work on the screen, can at any time to modify product outer diameter of the Angle, etc;
4. Automatic mechanical automatic lubricating oil supply design, to ensure that the equipment run for a long time;
5. Automatic stop when wireless, disconnection, tangled lines design and line automatic acceleration, make production easier and effective;
6. Suitable for producing double twist spring, straight spring, pagoda spring, tension spring, rectangular spring, wire forming, steel volute spring, spring, and various fancy spring, complex and difficult heterotypic reed.
Technical parameters:
Processing wire diameter range :(0.2- 2.5 mm); (wire: 0.5-3.5 mm)
Wire feeding instruction value: ±0.01~±9999.99
Maximun feed speed: 0~110m/min
CAM instruction value: ±0.1°~±359.9°
CAM transmission speed: 0~100RPM
Wire feeding servo motor: 2.7KW
CAM servo motor: 2.7KW
Servo motor core: 1KW
Turn the servo motor: 1KW,1KW
Power: 380V ±10%V50HZ
Size: 1055X560X1540mm
Weight: 880Kg
