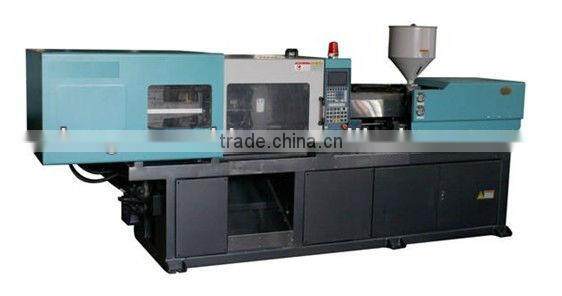

Plastic Hanger Molding Machine|Plastic Hanger Forming Machine

DESCRIPTION

LGTF-1280

INTERNATIONAL SIZE RATING

A

B

C

NJECTION                           UNIT

SCREW DIAMETER                   mm

38

42

45

SEREW L/D RATIO                    L/D

23.1

22

20.9

SHOT SIZE(THEORETICAL)          cm³

200

246

280

INJECTION WEIGHT(PS)             g

180

220

250

INJECTION RAZE                     G/sec

105

125

128

PLASTICIZING CAPACITY              g/s

22

25

27

INJECTION PRESSURE                MPa

171

149

131

SCREW SPEED                       Rpm

220

CLAMPING                          UNIT

CLAMP TONNAGE                     kn

1280

TOGGLE STROKE                      mm

360

SPACE BETWEEN TIE BARS             mm

415×375

MAX.MOLD HEIGHT                   mm

420

MIN.MOLD HEIGHT                    mm

150

EJECTOR STROKE                     mm

120

EJECTOR TONNAGE                    kn

40

OTHERS                             UNIT

MAX.PUMP PRESSURE                  mpa

16

PIMP MOTOR POWER                    kw

11

HEATER POWRE                        kw

6.2

MACHINE DIMENSIONS(L*W*H) m

4.35×1.32×1.81

MACHINE WEIGHT(APPROXIMAT)      t

3.2

DESCRIPTION

LGTF-1500

INTERNATIONAL SIZE RATING

A

B

C

NJECTION                           UNIT

SCREW DIAMETER                   mm

42

45

48

SEREW L/D RATIO                    L/D

22.3

21

19.1

SHOT SIZE(THEORETICAL)          cm³

276

317

360

INJECTION WEIGHT(PS)             g

249

286

325

INJECTION RAZE                     G/sec

125

130

142

 PLASTICIZING CAPACITY              g/s

18

22

27

INJECTION PRESSURE                MPa

183

159

140

SCREW SPEED                       Rpm

180

 CLAMPING                          UNIT

CLAMP TONNAGE                     kn

1500

TOGGLE STROKE                      mm

360

SPACE BETWEEN TIE BARS             mm

420×375
