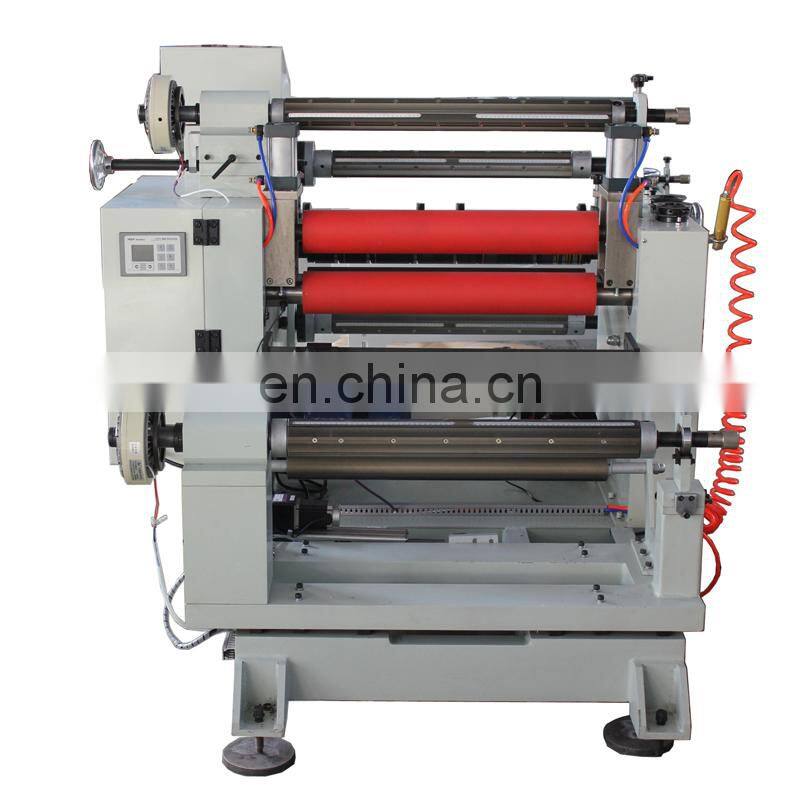

Slitting and Rewinding Machine for Pet /PVC/ Film / Paper
Functional characteristics:
1.High precision slitting,With 3 inch unwind and rewind air shaft.
2.Tension is controlled by magnetic powder clutch.
3.Frequency motor control speed.
4.The rubber roller is lifted up and down by air cylinder,It has the laminating and pulling material function.
5.With standard 8 rotary slitting blade,the slitting width can be adjustable,and the minimum slitting width is 25mm.
6.Automatic photoelectric rectification and meter count.
7.2 rewind shaft are controlled by magnetic powder tension independently,It can rewind at the same time and rewind separately.
8.With air blower for trimming material.
Purpose:
It is applicable for slitting flexible materials,such as plastic,paper,foam,film,protective film,OPP,PE,PVC,PET,etc.This machine is widely used in the industries such as printing,packing,electronics,leather,clothes making,plastic,etc.
Main Technical Parameters:
| Model | DP-650 | DP-1300 | DP-1600 |
| Max Feeding Width | 650mm | 1300mm | 1600mm |
| Power | 2.2KW | 6KW | 6KW |
| Slitting Speed | 80m/min | 80m/min | 80m/min |
| Minimum slitting width | 25mm | 25mm | 25mm |
| Rewinding Diameter | 450mm | 450mm | 450mm |
| Unwinding Diameter | 600mm | 600mm | 800mm |
| Precision | ± 0.1mm | ± 0.1mm | ± 0.1mm |
| Voltage | 380V 50HZ | 380V 50HZ | 380V 50HZ |
Click below picture to check our 1300mm machine:
