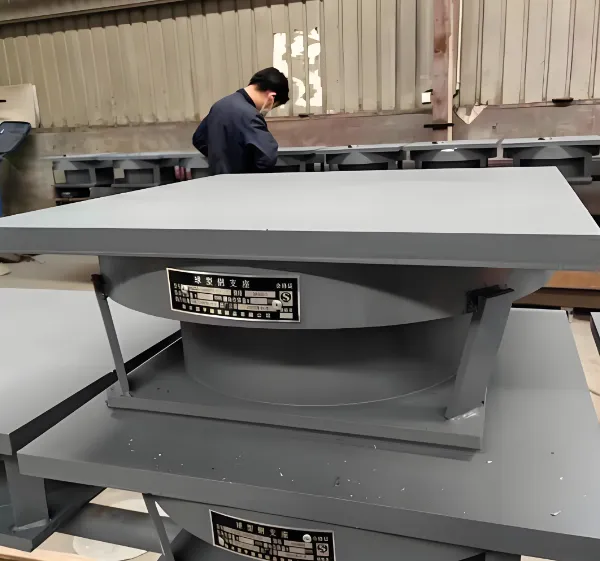

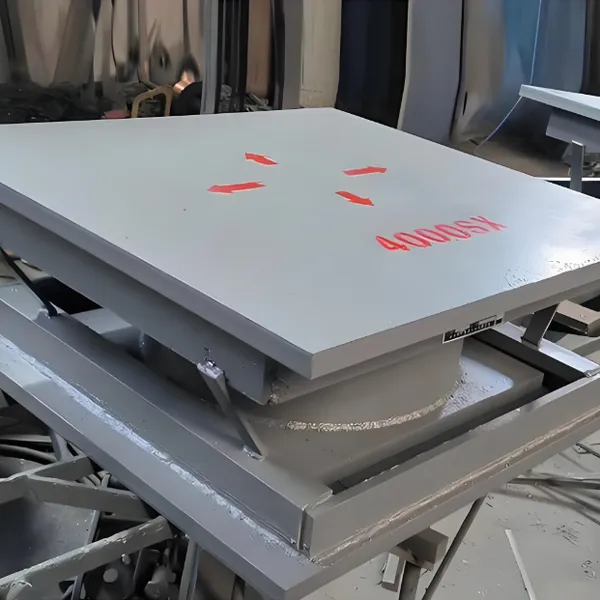

Hengshui Ruibin New Materials LLC, a professional manufacturer established in 2019 with a factory size of 1,000-3,000 square meters and over 100 skilled employees, proudly presents our Prefabricated Stainless Steel Spherical Bridge Pot Bearing for Seismic Isolation. This advanced bearing is engineered to provide superior load transfer and earthquake resilience for modern bridge structures. Combining high-grade stainless steel construction with a precision spherical design, it offers exceptional durability, corrosion resistance, and reliable performance under extreme conditions. Our bearing is an ideal solution for infrastructure projects demanding long-term stability and seismic safety.

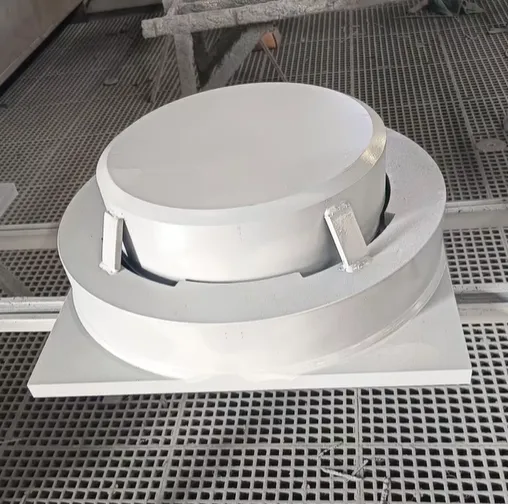

The spherical pot bearing utilizes a unique concave-convex spherical surface that allows multi-directional rotation and translation, effectively accommodating thermal expansion, contraction, and seismic movements. The stainless steel material ensures excellent resistance to weathering, chemicals, and fatigue, reducing maintenance needs over the structure's lifespan. Prefabricated to exact specifications, our bearing enables quick and precise installation on site, saving time and labor costs.
Key Features & Technical Specifications
- Material: Premium stainless steel (304/316 grade available) – excellent corrosion resistance in marine and industrial environments.
- Spherical Design: Enables rotation capacity up to ±0.05 rad and translation movement up to ±100 mm (customizable).
- Seismic Isolation: Energy dissipation through friction and sliding mechanisms, reducing seismic forces transmitted to the bridge pier.
- Load Capacity: Available from 500 kN to 50,000 kN (or custom engineered per project).
- Temperature Range: -40°C to +60°C, suitable for diverse climates.
- Service Life: Designed for 50+ years with minimal maintenance.
- Prefabrication: Ready-to-install units with factory quality control, reducing on-site assembly errors.
- Customization: Dimensions, load rating, and connection details can be tailored to specific bridge designs.
| Parameter | Typical Value | Remarks |
|---|---|---|
| Vertical Load Capacity | 500 – 50,000 kN | Customizable |
| Horizontal Force Capacity | 10% – 20% of vertical load | Depends on design |
| Rotation Angle | ±0.02 – ±0.05 rad | Available upon request |
| Translation Movement | ±50 – ±100 mm | Customizable |
| Operating Temperature | -40°C to +60°C | Wider range optional |
| Stainless Steel Grade | 304 / 316 / 316L | Per customer requirement |
Advantages for Your Project: Our spherical pot bearing significantly reduces the seismic response of bridges, protecting both the superstructure and substructure. The stainless steel construction eliminates the need for frequent painting or coating, lowering lifecycle costs. Prefabrication ensures consistent quality and faster installation, which is critical for large-scale infrastructure projects. Additionally, the bearing's ability to accommodate multi-directional movements minimizes stress on the bridge deck and piers, extending the overall service life.
Why Choose Hengshui Ruibin New Materials LLC?
As a dedicated manufacturer with an annual export value of US$2.5–5 million, we have shipped our products to diverse markets including North America, South America, Eastern Europe, Southeast Asia, Africa, and more. Our experienced team of 101–200 employees ensures rigorous quality control at every stage – from raw material selection to final assembly. We offer flexible shipping options via Port of Tianjin or Port of Qingdao, with professional packaging to prevent damage during transit. Our bearings have been tested according to industry standards, and we provide comprehensive technical support to assist with selection, installation, and maintenance.
Frequently Asked Questions (FAQ)
- Q1: What is the typical lead time for your prefabricated bearings? A: Lead time depends on quantity and customization. Standard sizes ship in 2–3 weeks; custom orders typically take 4–6 weeks.
- Q2: Can the bearing be used for both new bridges and retrofitting? A: Yes, our spherical pot bearing is designed for both new construction and seismic retrofitting of existing bridges. We can adapt connection details to match existing structures.
- Q3: What maintenance is required after installation? A: Thanks to the stainless steel material and sealed design, maintenance is minimal. Periodic inspection every 5–10 years is recommended to check for any debris or damage.
- Q4: Do you provide load test reports? A: Yes, we provide factory test certificates for each batch, including load capacity and rotation tests. Third-party testing can be arranged upon request.
- Q5: How do you ensure the bearing resists corrosion? A: Our bearings are made from high-grade stainless steel (304/316) and optionally with additional protective coatings. The sealing system also prevents ingress of moisture and contaminants.
- Q6: What is the maximum span length this bearing can support? A: The bearing capacity is independent of span length; it is designed based on the vertical load and movement requirements. We can engineer solutions for any span length.
- Q7: Can you customize the mounting plate dimensions? A: Absolutely. We offer fully customizable mounting plates, anchor bolt patterns, and overall dimensions to match your bridge design.
- Q8: Do you offer installation supervision? A: Yes, we can provide on-site technical guidance or installation manuals. Our engineers are available for remote support as well.
Contact us today to discuss your project requirements and receive a competitive quotation. With our proven track record and global reach, Hengshui Ruibin New Materials LLC is your reliable partner for seismic isolation solutions.
