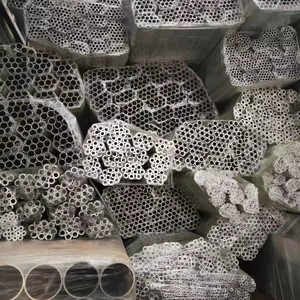

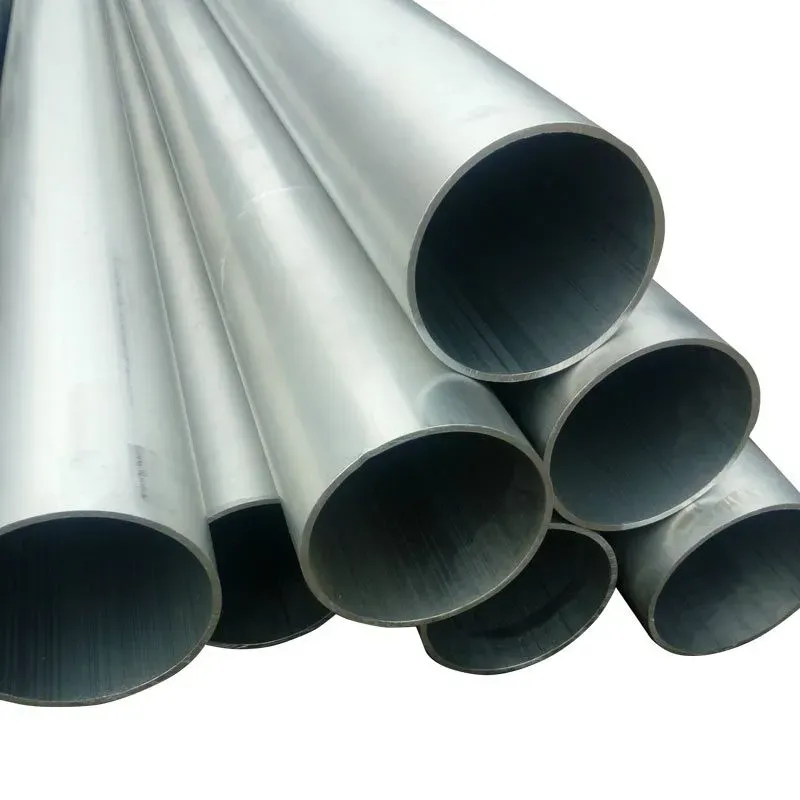

Help CenterCustom Cut 6063 Aluminum Tube 20mm-100mm OD With End Caps and Free Technical Support
Product Spotlights
Related Products
-
3003 Aluminum Tube 12.7mm OD 0.89mm Wall Heat Exchanger Coil Tubing ASTM B221NegotiableMOQ: 1 Ton -
6060 Aluminum Tube 40mm x 40mm Square Hollow Section 2mm Wall Structural ProfileNegotiableMOQ: 1 Ton
-
2024-T3 Aluminum Seamless Tube 1 Inch OD 0.065 Wall Aerospace Grade Alloy TubingNegotiableMOQ: 1 Ton
-
Custom Cut Aluminum Tube 6061 T6 2m Length With 5-7 Days DeliveryNegotiableMOQ: 1 Ton
-
Aluminum Tube 6061 T6 With Mill Test Report and 1 Year Warranty SupplyNegotiableMOQ: 1 Ton
As a trusted manufacturer from Hemaokang Steel (Shandong) Co., Ltd. — established in 2025 with an annual export value exceeding US$50 million and a dedicated team of 51–100 employees — we are proud to offer our Custom Cut 6063 Aluminum Tube 20mm-100mm OD with End Caps and Free Technical Support. This product combines the excellent extrudability and corrosion resistance of 6063 aluminum alloy with the convenience of precision cutting and protective end caps, ensuring your projects get the exact dimensions and finish they need. Our free technical support team is always ready to assist you in selecting the right specifications, making your procurement process seamless and efficient.
Whether you are in construction, automotive, furniture manufacturing, or solar energy systems, our 6063 aluminum tubes deliver consistent quality and performance. With our ISO9001-certified production processes, you can rely on dimensional accuracy and surface consistency for every order.
Key Features & Benefits
- Precision Custom Cutting: Tubes are cut to your exact length requirements — from 20mm to 100mm outer diameter, with tolerances as tight as ±0.5mm. No more waste or secondary processing.
- High-Quality 6063 Aluminum Alloy: Known for excellent weldability, formability, and corrosion resistance, ideal for both indoor and outdoor applications.
- Included End Caps: Each tube comes with matching plastic or aluminum end caps to protect the tube ends during transport and storage, and to provide a clean finished look.
- Free Technical Support: Our engineering team provides free advice on material selection, wall thickness, surface treatment, and structural design — helping you optimize your project.
- Surface Finish Options: Choose from mill finish, anodized (silver, black, or custom colors), or powder coating for enhanced aesthetics and durability.
- Versatile Wall Thickness: Available from 0.5mm to 5mm, customizable based on your load-bearing and weight requirements.
- Eco-Friendly & Recyclable: 6063 aluminum is 100% recyclable, supporting your sustainability goals.
Technical Specifications
| Parameter | Value / Range |
|---|---|
| Material | 6063 Aluminum Alloy (T5/T6 temper available) |
| Outer Diameter | 20mm, 25mm, 30mm, 40mm, 50mm, 60mm, 70mm, 80mm, 90mm, 100mm (custom sizes upon request) |
| Wall Thickness | 0.5mm – 5.0mm (customizable) |
| Length Tolerance | ±0.5mm (standard), ±0.2mm (precision option) |
| End Caps | Plastic (PE) or Aluminum; color: black, white, or custom |
| Surface Treatment | Mill finish, Anodized (silver, black, gold), Powder coating (any RAL color) |
| Tensile Strength | ≥ 150 MPa (T5) / ≥ 205 MPa (T6) |
| Certification | ISO9001:2015 |
Why Choose Hemaokang Steel for Your Aluminum Tube Needs?
- Reliable Supply Chain: With an annual export value of US$50 million–US$100 million, we have the capacity to handle large-volume orders with consistent quality.
- Global Reach: Our products are exported to North America, South America, Europe, Southeast Asia, Africa, Oceania, the Middle East, and more — we understand international shipping and packaging requirements.
- Professional Team: 51–100 experienced employees, including engineers and quality control specialists, ensure every tube meets your specifications.
- Free Technical Support: From design to installation, our experts provide guidance via email, phone, or video call — no extra charge.
- Fast Port of Shipment: All orders are shipped from Qingdao Port, one of China’s busiest ports, ensuring timely delivery worldwide.
Frequently Asked Questions (FAQ)
Q1: What is the minimum order quantity for custom cut tubes?
A: There is no strict MOQ for standard sizes. We accept small orders starting from 10 pieces for custom cut, and larger quantities enjoy better pricing. Contact our sales team for a quote.
Q2: Can I get a sample before placing a bulk order?
A: Yes, we offer free samples (shipping cost is borne by the buyer) for standard sizes. Custom samples can be produced at a nominal fee, which will be deducted from your first bulk order.
Q3: How long does the custom cutting and delivery take?
A: For standard sizes and simple cuts, production takes 3–5 working days. For large orders or special surface treatments, lead time is 7–15 working days. Shipping time depends on your destination and chosen method (sea, air, or express).
Q4: Are the end caps removable? Can I order tubes without caps?
A: Yes, the end caps are removable and are included by default. If you prefer tubes without caps, please indicate in your order, and we can omit them.
Q5: What surface treatments are available for outdoor use?
A: For outdoor applications, we recommend anodized (at least 10 microns) or powder coated finish for maximum UV and corrosion resistance. Both are available in various colors.
Q6: Do you provide technical drawings or CAD files?
A: Yes, our free technical support includes assistance with 2D and 3D drawings. We can also provide mechanical properties data and load-bearing calculations upon request.
Q7: Can I get tubes with a specific wall thickness not listed?
A: Absolutely. We can produce custom wall thicknesses between 0.5mm and 5mm. Please provide your requirements, and our engineers will confirm feasibility.
Q8: What payment terms do you accept?
A: We accept T/T (bank transfer), L/C (Letter of Credit), and other common terms. For new customers, 30% deposit and 70% balance before shipment is typical. Long-term partners may enjoy more flexible terms.
Trust Hemaokang Steel — Your Reliable Partner for Aluminum Extrusion Solutions
With our ISO9001-certified production, extensive export experience, and commitment to free technical support, we are confident that our Custom Cut 6063 Aluminum Tube will meet and exceed your expectations. Contact us today to discuss your project requirements or request a quotation. Let’s build something great together.
