Hengshui Ruibin New Materials LLC, a leading manufacturer established in 2019 with a 1,000–3,000 m² factory and a team of 101–200 experienced professionals, proudly presents our premium FRP Pultruded Grating featuring a 1" x 4" rectangular mesh, 1.5" depth, 40% open area, and self-extinguishing properties per UL 94. This product is engineered to deliver exceptional durability, corrosion resistance, and safety for demanding industrial environments. With an annual export value of US$2.5–5 million, we serve global markets including North America, Europe, and Southeast Asia, ensuring consistent quality and timely delivery.
Our FRP pultruded grating is manufactured using a continuous pultrusion process that combines high-strength fiberglass with premium resin systems, resulting in a lightweight yet robust structure. The 1" x 4" rectangular mesh design provides excellent load distribution, while the 1.5" depth offers sufficient stiffness for heavy-duty applications. The 40% open area ensures efficient drainage and ventilation, reducing slip hazards and accumulation of debris. The self-extinguishing characteristic (UL 94) makes it a safe choice for environments where fire safety is critical.
Key Features & Benefits
- Corrosion Resistance: Ideal for chemical plants, wastewater treatment, and marine environments where metal grating would rust.
- Lightweight & High Strength: Up to 75% lighter than steel, yet offers comparable strength, reducing installation costs and structural load.
- Fire Safety: Self-extinguishing per UL 94 – no flame spread, minimal smoke generation.
- Low Maintenance: Non-conductive, non-magnetic, and resistant to UV degradation (with optional coating).
- Customizable: Available in various colors, surface finishes (grit top for slip resistance), and panel sizes.
Technical Specifications
| Property | Value |
| Mesh Size | 1" x 4" (25.4 x 101.6 mm) |
| Depth | 1.5" (38.1 mm) |
| Open Area | 40% |
| Fire Rating | Self-Extinguishing per UL 94 |
| Resin System | Polyester, Vinyl Ester, or Phenolic (optional) |
| Standard Panel Size | 4' x 12' (custom sizes available) |
| Load Capacity | Varies by span; consult our engineering team |
Applications
- Industrial walkways, platforms, and stair treads
- Drainage covers and trench gratings
- Chemical processing and petrochemical facilities
- Water and wastewater treatment plants
- Offshore and marine structures
- Food processing plants (hygienic, non-porous)
At Hengshui Ruibin, we adhere to strict quality control under ISO9001 and ISO9000 certifications. Our factory located in Hengshui, Hebei, China, is equipped with advanced pultrusion lines and testing equipment. We have shipped over 500,000 square feet of grating to satisfied customers across 30 countries. Our team of 101–200 employees ensures every order is handled with care, from design to packaging.
Why choose Hengshui Ruibin? We offer competitive pricing, flexible customization, and reliable lead times. Our export ports (Tianjin and Qingdao) provide efficient logistics. Whether you need a standard panel or a custom solution, we are ready to support your project with technical expertise and after-sales service.
Frequently Asked Questions (FAQ)
- Q: What is the weight of this grating? A: Approximately 4.5–5.5 lb/ft² depending on resin type and panel size. Exact weight can be provided upon request.
- Q: Can this grating be used in outdoor environments? A: Yes, the standard resin offers UV resistance, and an optional UV coating is available for extended outdoor life.
- Q: Is the grating slip-resistant? A: The standard smooth surface provides moderate slip resistance. For enhanced safety, we recommend the grit-top surface option.
- Q: What is the maximum span for this grating? A: Maximum recommended span is typically 24–30 inches for pedestrian loads, but this depends on load requirements. Please consult our load table.
- Q: Do you provide custom sizes? A: Yes, we can cut panels to your exact dimensions. Custom shapes and cutouts are also available.
- Q: How is the grating shipped? A: Panels are bundled and packed on pallets, secured with straps. For small orders, we use cardboard protection.
- Q: What is the lead time? A: Standard sizes ship within 7–10 working days. Custom orders require 15–20 working days, depending on complexity.

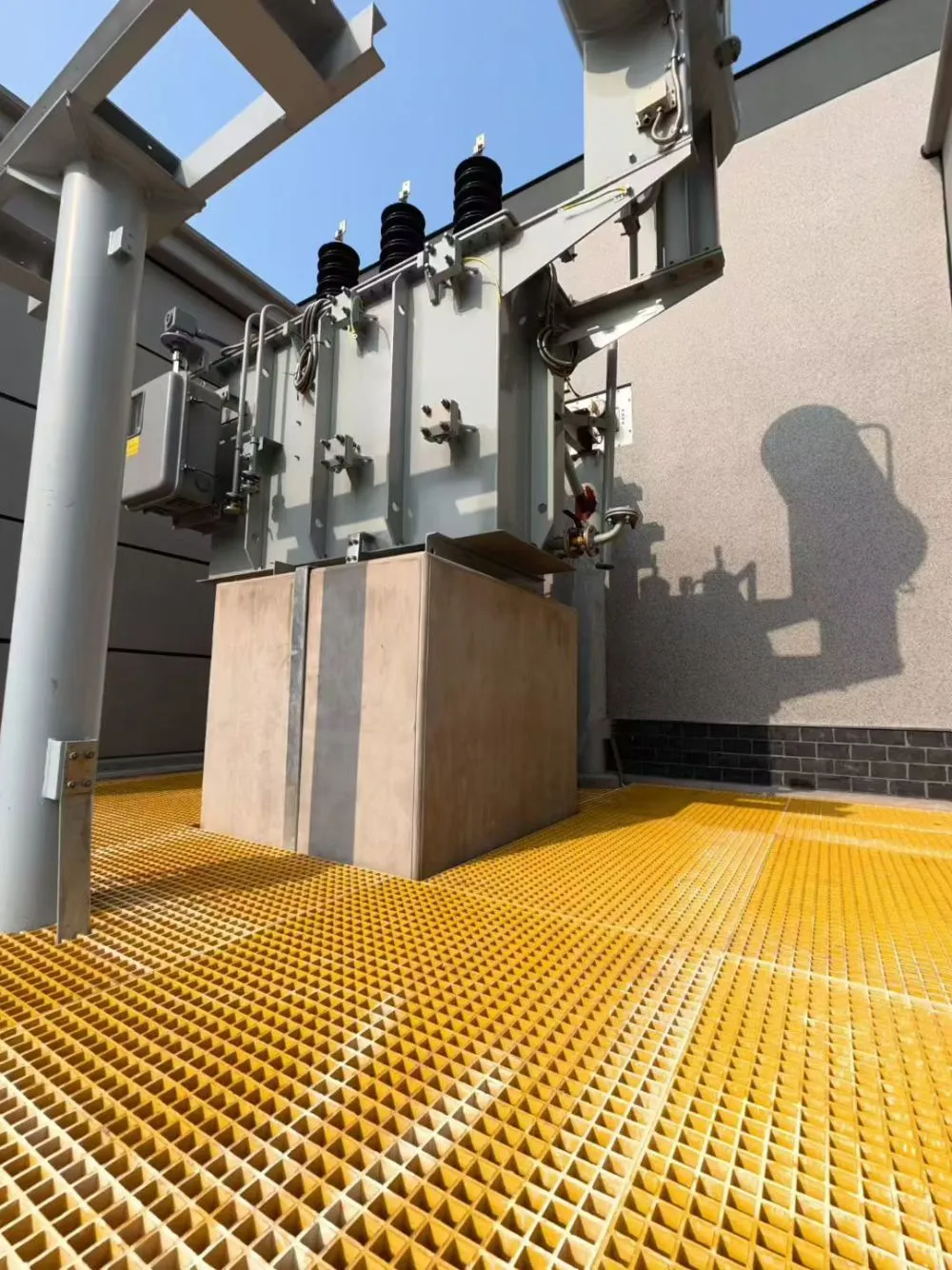

- Q: Is the grating conductive? A: FRP is non-conductive, making it safe near electrical equipment. For antistatic requirements, a conductive grade can be engineered.
Contact us today for a quote or technical drawings. Our sales team is available to assist with product selection, load calculations, and installation guidance. Trust Hengshui Ruibin New Materials LLC – your reliable partner in FRP grating solutions.
