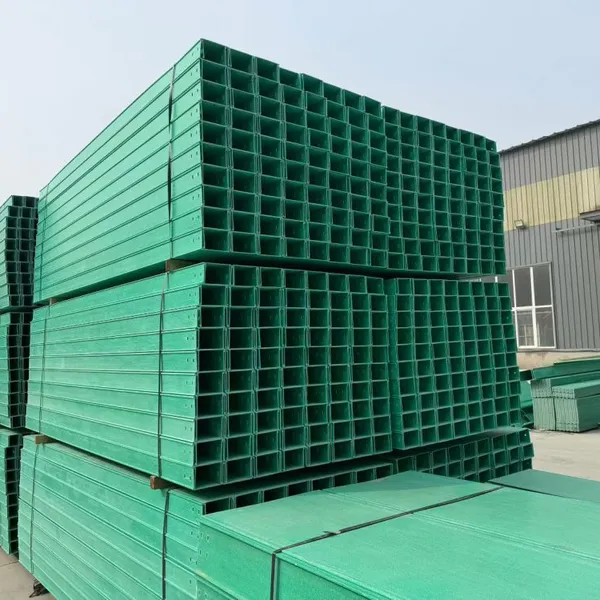

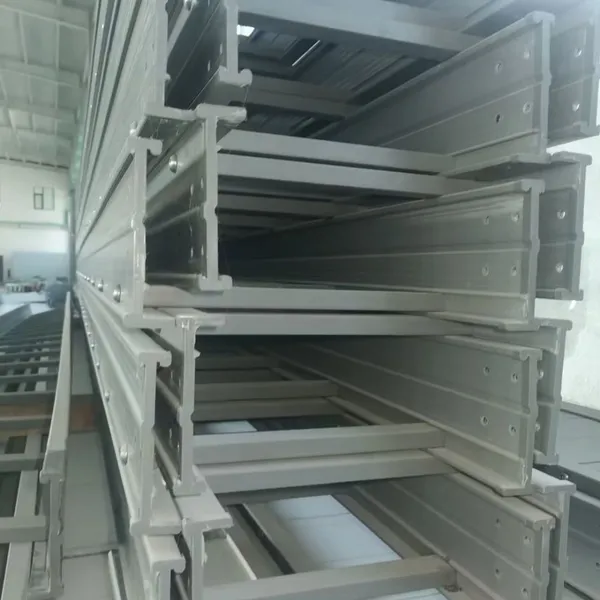

Help CenterFiberglass Cable Tray 600mm Wide 75mm Depth 100kg/m Load Industrial Grade Pultruded FRP
Product Spotlights
Related Products
-
Fiberglass Cable Tray for Chemical Plant Corrosive Environment FRP Pultruded 2.5m Length Fire RetardantNegotiableMOQ: 300 Blades -
Fiberglass Cable Tray Free Replacement Within 1 Year 600mm Wide 100mm Deep UV Resistant Non-CorrosiveNegotiableMOQ: 300 Blades
-
Fiberglass Cable Tray Fire Retardant ASTM E84 Class A 2.5m Length 3mm Wall Corrosion ProofNegotiableMOQ: 300 Blades
-
Industrial Buildings FRP GRP Fiberglass Cable Ladder Tray for Heavy Duty SupportNegotiableMOQ: 50 Meters
-
Outdoor Fiberglass Ladder Type FRP GRP Cable Tray for Industrial Cable SupportNegotiableMOQ: 50 Meters
Hengshui Ruibin New Materials LLC is a dedicated manufacturer of high-quality pultruded FRP products, established in 2019 with a modern factory spanning 1,000-3,000 square meters. We take pride in introducing our Fiberglass Cable Tray 600mm Wide 75mm Depth 100kg/m Load Industrial Grade Pultruded FRP – a robust solution designed for demanding industrial environments. This cable tray offers exceptional corrosion resistance, lightweight strength, and reliable support for cables in power plants, chemical facilities, telecommunication networks, and offshore platforms. Manufactured under strict ISO9001 quality management systems, our product ensures long service life and minimal maintenance.
Our pultruded FRP cable tray is engineered to handle a concentrated load of 100 kg/m with a width of 600mm and a depth of 75mm, making it ideal for heavy cable bundles. The pultrusion process creates a high-strength, uniform cross-section with excellent dimensional stability. Unlike traditional steel trays, FRP is non-conductive, non-magnetic, and impervious to rust, chemicals, and UV degradation. This product is particularly suitable for outdoor, underground, and corrosive environments where metal trays fail prematurely.
Key Features & Advantages
- High Load Capacity: Rated for 100 kg/m uniformly distributed load, verified through rigorous testing.
- Corrosion Resistance: Withstands acids, alkalis, salts, and moisture – ideal for harsh industrial settings.
- Lightweight & Easy Installation: Reduces structural load and labor costs compared to steel or aluminum trays.
- Non-Conductive & Fire Retardant: Enhances safety in electrical installations; optional fire-retardant grade available.
- Customizable Dimensions: Available in various lengths (up to 6m), colors, and configurations (straight, bends, tees, etc.).
- Low Maintenance: No need for painting, galvanizing, or periodic replacement.
Technical Specifications
| Parameter | Value |
| Overall Width | 600 mm |
| Overall Depth | 75 mm |
| Load Capacity (UDL) | 100 kg/m |
| Material | Pultruded FRP (Glass Fiber & Polyester/Vinyl Ester Resin) |
| Standard Length | 3 m, 6 m (customizable up to 12 m) |
| Color | Gray (RAL 7035) or custom |
| Operating Temperature | -40°C to +120°C |
| Fire Rating | Class B1 (optional) / Self-extinguishing |
Why Choose Our Fiberglass Cable Tray?
The pultruded FRP construction provides superior strength-to-weight ratio, making handling and installation faster and safer. The 600mm width accommodates large cable runs, while the 75mm depth offers ample space for cable stacking and separation. The 100kg/m load rating ensures reliability even in heavy-duty applications such as petrochemical plants, power distribution, and data centers. Our trays are manufactured with precision to ensure consistent dimensions and easy splicing. Additionally, the non-metallic nature eliminates the risk of galvanic corrosion and electrical hazards, contributing to a safer work environment.
We understand that every project has unique requirements. That is why we offer a wide range of accessories including brackets, covers, splice plates, and clamps. Our team can also provide custom designs for bends, tees, and reducers to match your cable routing layout. With a dedicated R&D department and flexible production capabilities, we can deliver tailored solutions quickly.
Trust & Reliability
As a manufacturer with an annual export value of US$2.5–5 million, Hengshui Ruibin New Materials LLC has built a strong reputation across North America, South America, Europe, Asia, Africa, and Oceania. Our 101–200 employees operate state-of-the-art pultrusion lines and quality control labs. The company is certified under ISO9001:2015 and ISO9000, ensuring that every product meets international standards. We ship from Tianjin and Qingdao ports, with fast lead times and competitive logistics. Our after-sales support includes technical documentation, installation guidance, and warranty coverage.
We invite you to contact us for a quotation or to discuss your specific cable tray requirements. Whether you need a standard 600x75mm tray or a customized solution, our team is ready to assist. Invest in the durability and performance of pultruded FRP – choose Hengshui Ruibin for your next project.
Frequently Asked Questions
-
Q: What is the maximum span length for this fiberglass cable tray?
A: The maximum span depends on the load and desired deflection. For 100 kg/m load, typical spans are 1.5–2.5 m. We provide span tables and engineering support upon request. -
Q: Can this tray be used outdoors in direct sunlight?
A: Yes, our FRP material includes UV stabilizers to resist degradation from sunlight. For extended outdoor exposure, we recommend a UV-resistant gel coat finish. -
Q: Is the tray fire-resistant?
A: The standard polyester resin is self-extinguishing. We also offer a halogen-free fire-retardant grade (Class B1 per GB/T 8624) for applications requiring higher fire safety. -
Q: How do I connect multiple tray sections?
A: We provide stainless steel or FRP splice plates and bolts. The connection is simple and maintains load capacity. Detailed installation instructions are included. -
Q: What is the delivery time?
A: For standard sizes (600x75mm), lead time is 15–20 days after order confirmation. Custom lengths or accessories may require 25–30 days. -
Q: Do you offer a warranty?
A: Yes, we provide a 2-year warranty against manufacturing defects. Extended warranty is available upon request. -
Q: Can the tray be cut on-site?
A: Yes, FRP can be cut with standard tools like a circular saw or abrasive disc. No special equipment is needed.
