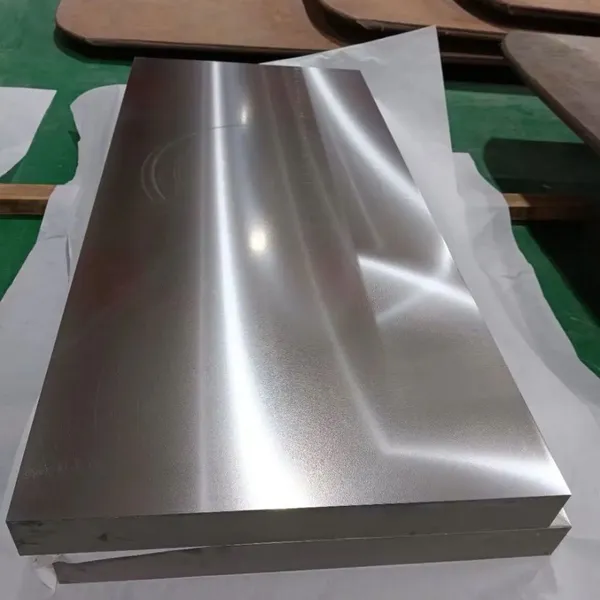

Help CenterTitanium Alloy Plate Gr5 Gr7 Gr9 Gr12 Gr23 Cold Rolled Titanium Sheet Custom Size
Product Spotlights
Related Products
-
4x8 Titanium Sheet Pure Titanium Plate Mill Finish Surface Cold Rolled Titanium SheetUS$ 20 - 40MOQ: 100 Kilograms -
Grade2 Titanium Metal Sheet Pickled Surface Titanium Plate With Custom ThicknessUS$ 20 - 40MOQ: 100 Kilograms
-
2mm Titanium Alloy Sheet Polished Titanium Plate For Chemical Corrosion ResistanceUS$ 20 - 40MOQ: 100 Kilograms
-
Ti6Al4V Titanium Alloy Sheet Gr5 Titanium Plate For Industrial Machining FabricationUS$ 20 - 40MOQ: 100 Kilograms
-
Ti-6Al-4V Titanium Alloy Sheet Grade Gr5 Titanium Plate For Aerospace ApplicationUS$ 20 - 40MOQ: 100 Kilograms
Welcome to Xi'an Fengyao Technology Co., Ltd. Established in 2026, we have rapidly grown into a trusted supplier of high-quality titanium products. Our Titanium Alloy Plate in grades Gr5, Gr7, Gr9, Gr12, and Gr23 is manufactured using advanced cold rolling technology, ensuring superior surface finish and dimensional accuracy. With a factory spanning 5,000-10,000 square meters and annual export value between US$2.5 million and US$5 million, we are equipped to meet diverse industrial demands. This cold rolled titanium sheet offers excellent corrosion resistance, high strength-to-weight ratio, and is available in custom sizes to fit your exact requirements.
Product Features & Technical Specifications:

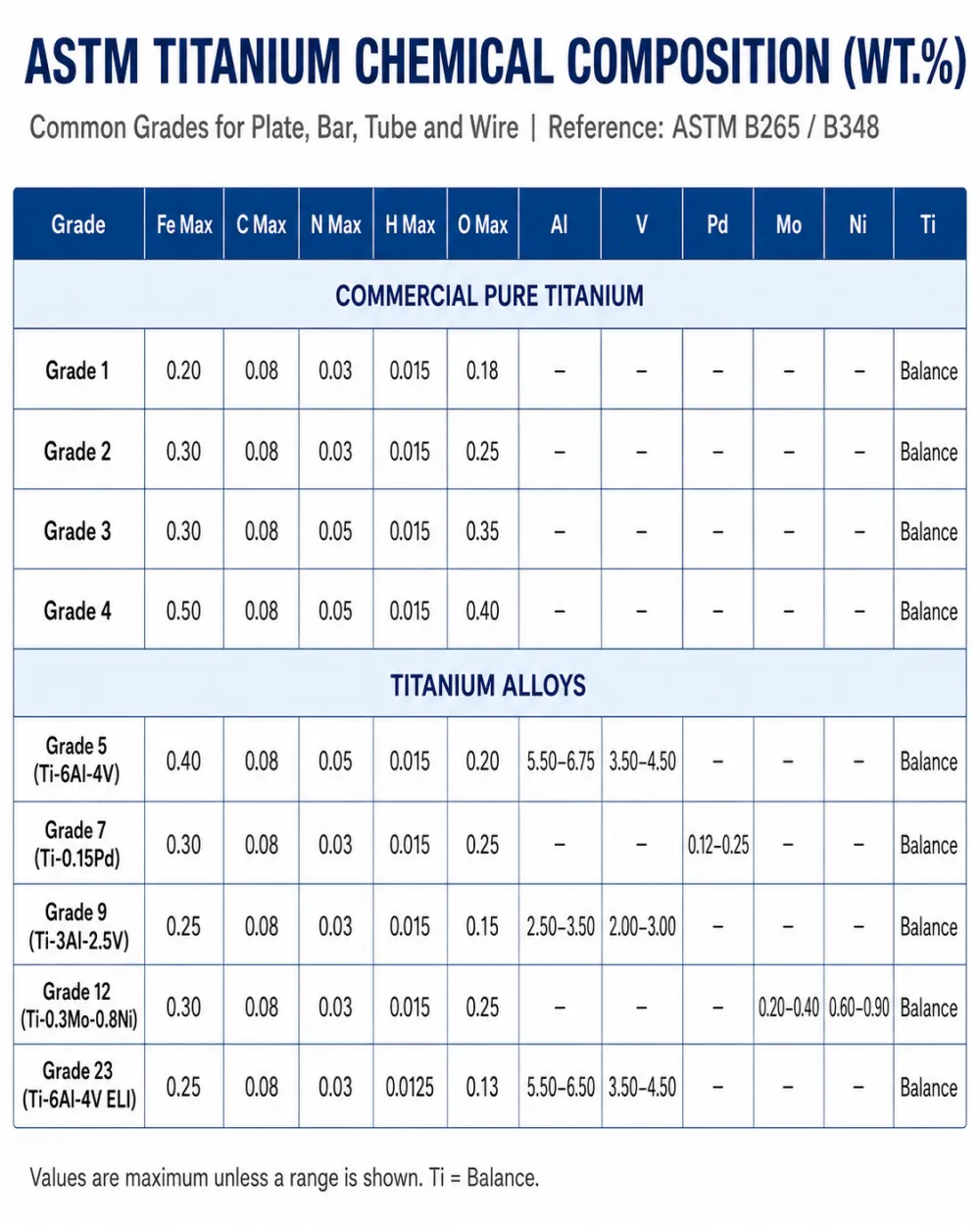

Multiple Grades: Gr5 (Ti-6Al-4V) for high strength, Gr7 (Ti-0.2Pd) for superior corrosion resistance, Gr9 (Ti-3Al-2.5V) for medium strength, Gr12 (Ti-0.3Mo-0.8Ni) for enhanced corrosion resistance, and Gr23 (Ti-6Al-4V ELI) for low interstitial applications.
Cold Rolled Process: Ensures smooth surface, tight thickness tolerances, and excellent mechanical properties.
Customizable Dimensions: Thickness from 0.3mm to 6mm, width up to 2000mm, and length as per your request.
Certifications: ISO9001 and ISO14000 certified, guaranteeing consistent quality and environmental management.
Applications: Ideal for aerospace components, chemical processing equipment, marine hardware, medical implants, and heat exchangers.
Typical Thickness & Dimensional Range:
| Parameter | Range | Notes |
|---|---|---|
| Thickness | 0.3 - 6.0 mm | Custom tolerance available |
| Width | 100 - 2000 mm | Customizable |
| Length | 200 - 6000 mm | Customizable |
| Surface Roughness | Ra ≤ 0.8 μm | Cold rolled finish |
| Flatness | ≤ 3 mm/m | Standard |
Key Advantages & Benefits:
Corrosion Resistance: Titanium alloys withstand harsh environments including seawater, acids, and chlorides, extending equipment life.
High Strength-to-Weight Ratio: Lighter than steel with comparable strength, reducing structural load.
Biocompatibility: Gr5 and Gr23 are suitable for medical implants and surgical instruments.
Weldability: Excellent weldability with proper procedures, allowing complex fabrication.
Cost-Effective Customization: We offer custom sizes without minimum order quantity constraints, helping you reduce waste and inventory.
Quality Assurance & Trust: At Xi'an Fengyao Technology Co., Ltd., we are committed to delivering products that meet international standards. Our ISO9001 quality management system ensures every batch is inspected for chemical composition, mechanical properties, and dimensional accuracy. With ISO14000 certification, we also prioritize environmental responsibility. Our experienced team of 5-10 professionals handles orders from North America to Southeast Asia, ensuring timely delivery via Tianjin or Shanghai ports. We have served clients in over 15 regions, and our annual export value reflects our reliability. Choose our Titanium Alloy Plate for your next project — contact us today for a quote or technical consultation.
Frequently Asked Questions (FAQ):
Q: What grades of titanium alloy plate are available? A: We supply Gr5, Gr7, Gr9, Gr12, and Gr23. Other grades are available upon request.
Q: Can you provide custom sizes? A: Yes, we offer custom thickness, width, and length. Please specify your requirements.
Q: What is the minimum order quantity? A: There is no strict MOQ; we accept small orders as well as large volumes.
Q: What surface finish can I expect? A: Standard finish is cold rolled bright surface. Pickled or polished finishes are also available upon request.
Q: How long is the delivery time? A: Typically 15-30 working days depending on order quantity and customization. Urgent orders can be expedited.
Q: Do you have quality certifications? A: Yes, we are ISO9001 and ISO14000 certified. Mill test reports are provided with each shipment.
Q: What are the typical applications for these plates? A: Aerospace, chemical processing, marine, medical, and heat exchanger industries commonly use these grades.
Q: How do I place an order? A: Contact us via email or phone with your required grade, dimensions, quantity, and delivery port. We will provide a quotation within 24 hours.
