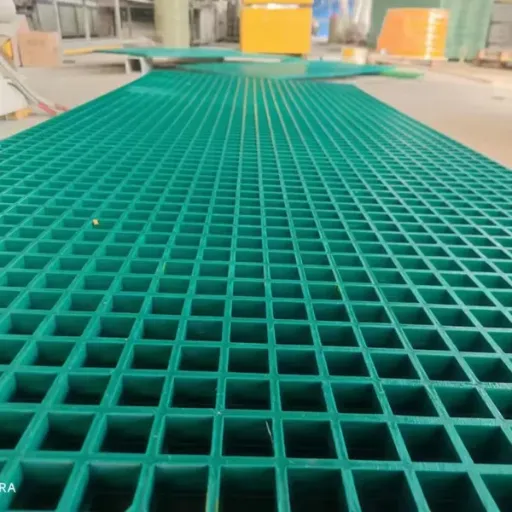

Help CenterCorrosion Resistant FRP Grating 6mm Bar Thickness 1.22m x 2.44m For Chemical Plants
Product Spotlights
Related Products
-
Molded FRP Grating 1.2m x 2.4m 30% Glass Fiber Content Fire Retardant GradeNegotiableMOQ: 200 Blades -
FRP Grating With 40% Open Area for Drainage 2.4m x 1.2m Grid Pattern 25mm DepthNegotiableMOQ: 200 Blades
-
FRP Grating 38mm Thickness 25kN/m2 Load Capacity With Anti-Slip Surface for Industrial FlooringNegotiableMOQ: 200 Blades
-
Load Capacity 5000 PSI FRP Grating 38x38x25mm With Fire Retardant Class 1NegotiableMOQ: 200 Blades
-
FRP Grating Supply With Technical Support and Standard Compliant Fully TestedNegotiableMOQ: 200 Blades
As a leading manufacturer headquartered in Hengshui, Hebei, China, Hengshui Ruibin New Materials LLC specializes in producing high-performance Corrosion Resistant FRP Grating with a 6mm bar thickness and standard panel size of 1.22m x 2.44m. Engineered for demanding environments such as chemical plants, this grating combines robust mechanical strength with exceptional resistance to corrosive chemicals, ensuring long-lasting service life and minimal maintenance. Our factory, spanning 1,000-3,000 square meters and staffed with 101-200 experienced employees, leverages advanced pultrusion and molding techniques to deliver consistent quality and reliability. With annual export values reaching US$2.5 million to US$5 million, we serve clients across North America, South America, Europe, Asia, Africa, and Oceania, providing a trusted solution for industrial flooring, walkways, and platforms.
Product Features and Technical Specifications
- Superior Corrosion Resistance: The FRP grating is formulated with high-quality resin (polyester or vinyl ester, customizable) and continuous glass fibers, making it impervious to a wide range of acids, alkalis, solvents, and other aggressive chemicals commonly found in chemical plants. It outperforms traditional steel or aluminum gratings in corrosive environments, drastically reducing replacement costs.
- High Strength-to-Weight Ratio: Despite its lightweight nature, the 6mm bar thickness provides excellent load-bearing capacity. The grating is designed to support heavy foot traffic, equipment loads, and even occasional vehicle access, with a typical load capacity of 1.5-3.5 kN/m² (depending on span and configuration).
- Anti-Skid Surface: The concave-convex grid pattern (or optional gritted top) ensures excellent slip resistance, even in wet or oily conditions, enhancing workplace safety for operators and maintenance personnel.
- Easy Installation and Maintenance: The standard panel size of 1.22m x 2.44m allows for quick cutting and fitting on-site. No welding or special tools are required. The non-conductive and non-magnetic properties also make it ideal for electrical substations or sensitive areas.
- UV and Weather Resistance: The grating is formulated with UV stabilizers, ensuring long-term outdoor durability without cracking or fading. It can withstand extreme temperatures from -40°C to +80°C.

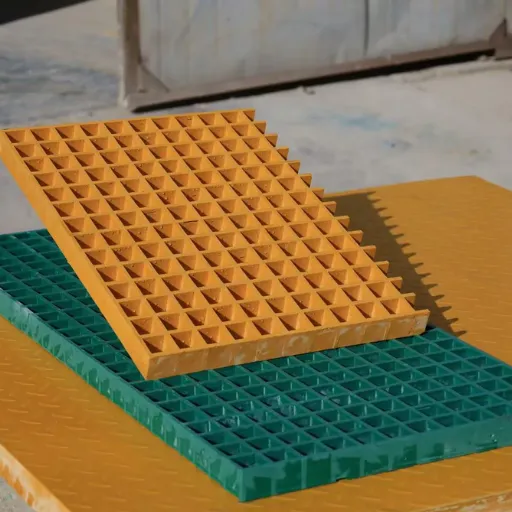

- Customizable Options: Available in multiple colors (yellow, gray, green, etc.), resin types, and surface finishes to meet specific project requirements. Additional fire-retardant (FR) grades are available upon request.
Technical Specifications Table
| Parameter | Value |
| Bar Thickness | 6 mm |
| Panel Size | 1.22 m × 2.44 m (4 ft × 8 ft) |
| Mesh Spacing (Center-to-Center) | 30 mm × 30 mm (standard) |
| Weight per Panel | Approx. 35-45 kg (depending on resin) |
| Load Capacity (Uniform) | Up to 8 kN/m² (customizable) |
| Operating Temperature Range | -40°C to +80°C |
| Resin Type (Standard) | Polyester (optional Vinyl Ester, Epoxy) |
| Surface Finish | Concave-convex grid (standard); gritted top available |
| Color Options | Yellow, Gray, Green, Custom |
| Certification | ISO9001, ISO9000 |
Benefits for Your Business
- Reduce total cost of ownership by eliminating frequent replacements and rust-related downtime.
- Enhance worker safety with anti-slip surfaces and non-conductive properties.
- Simplify logistics with lightweight panels that reduce shipping costs and handling effort.
- Comply with international quality standards (ISO9001/ISO9000) for your project specifications.
- Benefit from fast turnaround and flexible customization, supported by our experienced team.
Why Choose Hengshui Ruibin New Materials LLC?
Since our establishment in 2019, we have grown into a reliable partner for global clients, exporting over US$2.5 million worth of FRP products annually. Our factory employs 101-200 skilled workers and operates under strict quality control systems audited by ISO9001/ISO9000 certifications. Main markets include North America, Europe, Southeast Asia, and the Middle East, where our gratings are used in chemical plants, oil refineries, and water treatment facilities. We ship from Port of Tianjin and Port of Qingdao, ensuring timely delivery. Combine our competitive pricing, technical expertise, and responsive after-sales service, and you have a partner that delivers value from order to installation. Contact us today for a quote or sample to test the performance of our Corrosion Resistant FRP Grating in your specific environment.
Frequently Asked Questions (FAQ)
Q1: What makes this FRP grating corrosion resistant?
A: The grating is made from a combination of fiberglass and specially formulated resin (polyester or vinyl ester) that resists attack from acids, alkalis, and organic solvents. The resin matrix encapsulates the glass fibers, preventing chemical penetration and degradation.
Q2: Can I order panels with different bar thicknesses?
A: Yes, we offer various bar thicknesses including 4mm, 6mm, 8mm, and 10mm. The 6mm thickness is a popular choice for chemical plants due to its balance of strength and weight. Custom thicknesses are available upon request.
Q3: Is this grating suitable for outdoor use?
A: Absolutely. The material includes UV stabilizers to prevent degradation from sunlight. It can withstand extreme weather conditions, including rain, snow, and high temperatures, without warping or cracking.
Q4: How do I cut the panels to fit my dimensions?
A: FRP grating can be easily cut with standard carbide-tipped saw blades or abrasive cut-off wheels. We provide cutting guidelines and can also supply pre-cut panels to your specification for an additional fee.
Q5: What is the load capacity of a 6mm thick grating?
A: The load capacity depends on the span (distance between supports) and the specific resin system. Typically, for a 600mm span, the uniform load capacity is around 5-8 kN/m². Detailed load tables are available upon request.
Q6: Do you offer fire-retardant grades?
A: Yes, we can produce grating with fire-retardant additives that meet Class I or Class II flame spread ratings. Please specify the required standard (e.g., ASTM E84) when ordering.
Q7: What colors are available?
A: Standard colors are yellow, gray, and green. Custom colors can be matched to your RAL or Pantone code with a minimum order quantity. Color pigments are integrated into the resin for long-lasting appearance.
Q8: How long does shipping take to international destinations?

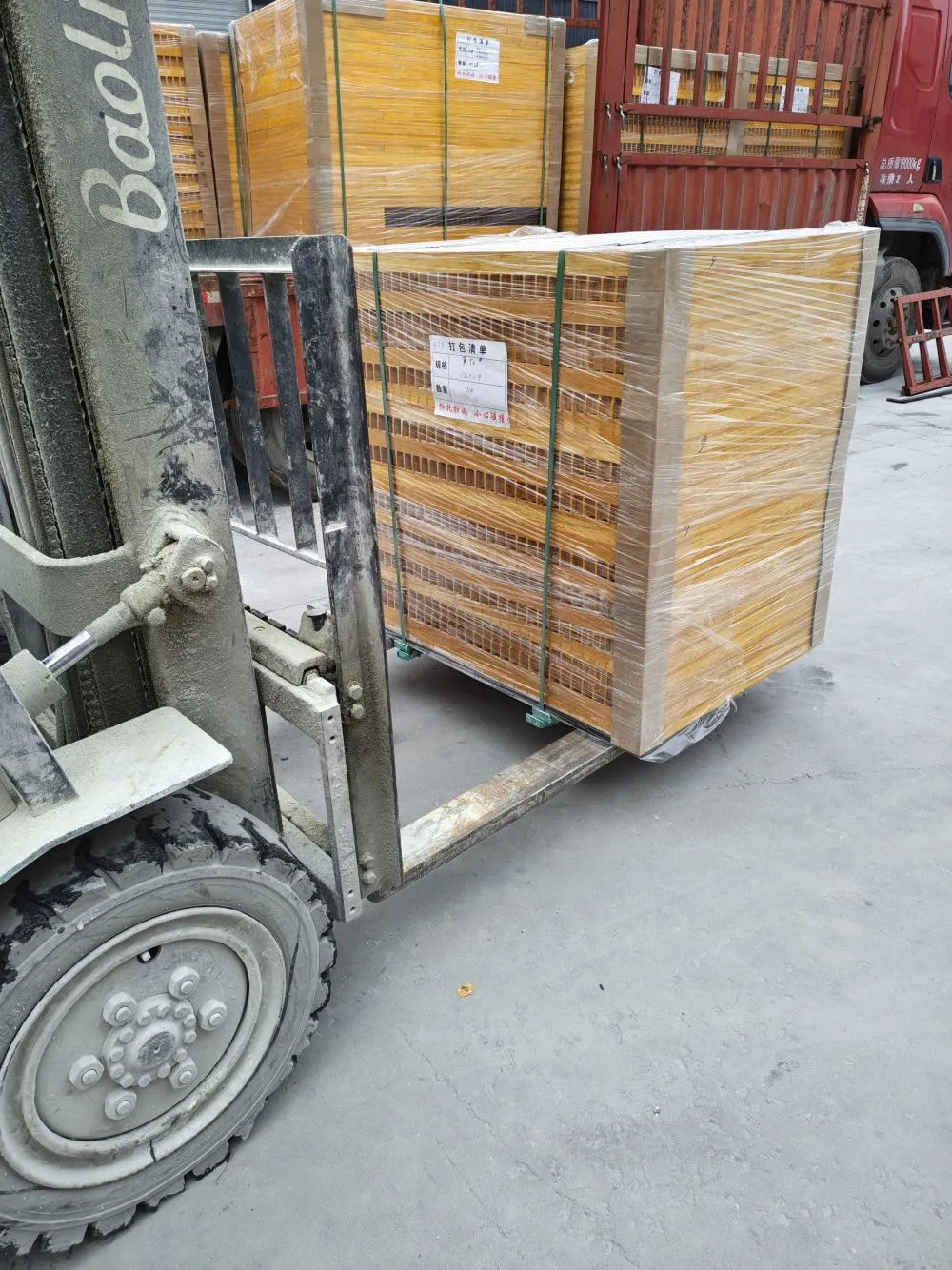

A: Typical lead time is 15-25 working days after order confirmation, depending on quantity and customization. We ship via sea freight from Tianjin or Qingdao ports. Express delivery is available for urgent small orders.
