Welcome to Hengshui Ruibin New Materials LLC, a dedicated manufacturer of SMC composite products since 2019. Our SMC Composite U Shape Drainage Ditch is engineered for municipal construction projects, delivering efficient water drainage, long-term durability, and easy installation. With a factory spanning 1,000–3,000 square meters and a skilled team of 101–200 employees, we ensure rigorous quality control at every stage. Our annual export value of US$2.5–5 million reflects our commitment to global excellence, serving markets across North America, South America, Europe, Asia, Africa, and Oceania.
This product is designed to replace traditional concrete or metal drainage channels, offering a lightweight yet high-strength solution that resists corrosion, chemicals, and UV degradation. Its U-shape profile optimizes water flow and prevents sediment buildup, making it ideal for roads, parking lots, airports, and industrial sites.
Product Features & Benefits
Lightweight & High Strength: SMC material is 60% lighter than concrete, reducing transportation and installation costs while maintaining excellent load-bearing capacity.
Corrosion & Chemical Resistance: Impervious to salts, acids, and alkalis, ensuring a service life of over 30 years even in harsh environments.
Quick Installation: Socket connection system allows rapid assembly without heavy machinery, cutting labor time by up to 50%.
Low Maintenance: Smooth interior surface prevents clogging and is easy to clean with water pressure.
Customizable Dimensions: Available in various lengths, widths, and heights to match specific project requirements.
Eco-Friendly: 100% recyclable material, contributing to green building certifications.
Technical Specifications
| Parameter | Available Options |
| Length (mm) | 1000, 2000, 3000 (customizable) |
| Width (mm) | 200, 300, 400 (customizable) |
| Height (mm) | 200, 300, 400 (customizable) |
| Wall Thickness (mm) | 4–8 (depending on load class) |
| Load Class | A15, B125, C250, D400 (upon request) |
| Color | Gray, Black (customizable) |
| Connection Type | Socket / Male-Female joint |
Why Choose Our SMC Drainage Ditch?
Cost-Effective: Lower total cost of ownership compared to concrete channels due to reduced installation and maintenance.
Reliable Quality: Manufactured under ISO9001:2015 and ISO9000 certified processes, ensuring consistent product performance.
Global Experience: Exported to 12+ regions including Europe, Americas, and Southeast Asia, with positive feedback on durability.
Customization: We offer tailored solutions for non-standard sizes, colors, and load ratings.
Our drainage ditch has been widely used in municipal projects such as road drainage, airport runways, parking lots, and industrial parks. Its U-shape design allows for high flow capacity and easy alignment with existing drainage systems. The smooth surface and precise dimensions ensure a tight seal, preventing leakage and soil erosion.
Frequently Asked Questions (FAQ)
What is SMC material?
SMC (Sheet Molding Compound) is a glass fiber reinforced polyester composite. It offers high strength, light weight, and excellent corrosion resistance, making it ideal for outdoor drainage applications.What load ratings are available?
We can supply load classes from A15 (pedestrian) to D400 (heavy traffic) upon request. Please specify your project requirements for a precise recommendation.Can the dimensions be customized?
Yes, we offer custom lengths, widths, and heights. Minimum order quantity may apply for non-standard sizes.How is the drainage ditch installed?

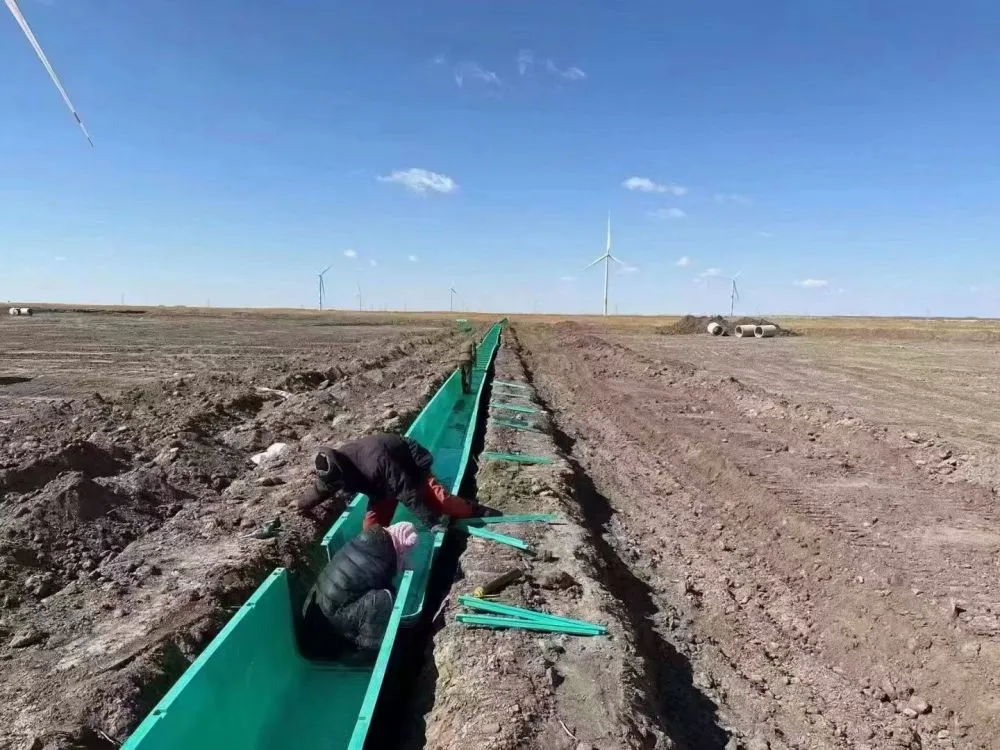

Installation is simple: excavate a trench, prepare a level base, connect sections using the socket joint, and backfill with compacted material. No special tools required.Is it resistant to chemicals and UV?
Yes, SMC is inherently resistant to a wide range of chemicals and UV radiation, ensuring long-term performance in harsh environments.What is the lead time for an order?
Typical lead time is 15–25 working days, depending on quantity and customization. We can expedite for urgent projects.Do you provide samples?
Yes, we can send samples for evaluation. Please contact our sales team to arrange shipping and cost details.What is the warranty period?
We offer a 2-year warranty against manufacturing defects. Our product is designed to last over 30 years under normal use.
Trust Hengshui Ruibin New Materials LLC for your next municipal project. As an ISO9001/ISO9000 certified manufacturer with a strong export track record, we guarantee quality and reliability. Our team of 101–200 professionals is ready to assist you with technical support and after-sales service. With convenient shipping from Port of Tianjin and Qingdao, we deliver to your doorstep efficiently.
Contact us today to request a quote or discuss your specific requirements. Let our SMC Composite U Shape Drainage Ditch be the backbone of your drainage infrastructure.
