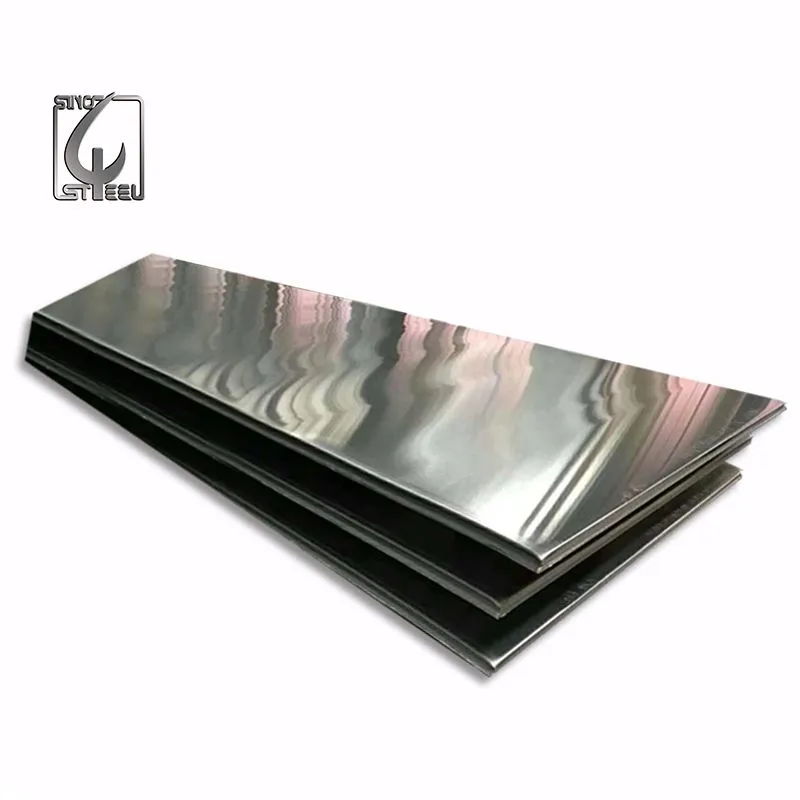

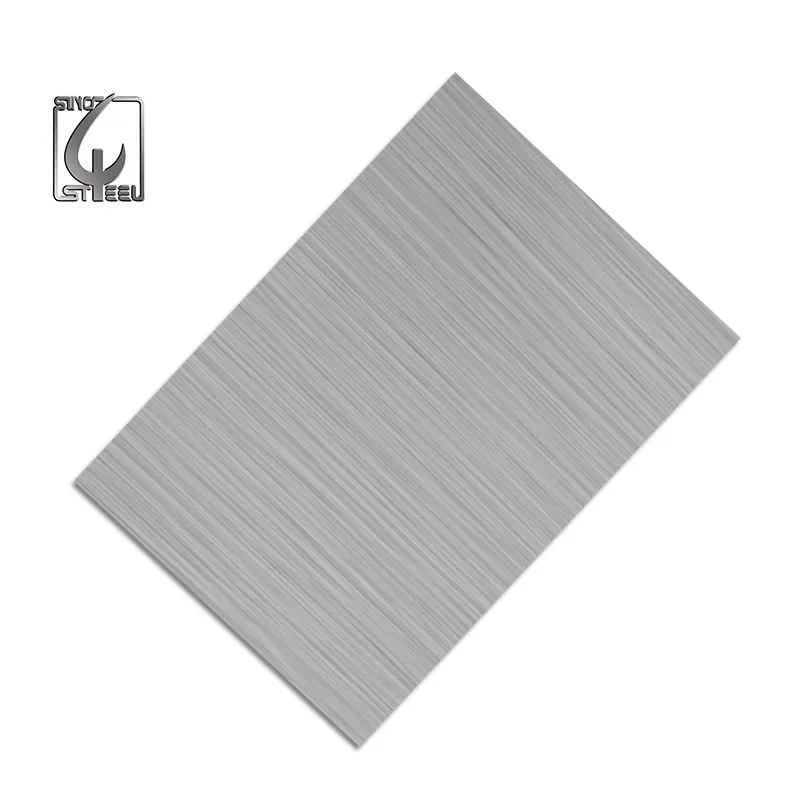

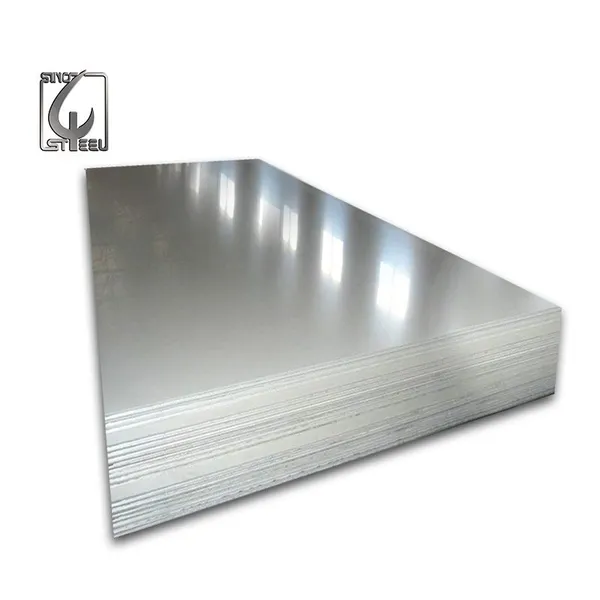

Aluminum Sheet With Mill Test Report Custom Size Support Guaranteed Flatness
Product Spotlights
Aluminum Sheet with Mill Test Report, custom size support, and guaranteed flatness (≤2mm/m). Ideal for construction, transportation, and electronics. Manufactured by ISO9001 certified Shandong Sino Steel Co., Ltd. with 100+ employees and global shipping. Contact us for tailored solutions.
US$ 4000
≥6 Tons
Key Specifications
Get Latest Price
Surface Treatment:
Other, Mill Finish, Brushed, Polished (optional)
Temper:
Other, O, H12, H14, H16, H18, H22, H24, H26, H32, etc.
Certification:
Other, ISO9001 certified
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
5052 H32 Aluminum Sheet 2mm Thick 4x10ft Corrosion Resistant SheetUS$ 4000MOQ: 6 Tons -
Factory Direct Aluminum Sheet 1.2mm 1220x2440mm 1 Year Warranty & MTCUS$ 4000MOQ: 6 Tons
-
Ribbed Aluminum Sheet 4x8 Panel 1.5mm Thick Embossed Tread Plate 5-BarUS$ 4000MOQ: 6 Tons
-
Reflective Aluminum Sheet 1050 H24 for Light Fixture Reflectors & CoolingUS$ 4000MOQ: 6 Tons
-
Diamond Pattern Aluminum Sheet 2mm 4x8ft 5-Bar Tread Plate Heavy DutyUS$ 4000MOQ: 6 Tons
Surface Treatment
Other, Mill Finish, Brushed, Polished (optional)
Temper
Other, O, H12, H14, H16, H18, H22, H24, H26, H32, etc.
Certification
Other, ISO9001 certified
Application
Other, Construction
Material
Aluminum (Alloy 1050, 1060, 1100, 3003, 5052 available upon request)
Thickness
0.2mm - 200mm (customizable)
Width
500mm - 2500mm (customizable)
Length
500mm - 12000mm (customizable)
Shandong Sino Steel Co., Ltd. is a professional manufacturer with over 6 years of experience in aluminum product supply. Our Aluminum Sheet with Mill Test Report is engineered to meet the most demanding industrial requirements, featuring guaranteed flatness and fully customizable sizes. Each sheet is backed by a detailed Mill Test Report (MTR) for traceable quality assurance. Whether you need standard dimensions or unique specifications, our factory (10,000–30,000 sqm) delivers precision-cut aluminum sheets that ensure consistent performance in your applications.
Our aluminum sheets are manufactured using advanced rolling and heat-treatment technologies, offering excellent formability, corrosion resistance, and high strength-to-weight ratio. The guaranteed flatness is achieved through strict process control and final inspection, minimizing warping and distortion – critical for flat panel assembly, signage, and automotive body panels.
Key Features & Technical Specifications
- Guaranteed Flatness Tolerance: ≤ 2mm per 1000mm (customizable upon request)
- Alloy Range: 1xxx, 3xxx, 5xxx, 6xxx series (e.g., 1050, 1060, 1100, 3003, 5052, 6061)
- Thickness Options: From 0.2mm thin foil to 200mm heavy plate
- Width & Length: Up to 2500mm wide and 12000mm long; custom sizes welcome
- Surface Finishes: Mill finish, brushed, polished, or coated (optional)
- Edge Treatment: Sheared, slit, or machined edges available
- Packaging: Standard export wooden pallets with protective film
| Parameter | Value |
|---|---|
| Thickness | 0.2 – 200 mm |
| Width | 500 – 2500 mm |
| Length | 500 – 12000 mm |
| Flatness Tolerance | ≤ 2 mm/m (standard); tighter available |
| Chemical Composition | Per ASTM B209 / EN 485 |
| Temper | O, H12–H32, T6 (custom) |
Why Choose Our Aluminum Sheet?
- Custom Size Support: No minimum order quantity for custom dimensions – we cut exactly to your drawing.
- Mill Test Report Included: Every shipment comes with an MTR certifying chemical and mechanical properties.
- Reliable Flatness: Our proprietary leveling process ensures sheets lie flat, saving you time in secondary processing.
- Global Shipping: From Qingdao, Tianjin, or Shanghai ports to markets worldwide (North America, Europe, SE Asia, etc.).
- Flexible Lead Time: Standard sizes ship in 7–15 days; custom orders typically 15–25 days.
Backed by Shandong Sino Steel Co., Ltd. – a company with ISO9001 certified quality management system, we have supplied aluminum sheets to over 30 countries. Our annual export value exceeds US$2.5 million, and we maintain a dedicated team of 101–200 employees. With an overseas office and a modern factory spanning 10,000–30,000 square meters, we are equipped to handle both small and large-scale projects. Contact us today for a quote or technical consultation – your custom aluminum sheet solution is just a message away.
Frequently Asked Questions
-
Q: What does “guaranteed flatness” mean exactly?
A: Our standard flatness tolerance is ≤ 2 mm per 1000 mm of sheet length. For critical applications, we can achieve tighter tolerances (e.g., 1 mm/m) upon request. This is verified by our QA team using calibrated instruments. -
Q: Can you provide a Mill Test Report (MTR) for each sheet?
A: Yes, an MTR is included with every order. It details the chemical composition, mechanical properties, and temper, traceable to the specific production lot. -
Q: What sizes can you customize?
A: We can cut any thickness from 0.2mm to 200mm, width up to 2500mm, and length up to 12000mm. Non-standard sizes are welcome; please provide your exact dimensions. -
Q: Which alloys are commonly used for flatness-sensitive applications?
A: Alloys like 5052, 6061, and 3003 are popular for their balance of strength and flatness. We also offer 1xxx series for electrical or chemical uses. Our team can recommend the best alloy for your project. -
Q: How is the aluminum sheet packaged to prevent damage during transit?
A: Sheets are interleaved with protective paper or film, stacked on sturdy wooden pallets, and secured with steel strapping. For fragile surfaces, we offer additional edge protectors. -
Q: Do you offer samples before bulk order?
A: Yes, sample sheets (usually A4 size) are available for a nominal fee, which is refundable upon placing a full order. Contact our sales team to arrange. -
Q: What is the typical lead time for custom-sized aluminum sheets?
A: For standard sizes, 7–15 days after order confirmation. For custom sizes, 15–25 days depending on thickness and quantity. Rush orders can be negotiated. -
Q: Can you ship to my country via sea or air?
A: Absolutely. We ship from Qingdao, Tianjin, and Shanghai ports. We have experience shipping to North America, South America, Europe, Africa, Asia, and the Middle East. Both FOB and CIF terms are available.
