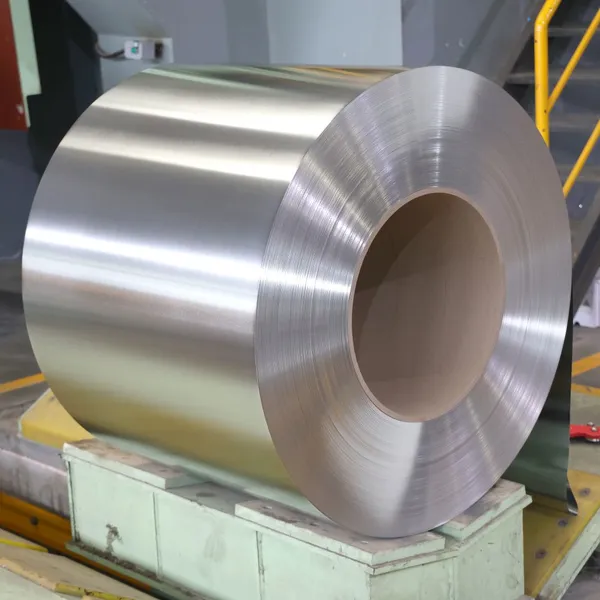

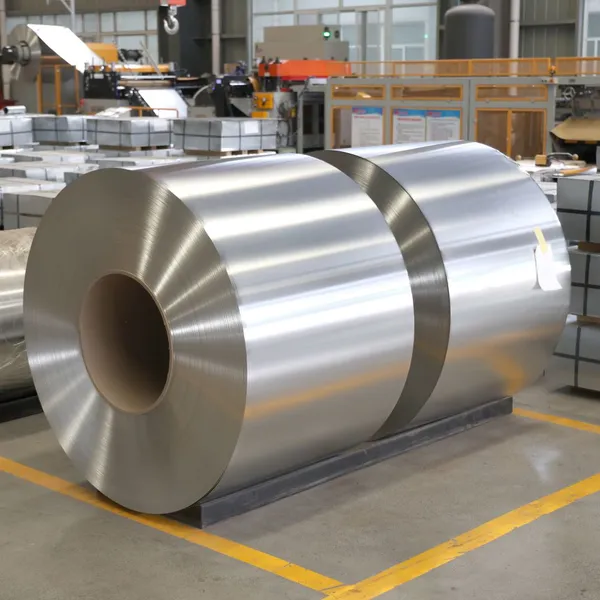

Help Center1100 Aluminum Coil 0.2mm Thickness PVDF Coated for Signage Applications
Product Spotlights
Related Products
-
5052 H32 Aluminum Coil 1.0mm Width 1200mm Mill Finish for StampingUS$ 4000MOQ: 6 Tons -
Aluminum Coil 3003 H14 0.6mm Thickness 3.0mm ID Coil Weight 2 TonUS$ 4000MOQ: 6 Tons
-
3003 Aluminum Coil 0.8mm Thickness 1000mm Width With Stucco Embossed SurfaceUS$ 4000MOQ: 6 Tons
-
Aluminum Coil for Roofing Sheet 3003 H14 0.5mm PE Coated 50mm WidthUS$ 4000MOQ: 6 Tons
-
6061 T6 Aluminum Coil 2.0mm Thickness 1500mm Width for Automotive PartsUS$ 4000MOQ: 6 Tons
As a leading manufacturer based in Qingdao, China, Shandong Sino Steel Co., Ltd. specializes in producing high-quality aluminum coils for a wide range of industrial applications. Our 1100 Aluminum Coil with 0.2mm thickness and PVDF coating is specifically engineered for signage applications, offering excellent durability, weather resistance, and aesthetic appeal. With over 6 years of experience, a factory size of 10,000-30,000 square meters, and a dedicated team of 101-200 employees, we ensure every coil meets the highest standards of performance and consistency.
This product combines the lightweight and corrosion-resistant properties of 1100 aluminum alloy with a premium PVDF (polyvinylidene fluoride) coating, which provides superior UV resistance and color retention. The 0.2mm thickness makes it ideal for flat signage panels, channel letters, and advertising boards where strength-to-weight ratio is critical. Our coils are available in various widths and can be customized to meet specific project requirements.
Key Features & Technical Specifications
- Alloy Grade: 1100 (commercially pure aluminum, excellent formability and weldability)
- Thickness: 0.2mm (±0.02mm tolerance, consistent gauge)
- Coating: PVDF (70% PVDF resin, 30% acrylic resin) – provides long-lasting gloss and chemical resistance
- Width Range: Customizable from 100mm to 1500mm (standard widths: 1000mm, 1250mm)
- Temper: H14/H16/H18 (optional, depending on rigidity requirements)
- Surface Finish: Smooth, uniform coating with no pinholes or streaks
- Color Options: RAL colors, metallic finishes, and custom colors available upon request
- Standard Compliance: Meets GB/T 3880 and ASTM B209 standards
| Parameter | Value |
|---|---|
| Tensile Strength (MPa) | ≥ 110 |
| Elongation (%) | ≥ 3 |
| Coating Thickness (μm) | 25-30 μm (PVDF) |
| Gloss Level (60°) | ≥ 30% (customizable) |
| Pencil Hardness | ≥ 2H |
| Impact Resistance (kg·cm) | ≥ 50 (no cracking) |
Advantages for Signage Applications
- Weather Resistance: PVDF coating protects against harsh UV rays, rain, and temperature fluctuations, ensuring signs remain vibrant for years.
- Lightweight & Easy to Fabricate: 1100 alloy is highly malleable, allowing easy cutting, bending, and forming into complex sign shapes.
- Excellent Color Retention: The fluoropolymer resin system prevents fading and chalking, maintaining a professional appearance.
- Corrosion Protection: Aluminum naturally resists rust, and the PVDF adds an extra barrier against chemicals and pollutants.
- Cost-Effective: 0.2mm thickness reduces material cost while still providing sufficient rigidity for flat signage.
- Customizable: Width, color, and temper can be tailored to your specific project needs.
Our manufacturing process is ISO9000 and ISO19011:2000 certified, ensuring strict quality control at every stage. We export to over 30 countries including North America, South America, Europe, Africa, and Asia, with annual export value exceeding US$2.5 million. Our coils are packed in wooden pallets with waterproof paper and steel strapping to prevent damage during transit from Qingdao, Tianjin, or Shanghai ports.
Choose Shandong Sino Steel Co., Ltd. for reliable supply, competitive pricing, and professional after-sales support. We welcome inquiries for bulk orders, sample requests, and custom specifications. Contact us today to discuss your signage project requirements.
Frequently Asked Questions
- What is the minimum order quantity (MOQ) for this 1100 aluminum coil? Our standard MOQ is 5 tons per size and color. For smaller quantities or sample orders, please contact our sales team for flexibility.
- Can the PVDF coating be applied to both sides? Yes, we offer single-sided and double-sided PVDF coating options. The standard product has coating on one side with a primer on the back. Custom requirements are available upon request.
- How long does the coating last under outdoor conditions? PVDF coated aluminum typically maintains its appearance for 10-15 years depending on environmental exposure. Our coating formulation meets AAMA 2605 standards for high-performance architectural coatings.
- What colors are available? We offer a wide range of RAL colors, metallic finishes, and custom colors. Please provide your color code or reference sample for an exact match.
- Is the coil suitable for interior signage? Absolutely. The 0.2mm thickness and smooth surface make it ideal for both indoor and outdoor signage, including channel letters, light boxes, and flat panels.
- How is the product packaged to avoid scratches? Each coil is wrapped with protective foam, waterproof paper, and steel strapping, then packed in a wooden crate or pallet. Internal spool eyes are protected with plastic caps.
- Do you provide sample rolls before placing a bulk order? Yes, we can provide A4 size samples or small coil samples (subject to shipping cost). Please contact us to arrange.
- What is the lead time for production? Typical lead time is 15-20 working days after receiving deposit and final specification confirmation. Rush orders may be possible depending on current production schedule.
