Help CenterConstant Thin‑section Ball Bearings K11008CP0 K11008XP0 K11008AR0 For Robot Joints 110×126×8mm
Product Spotlights
2. Type A/C/X constructions are available.
3. Compact structure, light-weight , low friction, stable rotation, high limiting speed
4. Higher load capacity & rigidity , high precision
5. Widely used in robot joints, radar, aerospace, medical precision equipment and automation / test equipment
Related Products
-
K02508AR0 Kaydon Angular Contact Thin Section Ball BearingsUS$ 1 - 100000MOQ: 1 Piece -
KAA15CL0 Thin-section Bearings Supplier 1.5X1.875X0.1875 Inch Luoyang BearingUS$ 1 - 100000MOQ: 1 Piece
-
KA020CP0 China Thin Section Bearings 2x2.5x0.25inch Thin-wall Bearing S-upplier StockUS$ 1 - 100000MOQ: 1 Piece
-
KA025CP0 Thin Wall Ball Bearing 2.5x3x0.25inch Luoyang Bearing Industrial Robots UseUS$ 1 - 100000MOQ: 1 Piece
-
KA030CP0 China Thin Section Bearings Suppliers 3x3.5x0.25inch ZYS BearingUS$ 1 - 100000MOQ: 1 Piece
Thin Section Ball Bearing Metric Series Bearings -8mm
Product Overview:

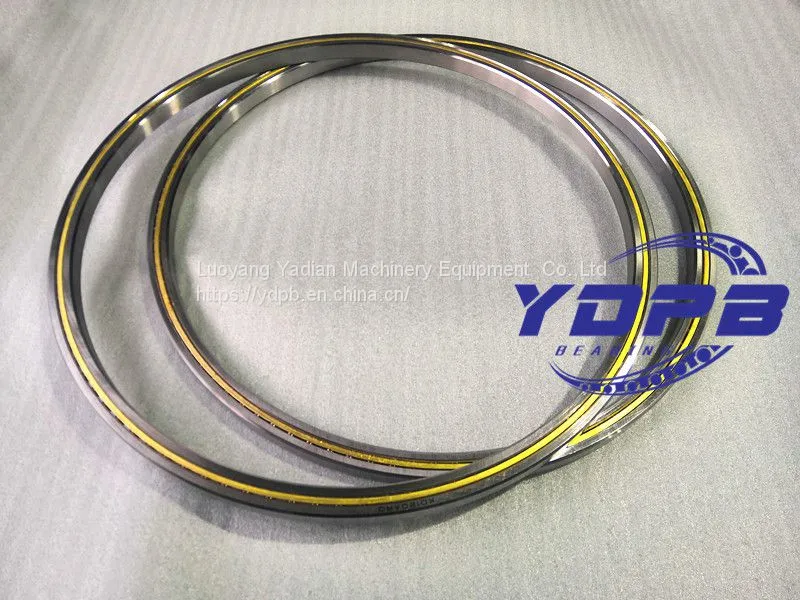

This series bearings are metric Reali‑Slim thin‑section ball bearings with constant 8mm cross‑section. The cross‑section remains unchanged despite increasing bore size, achieving ultra‑thin wall and lightweight structure for space‑limited precision rotary equipment.
Three basic types available: Type‑C radial contact (CP0), Type‑A angular contact (AR0), Type‑X four‑point contact (XP0).
Accuracy grades P0‑P4 are optional. Open, shielded and stainless‑steel versions can be customized .
Structure Types:
1. Type‑C (CP0) Radial contact
Mainly for radial load, limited axial capacity. Low friction torque, suitable for high‑speed light‑medium load applications.
2. Type‑A (AR0) Angular contact
Carry combined radial + single‑direction axial load (30° contact angle). Pair mounting for bidirectional thrust. Good rigidity for precision rotary parts.
3. Type‑X (XP0) Four‑point contact
Single bearing supports radial, bidirectional axial and moment loads. Can replace two angular contact bearings, simplify mechanical structure and reduce component count. Ideal for robot joints and rotary tables with overturning moment.
kaydon thin-section bearings Structure:
Open Radial Contact Ball Bearings
Open Angular Contact Ball Bearings
Open Four Point Contact Ball Bearings
Sealed Radial Contact Ball Bearings
Sealed Four Point Contact Ball Bearings
Application:
Robot joints
medical precision equipment
optical rotary tables
aerospace
automation test instruments
radar turntables and other compact precision rotary mechanisms.
If you have need, customization is available according to drawings or samples. pls contact with us anytime~
Parameters:
| Deep groove ball bearing (C type ) ----8mm Series | ||||||||
| Bearing type |
Dimensions | Radial Capacities in Pounds(kg) | Weight (kg) |
|||||
| d | D | H | L1 | L2 | Static | Dyn. | ||
| K02508CP0 | 25 | 41 | 8 | 30.9 | 35.1 | 303 | 255 | 0.06 |
| K05008CP0 | 50 | 66 | 8 | 55.9 | 60.1 | 556 | 350 | 0.08 |
| K06008CP0 | 60 | 76 | 8 | 65.9 | 70.1 | 656 | 384 | 0.09 |
| K07008CP0 | 70 | 86 | 8 | 75.9 | 80.1 | 758 | 417 | 0.1 |
| K08008CP0 | 80 | 96 | 8 | 85.9 | 90.1 | 859 | 448 | 0.11 |
| K09008CP0 | 90 | 106 | 8 | 95.9 | 100.1 | 959 | 478 | 0.13 |
| K10008CP0 | 100 | 116 | 8 | 105.9 | 110.1 | 1061 | 507 | 0.14 |
| K11008CP0 | 110 | 126 | 8 | 115.9 | 120.1 | 1162 | 534 | 0.15 |
| K12008CP0 | 120 | 136 | 8 | 125.9 | 130.1 | 1262 | 561 | 0.16 |
| K13008CP0 | 130 | 146 | 8 | 135.9 | 140.1 | 1364 | 588 | 0.18 |
| K14008CP0 | 140 | 156 | 8 | 145.9 | 150.1 | 1465 | 613 | 0.19 |
| K15008CP0 | 150 | 166 | 8 | 155.9 | 160.1 | 1565 | 638 | 0.2 |
| K16008CP0 | 160 | 176 | 8 | 165.9 | 170.1 | 1666 | 662 | 0.2 |
| K17008CP0 | 170 | 186 | 8 | 175.9 | 180.1 | 1767 | 686 | 0.2 |
| K18008CP0 | 180 | 196 | 8 | 185.9 | 190.1 | 1868 | 709 | 0.21 |
| K19008CP0 | 190 | 206 | 8 | 195.9 | 200.1 | 1944 | 725 | 0.21 |
| K20008CP0 | 200 | 216 | 8 | 205.9 | 210.1 | 2045 | 748 | 0.22 |
| K25008CP0 | 250 | 266 | 8 | 255.9 | 260.1 | 2550 | 853 | 0.28 |
| K30008CP0 | 300 | 316 | 8 | 305.9 | 310.1 | 3055 | 949 | 0.35 |
| K32008CP0 | 320 | 336 | 8 | 325.9 | 330.1 | 3257 | 985 | 0.39 |
| K34008CP0 | 340 | 356 | 8 | 345.9 | 350.1 | 3459 | 1016 | 0.42 |
| K36008CP0 | 360 | 376 | 8 | 365.9 | 370.1 | 3636 | 1050 | 0.46 |
|
Four point contact ball bearing (X type ) ----8mm Series |
||||||||||||
| Bearing type | Dimensions | Capacities in Pounds(kg) |
Weight (kg) | |||||||||
| Radial Capacities in Pounds(kg) | Thrust Capacities in Pounds(kg) |
Moment (N-m) |
||||||||||
| d | D | H | L1 | L2 | Static. | Dyn. | Static. | Dyn. | Static. | Dyn. | ||
| K02508XP0 | 25 | 41 | 8 | 30.9 | 35.1 | 334 | 331 | 758 | 469 | 49 | 40 | 0.06 |
| K05008XP0 | 50 | 66 | 8 | 55.9 | 60.1 | 555 | 460 | 1389 | 666 | 158 | 98 | 0.08 |
| K06008XP0 | 60 | 76 | 8 | 65.9 | 70.1 | 656 | 506 | 1641 | 745 | 219 | 127 | 0.09 |
| K07008XP0 | 70 | 86 | 8 | 75.9 | 80.1 | 757 | 549 | 1894 | 819 | 290 | 158 | 0.1 |
| K08008XP0 | 80 | 96 | 8 | 85.9 | 90.1 | 859 | 591 | 2146 | 890 | 370 | 191 | 0.11 |
| K09008XP0 | 90 | 106 | 8 | 95.9 | 100.1 | 959 | 631 | 2399 | 959 | 461 | 228 | 0.13 |
| K10008XP0 | 100 | 116 | 8 | 105.9 | 110.1 | 1060 | 670 | 2651 | 1025 | 562 | 266 | 0.14 |
| K11008XP0 | 110 | 126 | 8 | 115.9 | 120.1 | 1162 | 707 | 2903 | 1090 | 672 | 307 | 0.15 |
| K12008XP0 | 120 | 136 | 8 | 125.9 | 130.1 | 1262 | 743 | 3156 | 1152 | 792 | 350 | 0.16 |
| K13008XP0 | 130 | 146 | 8 | 135.9 | 140.1 | 1363 | 778 | 3156 | 1212 | 923 | 395 | 0.18 |
| K14008XP0 | 140 | 156 | 8 | 145.9 | 150.1 | 1465 | 812 | 3661 | 1271 | 1063 | 442 | 0.19 |
| K15008XP0 | 150 | 166 | 8 | 155.9 | 160.1 | 1565 | 846 | 3914 | 1329 | 1213 | 492 | 0.2 |
| K16008XP0 | 160 | 176 | 8 | 165.9 | 170.1 | 1666 | 878 | 4166 | 1386 | 1373 | 543 | 0.2 |
| K17008XP0 | 170 | 186 | 8 | 175.9 | 180.1 | 1767 | 910 | 4418 | 1441 | 1543 | 596 | 0.2 |
| K18008XP0 | 180 | 196 | 8 | 185.9 | 190.1 | 1868 | 941 | 4671 | 1495 | 1722 | 651 | 0.21 |
| K19008XP0 | 190 | 206 | 8 | 195.9 | 200.1 | 1944 | 963 | 4860 | 1536 | 1888 | 701 | 0.21 |
| K20008XP0 | 200 | 216 | 8 | 205.9 | 210.1 | 2045 | 992 | 5113 | 1588 | 2086 | 759 | 0.22 |
| K25008XP0 | 250 | 266 | 8 | 255.9 | 260.1 | 2550 | 1133 | 6375 | 1840 | 3226 | 1075 | 0.28 |
| K30008XP0 | 300 | 316 | 8 | 305.9 | 310.1 | 3055 | 1261 | 7638 | 2076 | 4614 | 1429 | 0.35 |
| K32008XP0 | 320 | 336 | 8 | 325.9 | 330.1 | 3257 | 1310 | 8143 | 2166 | 5238 | 1580 | 0.39 |
| K34008XP0 | 340 | 356 | 8 | 345.9 | 350.1 | 3459 | 1350 | 8648 | 2255 | 5859 | 1728 | 0.42 |
| K36008XP0 | 360 | 376 | 8 | 365.9 | 370.1 | 3636 | 1396 | 9089 | 2330 | 6561 | 1890 | 0.46 |
| Bearing type |
Angular contact ball bearing (A type ) ----8mm Series |
||||||||||
| Dimensions |
Capacities in Pounds(kg) |
Weight (kg) |
|||||||||
| Radial Capacities in Pounds(kg) | Thrust Capacities in Pounds(kg) |
||||||||||
| d | D | H | L1 | L2 | L3 | Static. | Dyn. | Static. | Dyn. | ||
| K02508AR0 | 25 | 41 | 8 | 30.9 | 35.1 | 37.2 | 372 | 272 | 1073 | 561 | 0.06 |
| K05008AR0 | 50 | 66 | 8 | 55.9 | 60.1 | 62.2 | 656 | 367 | 1894 | 819 | 0.08 |
| K06008AR0 | 60 | 76 | 8 | 65.9 | 70.1 | 72.2 | 787 | 408 | 2273 | 925 | 0.09 |
| K07008AR0 | 70 | 86 | 8 | 75.9 | 80.1 | 82.2 | 896 | 440 | 2588 | 1009 | 0.10 |
| K08008AR0 | 80 | 96 | 8 | 85.9 | 90.1 | 92.2 | 1006 | 470 | 2903 | 1090 | 0.12 |
| K09008AR0 | 90 | 106 | 8 | 95.9 | 100.1 | 102.2 | 1137 | 505 | 3282 | 1182 | 0.13 |
| K10008AR0 | 100 | 116 | 8 | 105.9 | 110.1 | 112.2 | 1246 | 533 | 3598 | 1257 | 0.14 |
| K11008AR0 | 110 | 126 | 8 | 115.9 | 120.1 | 122.2 | 1356 | 561 | 3914 | 1329 | 0.15 |
| K12008AR0 | 120 | 136 | 8 | 125.9 | 130.1 | 132.2 | 1465 | 587 | 4229 | 1400 | 0.16 |
| K13008AR0 | 130 | 146 | 8 | 135.9 | 140.1 | 142.2 | 1596 | 618 | 4608 | 1482 | 0.17 |
| K14008AR0 | 140 | 156 | 8 | 145.9 | 150.1 | 152.2 | 1706 | 643 | 4923 | 1549 | 0.18 |
| K15008AR0 | 150 | 166 | 8 | 155.9 | 160.1 | 162.2 | 1815 | 667 | 5239 | 1615 | 0.20 |
| K16008AR0 | 160 | 176 | 8 | 165.9 | 170.1 | 172.2 | 1946 | 696 | 5618 | 1691 | 0.20 |
| K17008AR0 | 170 | 186 | 8 | 175.9 | 180.1 | 182.1 | 2055 | 720 | 5933 | 1754 | 0.21 |
| K18008AR0 | 180 | 196 | 8 | 185.9 | 190.1 | 192.1 | 2165 | 742 | 6249 | 1816 | 0.22 |
| K19008AR0 | 190 | 206 | 8 | 195.9 | 200.1 | 202.1 | 2296 | 769 | 6628 | 1889 | 0.23 |
| K20008AR0 | 200 | 216 | 8 | 205.9 | 210.1 | 212.1 | 2405 | 791 | 6944 | 1948 | 0.23 |
| K25008AR0 | 250 | 266 | 8 | 255.9 | 260.1 | 262.1 | 2974 | 897 | 8585 | 2244 | 0.28 |
| K30008AR0 | 300 | 316 | 8 | 305.9 | 310.1 | 312.1 | 3564 | 999 | 10289 | 2532 | 0.33 |
| K32008AR0 | 320 | 336 | 8 | 325.9 | 330.1 | 332.1 | 3805 | 1039 | 10983 | 2645 | 0.36 |
| K34008AR0 | 340 | 356 | 8 | 345.9 | 350.1 | 352.1 | 4023 | 1073 | 11614 | 2745 | 0.38 |
| K36008AR0 | 360 | 376 | 8 | 365.9 | 370.1 | 372.1 | 4264 | 1110 | 12309 | 2854 | 0.40 |
Company Profile：
Luoyang Yadian Machinery Equipment Co., Ltd. is a comprehensive enterprise specializing in the R&D, production, and sales of precision bearings. With deep expertise in the precision bearing manufacturing sector, its products are widely applied in high-end CNC machine tools, industrial robots, humanoid robots, aerospace and defense, semiconductors, and medical equipment.
Luoyang Yadian specializes in the R&D and production of precision rotary table bearings, crossed roller bearings, crossed tapered roller bearings, and thin-section bearings. We also manufacture precision angular contact ball bearings, harmonic reducers in humanoid and industrial robots (including flexible bearings) and customized non-standard bearings. Our product sizes range from Φ3mm to Φ2500mm, meeting the customized matching needs of various industries and operating conditions.
Main products include YRT, YRTS, YRTM, and ZKLDF series rotary table bearings; RB, RE, RU, RA, RA-C, RAU, CRB, CRBC, CRBH, CRBS, CRBT, CRBTF, XU, XSU, and SX series crossed roller bearings; XR, JXR, and Z series crossed tapered roller bearings; CSF (CSG), SHF (SHG), flexible bearings, and RV series reducer bearings; KA, KB, KC, KD, KF, KG, JA, JB, JU, and JG series thin-section bearings; as well as precision machine tool spindle bearings and customized non-standard bearings.The company’s core advantages lie in its high precision, high rigidity, high stability, excellent quality at competitive prices, and flexible customization, providing professional matching services to numerous clients both at home and abroad.
Our products are widely used in high-end CNC machine tools, rotary tables, industrial robots and joints, humanoid robots and joints, aerospace and defense, medical equipment, as well as high-end instruments and optical equipment in the semiconductor industry. Furthermore, we have long served major scientific research institutes, enterprises, public institutions, and key national research projects. Our products have been exported to Germany, Italy, Russia, the United States, Japan, Spain, Switzerland, as well as other regions across Europe, America, the Middle East, and Southeast Asia, earning widespread popularity and acclaim in the global market.
