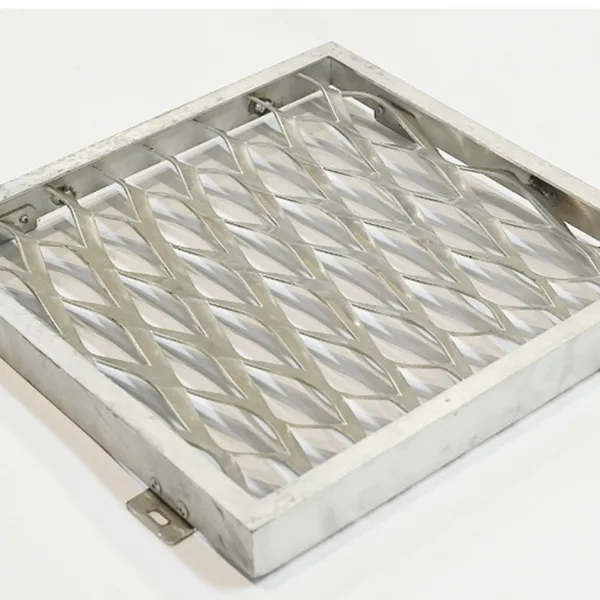

Welcome to Anping County Boli Hardware Wiremesh Products Factory, a trusted manufacturer since 1998 with over two decades of experience in metal fabrication and an annual export value of US$5–10 million. Our Semi-Automatic Assembly Architectural Ceiling Aluminum Grille in 1.0mm thickness is engineered to deliver precision, durability, and aesthetic appeal for modern building projects. Each grille is accompanied by a Mill Test Report, ensuring material traceability and quality assurance. This product combines efficient assembly design with the lightweight strength of aluminum, making it an ideal choice for architects and contractors seeking reliable ceiling solutions.
Our semi-automatic assembly process ensures consistent spacing and alignment, reducing installation time and labor costs. The 1.0mm aluminum alloy provides excellent rigidity while remaining easy to cut and handle on-site. Whether used for ventilation, sunshading, or decorative ceiling grids, this grille offers a professional finish that meets the demands of commercial, industrial, and residential applications.
Key Features & Benefits
- Material Excellence: High-grade aluminum alloy (6063/6061) with excellent corrosion resistance, suitable for indoor and semi-outdoor environments.
- Precision Thickness: 1.0mm standard thickness ensures structural integrity without excessive weight, supporting spans up to 1.5m depending on profile design.
- Semi-Automatic Assembly: Pre-engineered components allow quick clipping or snapping together, minimizing on-site welding or fastening.
- Versatile Surface Options: Available in powder coating, anodizing, or PVDF finishes; choose from a wide range of RAL colors or custom shades.
- Mill Test Report Included: Every batch comes with a certified test report verifying chemical composition and mechanical properties, giving you confidence in material quality.
- Easy Installation: Lightweight design reduces labor fatigue; optional suspension systems can be provided for ceiling mounting.
- Low Maintenance: Aluminum surface resists rust and stains; periodic cleaning with mild detergent keeps it looking new.
- Customizable Dimensions: Length, width, and profile shape can be tailored to your project requirements – contact us for non-standard sizes.
Technical Specifications
| Specification | Details |
| Material Grade | Aluminum 6063-T5 or 6061-T6 (optional) |
| Thickness | 1.0 mm (tolerance ±0.05mm) |
| Profile Width | 20mm, 25mm, 30mm, 40mm, 50mm, or custom |
| Length | Up to 6 meters per piece (custom shorter lengths available) |
| Surface Treatment | Powder coating (80–120μm), anodizing (AA15), or PVDF (40–60μm) |
| Color Options | White, silver, black, gray, bronze, metallic, or custom RAL |
| Assembly Method | Semi-automatic clip-in or snap-fit system (no screws exposed) |
| Weight per meter | Approx. 0.8–1.2 kg/m depending on profile |
| Mill Test Report | Available upon request (included with standard order) |

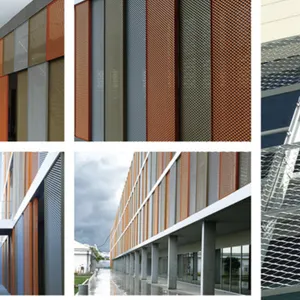

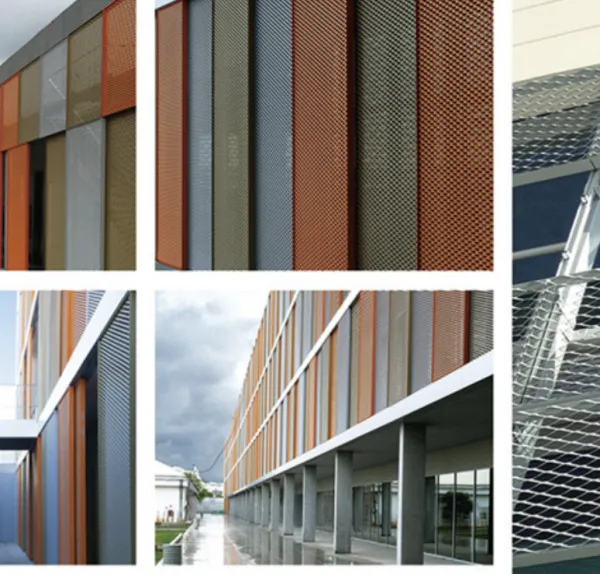

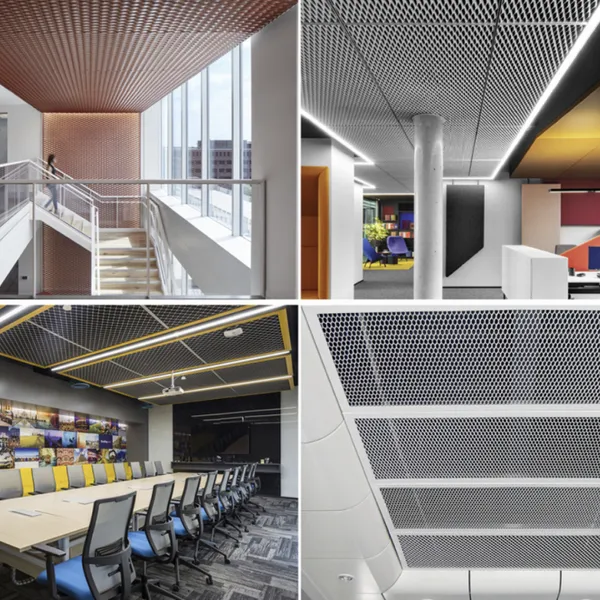

This grille is widely used in office buildings, shopping malls, airports, subway stations, hotels, and exhibition halls. Its open design facilitates air circulation and integrates seamlessly with lighting and HVAC systems. The semi-automatic assembly reduces the need for specialized tools, enabling faster project completion.
Why Choose Anping Boli?
With a 25+ year track record, we have supplied ceiling grilles to clients across North America, South America, Europe, Southeast Asia, Africa, and Oceania. Our annual export value of US$5–10 million reflects our commitment to quality and customer satisfaction. Each shipment undergoes rigorous inspection, and we provide Mill Test Reports to substantiate material compliance. Our factory in Hengshui, Hebei, China, is equipped with modern production lines, ensuring consistent output and competitive pricing.
We invite you to experience the difference of a product that balances performance, aesthetics, and cost-effectiveness. Whether you need a small batch for a boutique project or a large volume for a commercial development, we are ready to support your requirements. Contact us today for a quotation, sample, or technical consultation.
Frequently Asked Questions
-
Q: What aluminum alloy is used?
A: We primarily use 6063-T5 aluminum alloy, which offers excellent extrudability and corrosion resistance. 6061-T6 is available upon request for higher strength requirements. -
Q: Is the 1.0mm thickness standard for all sizes?
A: Yes, 1.0mm is the standard thickness. If you need a different thickness (e.g., 0.8mm or 1.2mm), we can customize the production. -
Q: How is the grille assembled? Do I need special tools?
A: Our semi-automatic assembly uses a clip-in or snap-fit mechanism. Only basic hand tools (like a rubber mallet) may be needed for alignment. Detailed installation manual is provided. -
Q: What is a Mill Test Report, and can I get one?
A: A Mill Test Report (MTR) certifies the chemical composition and mechanical properties of the aluminum. We provide an MTR with each shipment or upon request, free of charge. -
Q: Can I get custom colors or surface finishes?
A: Yes, we offer a wide range of RAL colors and finishes including powder coating, anodizing, and PVDF. Minimum order quantity may apply for custom colors. -
Q: What is the typical lead time?
A: For standard sizes and colors, lead time is 15–20 working days. Custom orders may take 20–30 working days, depending on complexity. -
Q: Do you provide samples?
A: Yes, we can send samples (≤30cm length) for freight collect. Please contact our sales team to arrange. -
Q: Is the grille suitable for outdoor use?
A: While the aluminum itself is corrosion-resistant, for outdoor applications we recommend PVDF coating or anodizing for better UV resistance. Please consult with our technical team for specific outdoor conditions.
We are confident that our Semi-Automatic Assembly Architectural Ceiling Aluminum Grille will meet your project expectations. With a combination of quality, documentation, and competitive pricing, Anping Boli is your reliable partner. Reach out to us for a customized solution today!
