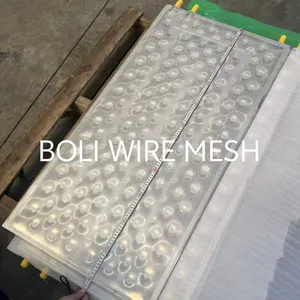

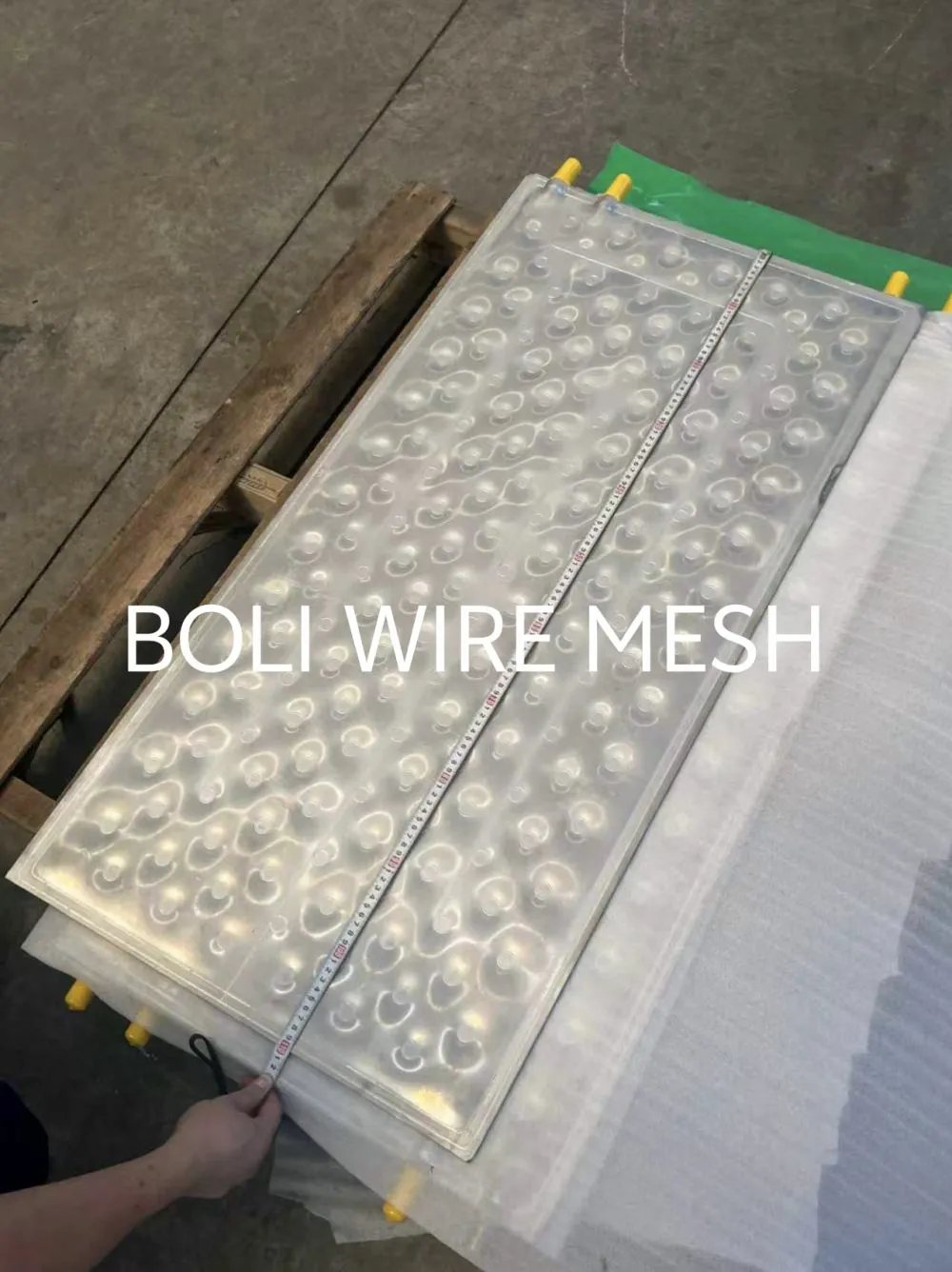

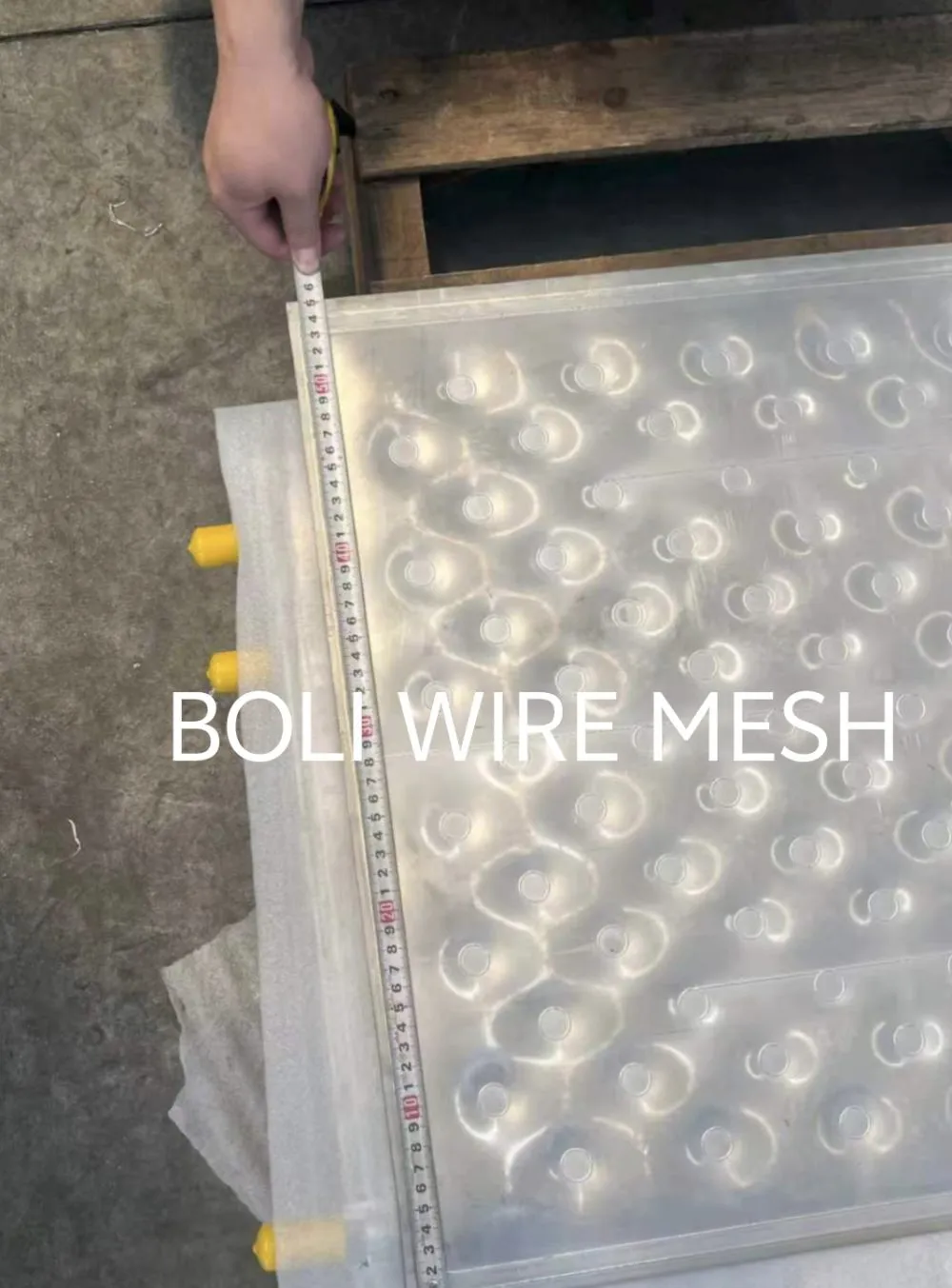

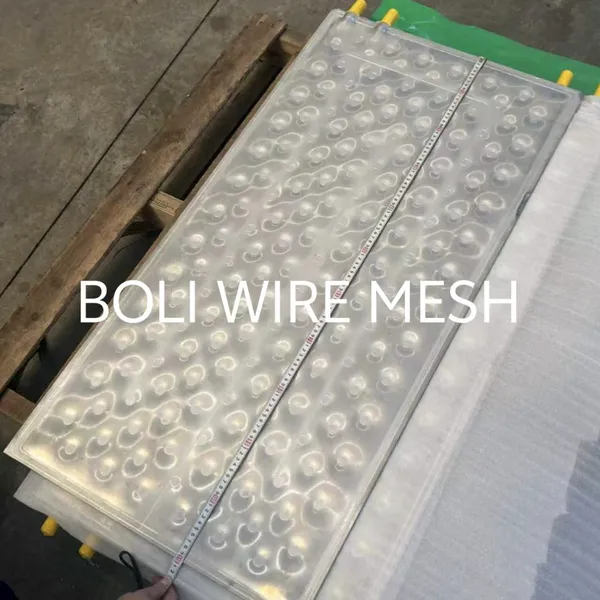

Dimple Board Stainless Steel Radiator Water Jacket, 316L Stainless Steel, 10kW Power, 220V/380V
Product Spotlights
316L stainless steel dimple board water jacket with 10kW power and 220V/380V input. Maximizes heat transfer via dimple plate design, resists corrosion in harsh environments, customizable dimensions, and easy installation. Backed by 20+ years of manufacturing experience and global export record.
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, 316L Stainless Steel
Power:
10kW
Voltage:
220V/380V (Optional)
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Dimple Board Stainless Steel Radiator Water Jacket, 304L Grade, 6kW Heat Transfer, IP54 EnclosureNegotiableMOQ: 1 Piece -
Semi-Auto Dimple Board Stainless Steel Radiator Water Jacket, 2.0mm Plate, 20 Bar Working PressureNegotiableMOQ: 1 Piece
-
Dimple Board Stainless Steel Radiator Water Jacket for Chemical Reactor Cooling and Heating SystemsNegotiableMOQ: 1 Piece
-
Customizable 304 Stainless Steel Dimple Board Water Jacket for Radiator – 1500W Power RatingNegotiableMOQ: 1 Piece
-
304 Stainless Steel Dimple Board Radiator Water Jacket With 12-Month Warranty and Mill Test ReportNegotiableMOQ: 1 Piece
Material
Other, 316L Stainless Steel
Power
10kW
Voltage
220V/380V (Optional)
Type
Dimple Board
Application
Radiator / Water Heating
Surface Finish
2B / Brushed (Optional)
Customizable Size
Yes (Upon Request)
Connection Type
Threaded / Flanged (Optional)
Brand
Boli (Anping County Boli Hardware Wiremesh Products Factory)
Warranty
12 Months
Premium 316L Stainless Steel Dimple Board Radiator Water Jacket – 10kW, 220V/380V
As a trusted manufacturer since 1998, Anping County Boli Hardware Wiremesh Products Factory brings decades of metal fabrication expertise to the production of our Dimple Board Stainless Steel Radiator Water Jacket. This 10kW unit is engineered with high-grade 316L stainless steel, offering superior corrosion resistance and thermal efficiency for demanding industrial heating applications. Whether you need to heat process water, maintain tank temperatures, or integrate into a closed-loop system, our water jacket delivers reliable performance with a compact dimple plate design that maximizes heat transfer surface area.
Key Features & Technical Specifications
| Parameter | Value |
| Material | 316L Stainless Steel (1.4404) |
| Rated Power | 10 kW |
| Voltage Options | 220V / 380V (3-phase available) |
| Design Type | Dimple Board / Embossed Plate |
| Max Operating Temperature | 200°C (392°F) – dependent on medium |
| Working Pressure | Up to 1.0 MPa (10 bar) – customizable |
| Connection Ports | Threaded (NPT/BSP) or Flanged (upon request) |
| Surface Finish | 2B mill finish, optional brushed or electropolished |
| Dimensions (L x W x H) | Customizable based on your requirements |
Why Choose Our Dimple Board Water Jacket?
- Superior Material: 316L stainless steel offers excellent resistance to chlorides, acids, and high-temperature environments, making it ideal for chemical, pharmaceutical, and food processing industries.
- Efficient Heat Transfer: The dimple (embossed) plate design creates turbulent flow, enhancing heat transfer coefficient by up to 30% compared to flat plate jackets.
- Flexible Power & Voltage: 10kW rated power with 220V or 380V input ensures compatibility with global electrical systems. Optional 3-phase configurations available.
- Customizable Dimensions: We can tailor the jacket size, port locations, and mounting brackets to fit your existing tank or vessel – no need for costly modifications.
- Robust Construction: Fully welded seams, no leaks, and pressure tested before shipment. Each unit is inspected for quality assurance.
- Easy Installation: Pre-drilled mounting holes, standard threaded connections, and clear installation manual included. Can be retrofitted onto cylindrical or rectangular tanks.
- Low Maintenance: Smooth surface prevents scale buildup and fouling, reducing cleaning downtime. The 316L grade resists pitting and crevice corrosion.
Benefits for Your Business
- Increase heating efficiency and reduce energy costs by up to 15% compared to traditional clamp-on or pipe coil heaters.
- Achieve precise temperature control for sensitive processes (e.g., fermentation, chemical reactions), thanks to uniform heat distribution.
- Extend equipment lifespan – 316L stainless steel provides long-term durability even in harsh environments like seawater or acidic media.
- Reduce downtime: quick-connect options and customizable ports allow for fast integration into existing systems.
Trust & Capability – Why Boli?
Anping County Boli Hardware Wiremesh Products Factory has been a reliable manufacturing partner since 1998. With annual export values between US$5 million and US$10 million, we serve clients across North America, South America, Europe, Southeast Asia, Africa, Oceania, the Middle East, and more. Our production facility is located in Hengshui, Hebei, China – a region known for wire mesh and metal fabrication. We ship from major ports: Tianjin, Qingdao, and Shanghai. Every water jacket is produced with strict quality control, and we offer customization services to meet your exact dimensional and functional requirements. Our team provides prompt technical support, fast quotations, and reliable after-sales service.
Ready to upgrade your heating system? Contact us today for a quote or to discuss your custom dimple board water jacket needs.
Frequently Asked Questions (FAQ)
-
Q: What is the difference between 316L and 304 stainless steel for water jackets?
A: 316L contains molybdenum, which provides superior resistance to chlorides (e.g., in seawater or brine) and acidic environments. It also has lower carbon content, minimizing carbide precipitation during welding. For most industrial heating applications where corrosion resistance is critical, 316L is the preferred choice. -
Q: Can this water jacket be used for both heating and cooling?
A: Yes, the dimple plate design is suitable for both heating and cooling applications. By circulating chilled water or glycol through the jacket, it can effectively remove heat from a process vessel. However, please confirm the required temperature range with our technical team to ensure proper material selection. -
Q: What is the typical lead time for a custom-sized water jacket?
A: For standard sizes, we can ship within 15–20 working days. Custom dimensions usually require 20–30 working days, depending on complexity. We can expedite for urgent orders – please contact us with your timeline. -
Q: Do you provide pressure ratings or certifications?
A: Our water jackets are designed and pressure tested to withstand up to 1.0 MPa (10 bar) at room temperature. For higher pressure requirements, we can reinforce the design upon request. We do not offer specific third-party certifications (e.g., ASME, CE) as standard, but we can arrange for inspection by a designated agency at additional cost. Please inform us of your regulatory needs. -
Q: How do I connect the water jacket to my existing piping?
A: The jacket comes with standard threaded ports (NPT or BSP, male or female). We can also provide flanged connections (ANSI, DIN, JIS, etc.) or custom adapters. A detailed installation guide is included. If you need welding couplings, please specify. -
Q: Is the 10kW power rating sufficient for large tanks?
A: The required power depends on the volume of liquid, desired temperature rise, and heat loss. 10kW is suitable for tanks up to approximately 500 liters (for moderate temperature increases). For larger tanks or faster heating, we can supply higher wattage (e.g., 20kW, 30kW) or multiple jackets. Our team can help you calculate the ideal configuration. -
Q: Can I use the water jacket with a heat transfer fluid other than water?
A: Yes, the jacket is compatible with water, glycol mixtures, thermal oils, and other fluids as long as they are chemically compatible with 316L stainless steel. Please provide the fluid composition and temperature range so we can advise on gasket materials and port sealants. -
Q: What is the warranty period?
A: We offer a 12-month warranty against manufacturing defects. This covers leaks, weld failures, and material defects under normal operating conditions. The warranty does not cover damage from misuse, improper installation, or chemical attack. Extended warranty options are available upon negotiation.
Still have questions? Our technical sales team is ready to assist you. Contact us via email or request a quote with your specific requirements, and we will respond within 24 hours.
