Established in 1998, Anping County Boli Hardware Wiremesh Products Factory has been a trusted manufacturer of industrial separation equipment, exporting to over 20 countries worldwide with an annual export value of US$5-10 million. Our Flatbed Basket Centrifuge, 304SS, Touch Screen PLC, 1.5kW is specifically designed for fine crystal separation in demanding applications. Combining high-grade stainless steel construction with advanced PLC automation, this centrifuge offers exceptional reliability, precision control, and enhanced productivity – a perfect solution for chemical, pharmaceutical, and food processing industries.
The machine features a flatbed basket design that ensures stable operation even at high rotational speeds, while the 304 stainless steel material provides excellent corrosion resistance and easy cleaning. The integrated touch screen PLC system allows operators to set and monitor parameters such as rotation speed, separation time, and discharge cycles with a simple interface, reducing human error and improving consistency. With a powerful 1.5kW motor, it delivers strong centrifugal force to efficiently separate fine crystals from liquid, maximizing yield and minimizing downtime.
Key Features & Technical Specifications
- High-Grade 304 Stainless Steel – All wetted parts are made of 304SS, offering excellent resistance to acids, alkalis, and other corrosive media, ensuring long service life and product purity.
- Touch Screen PLC Control – User-friendly interface with customizable programs for different crystal types, enabling precise control of speed, time, and cycle.
- 1.5kW Energy-Efficient Motor – Provides sufficient centrifugal force (up to 1,500 G) for fine crystal separation while consuming less power compared to traditional models.
- Flatbed Basket Design – Low center of gravity reduces vibration, enhances stability, and simplifies installation and maintenance.
- Automatic Discharge Function – Optional scraper or hydraulic discharge mechanism for continuous operation, adaptable to your production line.
- Safety Features – Equipped with vibration sensors, over-speed protection, and interlock door switch to ensure operator safety.
- Compact Footprint – Space-saving design suitable for workshop environments with limited floor area.
| Parameter | Specification |
| Model | BL-BC-600 (Customizable) |
| Basket Diameter | 600 mm (other sizes available) |
| Rated Power | 1.5 kW |
| Max Speed | 1,500 rpm |
| Centrifugal Force | Up to 1,500 G |
| Crystal Size Range | 0.1 – 5 mm (typical) |
| Material of Construction | 304 Stainless Steel |
| Control Type | Touch Screen PLC |
| Voltage | 380V / 50Hz (customizable) |

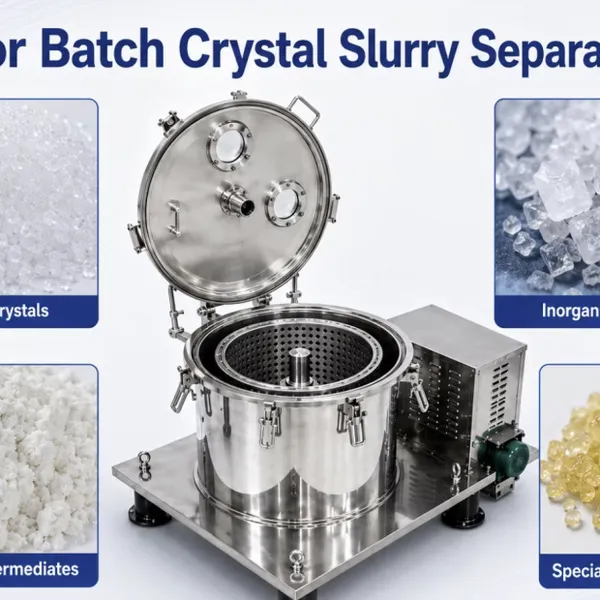

This centrifuge is ideal for separating fine crystals from mother liquor in industries such as pharmaceutical intermediates, fine chemicals, food additives, and salt production. The PLC system allows storage of up to 10 recipes, making it easy to switch between different products. The 304SS surface can be polished to a mirror finish (Ra ≤ 0.4μm) to meet GMP requirements if needed.
Customer Benefits
- Higher Yield – Precise speed control prevents crystal breakage, improving recovery rate by up to 5%.
- Lower Maintenance – 304SS construction resists corrosion, reducing replacement frequency.
- Easy Operation – Touch screen with intuitive menus reduces training time for operators.
- Faster Batch Times – Automated cycles shorten separation time from 30 minutes to under 15 minutes for typical batches.
- Consistent Quality – PLC eliminates human error, ensuring every batch meets the same specification.
At Anping County Boli Hardware Wiremesh Products Factory, we have been manufacturing industrial wire mesh and separation equipment since 1998. Our factory is located in Hengshui, Hebei, China, with convenient access to Tianjin, Qingdao, and Shanghai ports. With an annual export value of US$5-10 million, we serve markets across North America, South America, Europe, Southeast Asia, Africa, Oceania, and the Middle East. Every machine undergoes rigorous quality testing before shipment, and we offer comprehensive after-sales support including technical documentation, spare parts, and remote troubleshooting. Contact us today to discuss your fine crystal separation requirements – we can customize the basket size, motor power, and discharge system to perfectly match your production needs.
Frequently Asked Questions
1. What materials can this centrifuge handle?
It is designed for fine crystal slurries, including chemical intermediates, pharmaceuticals, food crystals, and inorganic salts. The 304SS construction is suitable for most non-halogen, non-strong acid environments.
2. Is the machine easy to clean?
Yes. The 304SS basket and housing have smooth surfaces with no dead corners. Optional CIP (Clean-in-Place) nozzles can be installed for automated cleaning.
3. Can the PLC program be customized?
Absolutely. The touch screen PLC allows you to set up to 10 different recipes with parameters for speed, time, acceleration, and deceleration. We can also program specific sequences for your process.
4. What is the typical delivery time?
Standard models are available within 30-45 days after order confirmation. Customized versions may require 45-60 days depending on specifications.
5. Does the machine require special installation?
No. It is a self-contained unit with a flatbed base that can be placed on a level concrete floor. We provide a detailed installation manual and video support.
6. What safety features are included?
It includes an emergency stop button, vibration monitoring, over-speed protection, and a door interlock that prevents operation when the lid is open.
7. Can I get a sample test before purchasing?
Yes, we offer a testing service. You can send us your material, and we will run a separation test in our lab, providing a free report with recommended parameters.
8. What warranty do you provide?
We offer a 12-month warranty from the date of shipment covering manufacturing defects. Extended warranty and spare parts are available upon request.
