Help CenterKAYDON NF160CP0 NF160AR0 NF160XP0 With Brass Cage 16.0×17.5×0.75inch For Optical Rotary Platforms Custom Available
Product Spotlights
2. Type A/C/X constructions are available.
3. Compact structure, light-weight , low friction, stable rotation
4. Higher load capacity & rigidity , high precision
5. Widely used in robotics, radar, medical CT and optical rotary platforms
Related Products
-
KAYDON NF180CP0 NF180AR0 NF180XP0 With Brass Cage 18.0×19.5×0.75inch For Optical Rotary Platforms Custom AvailableNegotiableMOQ: 1 Combo -
NF200CP0 NF200AR0 NF200XP0 Material And Coat Custom Available 20.0×21.5×0.75inch For Industrial Robot JointsNegotiableMOQ: 1 Combo
-
NG040CP0 NG040AR0 NG040XP0 KAYDON Custom Bearings For Optical Scanning Equipment Size 4.0×6.0×1inchNegotiableMOQ: 1 Combo
-
NG042CP0 NG042AR0 NG042XP0 KAYDON Custom Bearings For Optical Scanning Equipment Size 4.25×6.25×1inchNegotiableMOQ: 1 Combo
-
NG045CP0 NG045AR0 NG045XP0 For Food‑processing Machinery China Supplier Size 4.5×6.5×1inchNegotiableMOQ: 1 Combo
NF Series Cross‑Section Thin-Section Ball Bearing
Product Overview:
NF series are imperial 0.75inch ( 19.05mm ) constant cross‑section thin‑section ball bearings . The cross‑section dimension remains unchanged as bore diameter increases, balancing space‑saving performance and higher load capacity.
Rings and balls are standardly made of GCr15 (AISI52100) high‑carbon chromium bearing steel. 440C / 304 / 316L stainless steel and Endurakote hard‑chrome coating are optional.
Precision grades cover P4/P5/P6.
Three structures are available: Type‑A angular contact, Type‑C radial contact and Type‑X four‑point contact, capable of radial load, axial load and overturning moment.
Non‑standard customization per drawings & samples is supported. Dimensions are fully interchangeable with imported Kaydon NF series, ideal for precision equipment with large hollow bore, moderate load and limited installation space 。

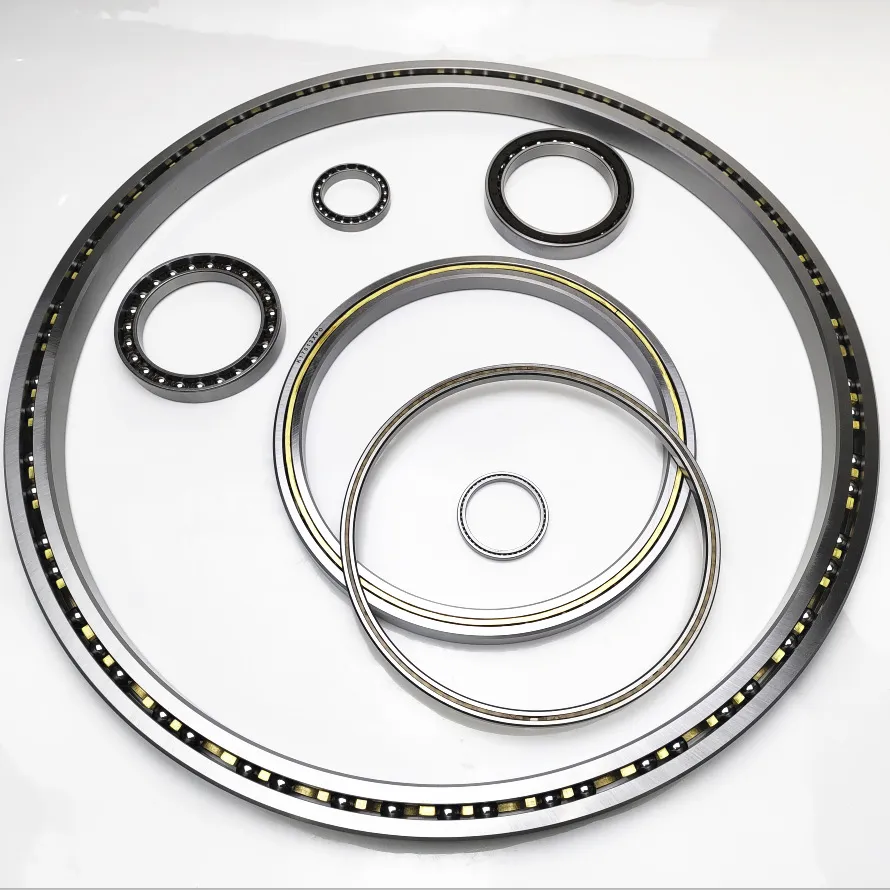

kaydon thin-section bearings Structure:
Open Radial Contact Ball Bearings (KAA,KA, KB, KC, KD, KF, KG series)
Open Angular Contact Ball Bearings (KAA,KA, KB, KC, KD, KF, KG series)
Open Four Point Contact Ball Bearings (KAA,KA, KB, KC, KD, KF, KG series)
Sealed Radial Contact Ball Bearings (JHA, JA, JB, JU. JG series)
Sealed Four Point Contact Ball Bearings ( JHA, JA, JB, JU, JG series)
Application:
1. Industrial robot joints & rotary units
2. Precision CNC rotary tables & indexing plates
3. Medical inspection & imaging equipment
4. Optical instruments & testing instruments
5. Semiconductor processing equipment
6. Security radar & monitoring PTZ
7. Automatic packaging equipment
If you have need, customization is available according to drawings or samples. pls contact with us anytime~
Parameters:
| Item No. | Dimensiom | Basic Cap | Unit | Interchange | ||
| (inch / mm) |
(N) |
weight | ||||
| d | D | Cor | Cr | Kg | INA | |
| NF160CP0 | 16.0 | 17.5 | 84010 | 28140 | 3.22 | CSCF160 |
406.4 |
444.5 | |||||
