Welcome to Hengshui Ruibin New Materials LLC – your trusted manufacturer of custom perforated cable trays. Since 2019, we have specialized in producing high-quality fiberglass and galvanized steel cable tray solutions tailored for diverse project requirements. Our products combine the corrosion resistance of fiberglass with the strength of galvanized steel, offering a durable and cost-effective cable management system. With ISO9001 certification and a dedicated team of 101-200 employees, we ensure every tray meets rigorous international standards, making us a preferred partner for projects worldwide.

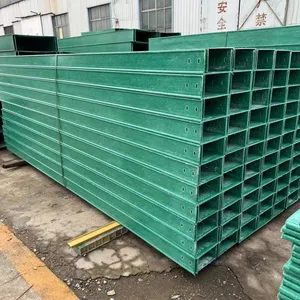

Our Custom Perforated Fiberglass and Galvanized Steel Cable Tray is engineered to provide optimal ventilation, easy cable routing, and long-term reliability. The perforated design allows heat dissipation and prevents moisture accumulation, while the dual-material construction offers flexibility for both indoor and outdoor installations. Whether you need a standard size or a fully customized solution, our factory (1,000-3,000 sqm) is equipped to deliver precision-engineered trays that fit your exact specifications.
Key Features & Technical Specifications
Dual-Material Construction: Fiberglass provides excellent corrosion resistance in chemical or humid environments; galvanized steel ensures high mechanical strength and load-bearing capacity.
Perforated Design: Round or square perforations (customizable) allow airflow, reduce cable overheating, and simplify cable tie-down.
Customizable Dimensions: Width, height, length, and thickness can be tailored to your project requirements. Standard widths range from 200mm to 600mm, with custom options available.
Surface Treatment: Hot-dip galvanized steel for maximum rust protection; fiberglass sections are UV-stabilized and fire-retardant (optional).
Easy Installation: Lightweight yet strong, with pre-drilled holes and splice plates for quick assembly. Can be installed in cable trays, ladder trays, or troughs.
Load Capacity: Designed to support light, medium, or heavy cable loads. Load tables are provided upon request for engineering verification.
Standards & Certification: Manufactured under ISO9001 quality management system, compliant with international cable tray standards (e.g., NEMA, IEC equivalents).
Applications: Widely used in power plants, telecommunication towers, data centers, oil & gas facilities, chemical plants, and commercial buildings.
| Parameter | Standard Range | Custom Options |
|---|---|---|
| Material | Fiberglass + Galvanized Steel | Stainless steel, Aluminum (upon request) |
| Width (mm) | 200, 300, 400, 500, 600 | 100-1200 mm |
| Height (mm) | 50, 100, 150 | 30-300 mm |
| Thickness (mm) | 1.5, 2.0, 2.5 | 1.0-3.0 mm |
| Perforation Pattern | Round 10mm / Square 15mm | Custom sizes & spacing |
| Surface Finish (Steel) | Hot-dip Galvanized (≥65μm) | Pre-galvanized, powder coating |
| Load Rating | Light (75 kg/m) / Medium (150 kg/m) / Heavy (300 kg/m) | Custom per design |
Benefits to Your Projects: By choosing our custom perforated cable tray, you gain a system that adapts to complex layouts, reduces installation time, and minimizes maintenance costs. The open design accelerates cable cooling, extending the lifespan of your cables. Additionally, the combination of fiberglass and galvanized steel provides a lightweight yet robust solution that resists corrosion, UV rays, and chemical exposure – ideal for harsh environments like chemical plants or coastal areas.
Why Choose Hengshui Ruibin New Materials LLC?
As a manufacturer with annual export value of US$2.5-5 million, we have supplied products to markets across North America, South America, Europe, Asia, Africa, and Oceania. Our factory spans 1,000-3,000 square meters, employing 101-200 skilled workers dedicated to quality control and innovation. We hold ISO9001 and ISO9000 certifications, ensuring every production step is traceable and consistent. Our main ports are Tianjin and Qingdao, offering efficient logistics for global shipping. With a strong focus on customization, we provide free technical drawings, samples, and engineering support to help you select the optimal tray configuration. Contact us today to discuss your project requirements – we are committed to delivering cable management solutions that exceed expectations.
Frequently Asked Questions
What is the difference between fiberglass and galvanized steel sections?
Fiberglass offers superior corrosion resistance in acidic or humid environments, while galvanized steel provides higher mechanical strength and fire resistance. Our trays combine both materials to optimize performance for each project.Can you produce non-standard perforation patterns?
Yes, we can customize the hole size, shape (round, square, slotted), and spacing according to your cable routing requirements. Please provide a drawing or specification.How is the tray protected against rust?
The steel portion is hot-dip galvanized with a zinc coating thickness of at least 65μm, complying with ASTM A123. Fiberglass components are inherently corrosion-resistant and require no additional coating.What is the typical lead time for a custom order?
Lead time depends on quantity and complexity. For standard sizes, it is usually 15-20 days; for fully customized trays, 25-35 days. Rush orders are available upon request.What is the minimum order quantity (MOQ)?
MOQ varies by product. For standard cable trays, it is 50 meters; for custom designs, please consult our sales team for a tailored quotation.Do you provide installation manuals or technical support?
Yes, we offer detailed installation guides, assembly drawings, and optional on-site technical support (subject to project scope). Our engineers are available for remote consultation.Are your products certified for international projects?
Our factory is ISO9001 certified, ensuring consistent quality. We can also provide test reports and comply with international standards like NEMA VE 1 or IEC 61537. Specific certifications can be discussed based on your project location.Can I get a sample before placing a bulk order?
Certainly. We can produce a sample for your approval. Sample cost is negotiable, and it will be deducted from the final order quantity.
With over 5 years of manufacturing experience and a global customer base, Hengshui Ruibin New Materials LLC is your reliable partner for custom perforated cable trays. Our commitment to quality, flexibility, and on-time delivery has earned us repeat business from clients in 20+ countries. Request a quote or drawing today – let us engineer the perfect cable management solution for your next project.
