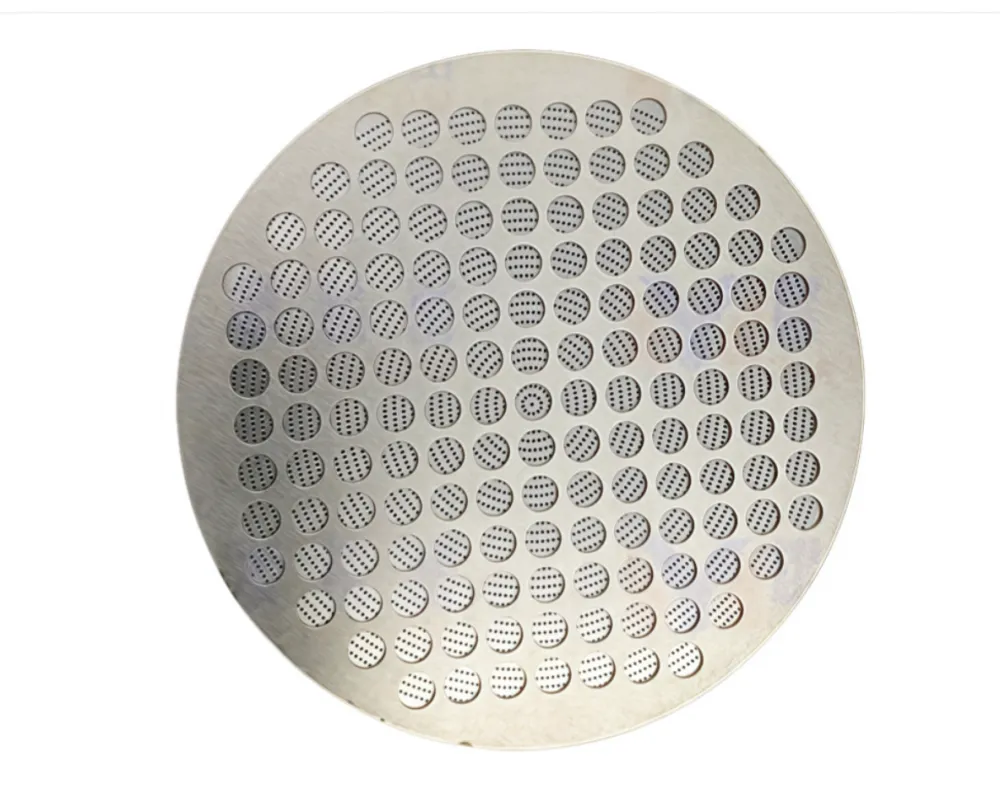

Premium 304 Stainless Steel Photo-etched Mesh – Precision Filtration Solution
As a leading manufacturer Anping County Boli Hardware Wiremesh Products Factory (established in 1998), we specialize in producing high-precision photo-etched meshes made from 304 stainless steel. Our mesh offers an aperture size of 0.1mm ± 0.005mm, ensuring consistent and reliable filtration performance. Leveraging over two decades of expertise and an annual export value of US$5-10 million, we deliver products that meet the rigorous demands of global industries including chemical, pharmaceutical, food processing, and water treatment.
The photo-etching process allows for extremely tight tolerances and burr-free edges, making our mesh ideal for fine filtration where even microscopic particles must be captured. Each panel is manufactured from premium 304 stainless steel, offering excellent corrosion resistance, durability, and high-temperature stability. Whether you need round holes, square holes, or custom shapes, we can tailor the mesh to your exact specifications.
Key Features & Benefits
- Unmatched Precision: Aperture tolerance of ±0.005mm ensures consistent particle retention.
- Burr-Free Surface: Photo-etching eliminates mechanical deformation, providing smooth edges for easy cleaning and long service life.
- High Open Area: Optimized hole patterns maximize flow rate while maintaining filtration efficiency.
- Superior Material: 304 stainless steel offers excellent resistance to acids, alkalis, and high temperatures (up to 800°C).
- Customizable Dimensions: Available in various thicknesses (0.05mm – 0.5mm), panel sizes, and hole shapes per your request.
- Consistent Quality: Each batch is inspected with advanced optical measurement tools to guarantee tight tolerances.
Technical Specifications
| Material | 304 Stainless Steel (1.4301) |
| Hole Diameter | 0.1mm ± 0.005mm (other sizes available) |
| Sheet Thickness | 0.05mm – 0.5mm (customizable) |
| Open Area | Up to 40% (depending on pattern) |
| Surface Finish | Matte or bright annealed |
| Operating Temperature | -200°C to +800°C |
| Packaging | Interleaved paper, foam, or custom crates |
Applications
- Chemical Filtration: Separation of catalysts, particles, and impurities.
- Pharmaceutical & Food: Sterile filtration, powder sifting, and liquid clarification.
- Water Treatment: Micro-screening for industrial and municipal systems.
- Automotive & Aerospace: Fuel and oil filtration, air intake screens.
- Electronics: EMI shielding, sensor components, and precision sieves.
Our photo-etched mesh is produced using state-of-the-art chemical etching lines that guarantee repeatability from lot to lot. With a factory located in Hengshui, Hebei and convenient shipping ports including Tianjin, Qingdao, Shanghai, and Foshan, we ensure timely delivery to customers across North America, South America, Europe, Southeast Asia, Africa, Oceania, the Middle East, and more. Since 1998, we have continuously invested in R&D and quality control, resulting in a defect rate of less than 0.5%.
We understand that filtration requirements vary, so we offer free technical consultation and custom design services. Whether you need a standard 0.1mm mesh or a complex multi-hole pattern, our team can provide a solution tailored to your process. Contact us today for a quote or sample request.
Frequently Asked Questions
-
What is the typical lead time for custom orders?
Lead time depends on order quantity and complexity. Standard orders ship within 10-15 working days; custom orders may take 15-25 working days. -
Can you provide samples for testing before bulk purchase?
Yes, we offer free samples (shipping cost may apply) for evaluation. Please contact our sales team. -
What is the maximum panel size you can produce?
Maximum panel size is 600mm x 1200mm, but we can fabricate smaller or custom sizes. -
Is the mesh suitable for use in food contact applications?
304 stainless steel is food-grade and compliant with FDA regulations. Our mesh is free from harmful coatings. -
How do you ensure the 0.1mm ±0.005mm tolerance?
We use laser measurement systems and optical inspection for every production batch, with certificates available upon request. -
Do you offer different hole patterns (e.g., round, square, slotted)?
Yes, we can produce round, square, hexagonal, or custom-shaped holes based on your design. -
What is the minimum order quantity (MOQ)?
MOQ for standard sizes is 10 sheets; for custom sizes, please inquire. -
Can the mesh be cut or formed after etching?
Yes, the material can be cut, rolled, or stamped using conventional methods. We also offer pre-cut pieces.
*Note: All specifications are subject to change without notice. Please consult with our engineers for your specific application requirements.
