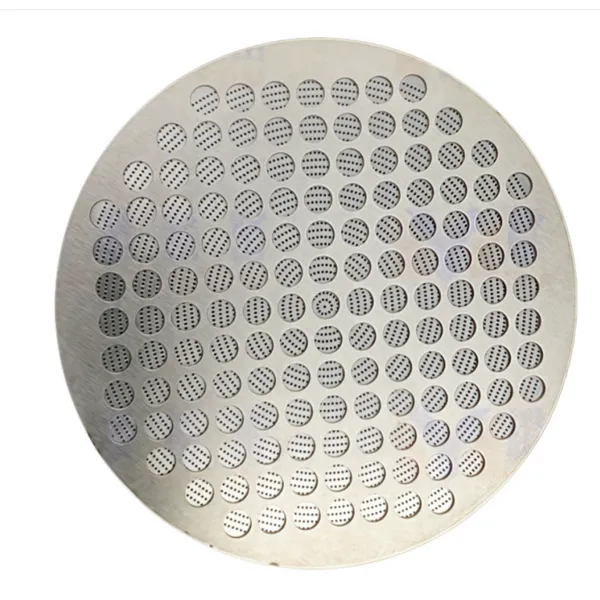

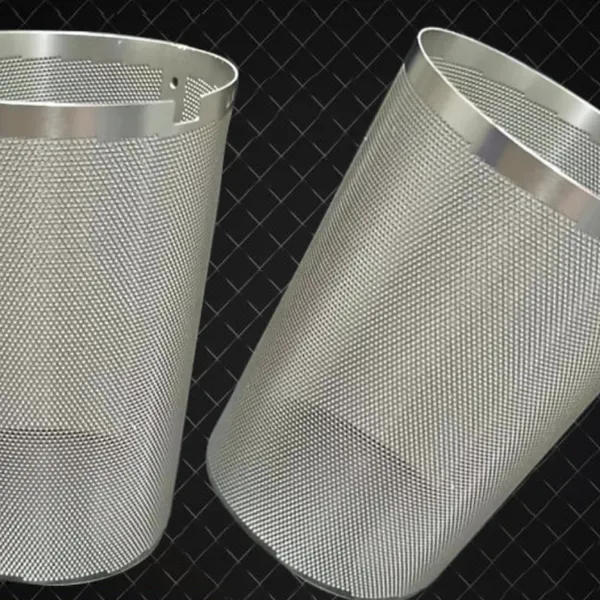

Help Center304 Stainless Steel Etched Mesh 0.5mm Thickness 10x10 Openings ISO Standard Compliant
Product Spotlights
Related Products
-
Etched Wire Mesh 0.8mm Aperture 0.2mm Wire Dia Chemical ProcessingNegotiableMOQ: 1 Piece -
Etched Mesh With Mill Test Report 30% Open Area 1 Year WarrantyNegotiableMOQ: 1 Piece
-
316L Etched Mesh Filter Disc 200 Micron Opening ISO 9001 CompliantNegotiableMOQ: 1 Piece
-
Etched Mesh Used in Food Processing 0.3mm Aperture FDA Grade MaterialNegotiableMOQ: 1 Piece
-
304 Stainless Steel Etched Mesh With 0.5mm Hole Diameter for Precision FiltrationNegotiableMOQ: 1 Piece
Anping County Boli Hardware Wiremesh Products Factory, established in 1998, is a leading manufacturer specializing in precision wire mesh products. Our 304 Stainless Steel Etched Mesh with a thickness of 0.5mm and 10x10 openings is engineered to meet the highest standards of filtration and separation. The etching process ensures uniform, burr-free apertures, making it ideal for demanding applications such as chemical processing, food & beverage filtration, and pharmaceutical screening. Compliant with ISO standards, this mesh offers consistent quality and reliable performance across diverse industries.
Our product is available in customizable widths and lengths, allowing you to tailor it to your specific equipment or project requirements. The 304 stainless steel composition provides excellent corrosion resistance, durability, and hygiene, while the 0.5mm thickness balances strength with flexibility. Below are key technical specifications:
| Parameter | Value |
|---|---|
| Material | 304 Stainless Steel (AISI 304) |
| Thickness | 0.5 mm ±0.05 mm |
| Mesh Opening | 10 x 10 openings per inch (approx. 10 mesh) |
| Open Area | Approximately 56% (depending on wire diameter) |
| Surface Finish | Etched (chemical milling), smooth edges |
| Standard Compliance | ISO 9001, ISO 14001, RoHS compliant (upon request) |
| Available Widths | 1000 mm, 1200 mm, 1500 mm (customizable) |
| Coil Length | 30 meters standard (custom lengths available) |
Product Advantages & Customer Benefits:
- Precision Etching: Our chemical etching process creates uniform, clean openings with no burrs or deformation, ensuring consistent filtration performance and easy cleaning.
- Corrosion Resistance: 304 stainless steel provides excellent resistance to oxidation, acids, and alkaline solutions, making it suitable for harsh environments like chemical plants and seawater applications.
- High Strength-to-Weight Ratio: Despite its 0.5mm thickness, the mesh maintains structural integrity under pressure, reducing the need for frequent replacements.
- Versatile Applications: Ideal for liquid filtration, gas diffusion, particle separation, sieving, and industrial screening. Commonly used in oil & gas, food processing, pharmaceuticals, and water treatment.
- Customizable Dimensions: We offer custom sizes and shapes (cut pieces, rolls, or stamped blanks) to fit your exact specifications. Lead time for custom orders is typically 10-15 working days.
- Easy Maintenance: Smooth etched surface minimizes particle adhesion, allowing quick rinsing or ultrasonic cleaning without damaging the mesh.
- Consistent Quality: Every roll is inspected for opening size, thickness uniformity, and surface finish before shipment. Our ISO-compliant quality management system ensures batch-to-batch consistency.
With an annual export value exceeding US$5 million, Anping County Boli Hardware Wiremesh Products Factory supplies to markets across North America, South America, Europe, Southeast Asia, Africa, Oceania, and the Middle East. Our factory, located in Hengshui, Hebei, China, has been serving the wire mesh industry for over 25 years. We ship from major ports including Tianjin, Qingdao, Shanghai, and Foshan, ensuring efficient logistics for global customers.
We are committed to providing reliable products and responsive customer service. Whether you need a small sample for testing or a large bulk order, we are ready to support your project. Contact us today for a quote or technical consultation.
Frequently Asked Questions (FAQ)
-
Q: What is the tolerance on the mesh opening size?
A: The opening size tolerance is ±0.05 mm for standard production. We can tighten this to ±0.02 mm for special requirements (please inquire). -
Q: Can you provide samples before bulk order?
A: Yes, we offer free samples for evaluation. The customer pays for shipping, and we can provide samples of 100x100 mm or custom size. -
Q: Is this mesh suitable for high-temperature applications?
A: 304 stainless steel can withstand continuous operating temperatures up to 870°C (1600°F) in oxidizing atmospheres. For higher temperatures, we recommend 316L or Inconel alloys. -
Q: What is the standard packing method?
A: Mesh is wound on strong cardboard cores, wrapped with moisture-proof paper, and packed in plywood pallets or export cartons. Custom packing (e.g., wooden crates) is available upon request. -
Q: Can you cut the mesh into specific shapes (discs, strips, etc.)?
A: Yes, we offer die-cutting and laser cutting services for custom shapes. Minimum order quantity may apply for shaped parts. -
Q: Do you have any certifications?
A: Our factory is ISO 9001 & ISO 14001 certified. We can also provide RoHS and REACH compliance documentation upon request. -
Q: What is the lead time for a standard order?
A: For standard sizes (1000mm width, 30m coil), lead time is 7-10 working days. Custom sizes may take 15-20 working days. -
Q: How do I clean the etched mesh?
A: For most applications, rinsing with water or using a mild detergent is sufficient. For stubborn residues, ultrasonic cleaning or gentle brushing with a soft brush is recommended. Avoid abrasive tools that could damage the etched surface.
