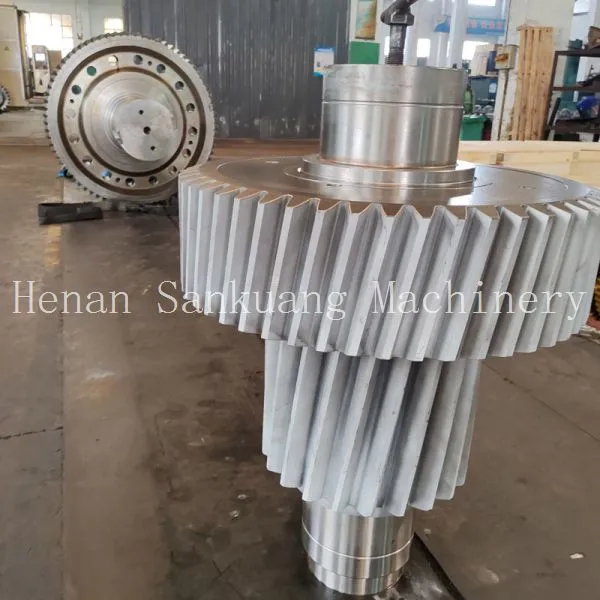

Henan San Kuang Machinery Technology Co., Ltd. (established in 2014) is proud to offer our Keyway Step Gear Shaft – a precision-engineered component designed for demanding mechanical power transmission applications. With over 10 years of manufacturing experience, a factory spanning 10,000–30,000 square meters, and a dedicated team of 51–100 skilled employees, we deliver shafts that meet the highest standards of durability and accuracy. Our shafts are fully customizable to your exact specifications, and we provide free technical support and comprehensive documentation (including CAD drawings, inspection reports, and installation guides) to ensure seamless integration into your equipment.
This keyway step gear shaft is ideal for use in gearboxes, reducers, conveyors, pumps, and other rotary machinery where torque transmission and precise alignment are critical. By choosing our product, you benefit from a combination of robust design, material flexibility, and personalized engineering assistance – all backed by a company that exports to markets across North America, South America, Europe, Asia, Africa, and Oceania, with an annual export value between US$2.5 million and US$5 million.
Key Features & Technical Specifications
- Material Options: Choose from carbon steel (e.g., 45#), alloy steel (40Cr, 20CrMnTi, 42CrMo), stainless steel (304, 316), or other materials per your request. Heat treatment options include quenching, tempering, carburizing, and nitriding.
- Precision Keyway: Square, round, or custom keyways machined to tight tolerances (ISO IT6–IT9). Keyway width, depth, and position are fully customizable.
- Multiple Steps: 2, 3, 4, or more steps available, with diameters ranging from 10 mm to 500 mm and lengths up to 3000 mm (longer lengths available upon request).
- Surface Finishing: Black oxide, phosphating, hard chrome plating, nickel plating, Dacromet, or polishing. Each treatment enhances corrosion resistance, wear resistance, or aesthetic appearance.
- Compliance & Tolerances: Manufactured under ISO9001 quality management system (certified). Our factory holds multiple certifications including ISO14000, ISO16949, OHSAS18001, and others. All shafts are 100% inspected for dimensional accuracy, hardness, and surface finish.
- Free Technical Support: Our experienced engineers assist with design optimization, material selection, and troubleshooting. We provide free CAD/STEP files for your review before production.
- Documentation Included: Material test certificates, dimensional inspection reports, hardness test reports, and packing lists. Additional documentation (e.g., NDT reports, third-party inspection) can be provided at cost.
| Parameter | Standard Range | Customizable |
|---|---|---|
| Shaft Diameter | 10 – 500 mm | Yes (up to 800 mm) |
| Overall Length | 50 – 3000 mm | Yes (up to 6000 mm) |
| Keyway Width | 4 – 50 mm | Yes |
| Keyway Depth | 2 – 30 mm | Yes |
| Step Diameter Difference | ≥ 2 mm | Yes |
| Surface Roughness | Ra 0.8 – 3.2 μm | Ra 0.4 μm available |
| Hardness (HRC) | 20 – 60 HRC | Custom per material |
Why Choose Our Keyway Step Gear Shaft?
- Reliability under Load: Strict heat treatment and machining processes ensure excellent fatigue strength and resistance to wear, even in high-torque applications.
- Cost-Effective Customization: No minimum order quantity (MOQ) for standard sizes; small batches welcome. We offer competitive pricing without sacrificing quality.
- Fast Lead Times: Typical production time: 15–25 working days for custom shafts; urgent orders can be expedited with prior arrangement.
- Global Logistics: Shipped from Port of Shanghai, Lianyungang, Qingdao, or Tianjin. We provide FOB, CIF, CFR, and DDP terms to suit your needs.
- After-Sales Support: Free technical consultation for the lifetime of the product. Spare parts and repeat orders are handled with priority.
At Henan San Kuang Machinery Technology Co., Ltd., we have supplied thousands of custom shafts to clients in over 30 countries. Our facility is equipped with CNC lathes, grinding machines, hobbing machines, and keyway broaching equipment, all operated by experienced technicians. With annual export value of US$2.5–5 million and a strong reputation in the industry, we are your trusted partner for precision machined components.
Free Technical Support & Documentation: When you order from us, you receive more than just a product. Our engineering team will review your application, suggest the most suitable material and heat treatment, and provide a complete set of technical drawings (in PDF and DWG/STEP formats) for your approval. We also supply quality documentation including material certificates, inspection reports, and test results. This ensures you have full traceability and confidence in your supply chain.
Frequently Asked Questions (FAQ)
-
Q: What materials are available for the keyway step gear shaft?
A: We offer carbon steel (45#, Q235), alloy steel (40Cr, 20CrMnTi, 42CrMo, 4140), stainless steel (304, 316, 17-4PH), and other materials. Contact us with your specific requirements. -
Q: Can I get a shaft with more than 3 steps?
A: Yes, we can manufacture shafts with any number of steps. The step geometry, including diameters, lengths, and chamfers, is fully customizable based on your drawing or description. -
Q: What is the typical lead time for a custom shaft?
A: For standard custom shafts (single piece to small batch), lead time is usually 15–25 working days after design approval. For larger quantities or more complex requirements, please inquire for a specific timeline. -
Q: Do you provide free technical drawings?
A: Absolutely. We offer free CAD support (2D/3D drawings) to help you visualize the final product. We also provide dimensional inspection reports and material certificates at no extra charge. -
Q: What is the minimum order quantity (MOQ)?
A: We have no strict MOQ for standard sizes. For custom shafts, we accept orders starting from 1 piece. However, pricing may vary based on quantity. -
Q: How do you ensure the keyway alignment and tolerance?
A: We use precision broaching and milling machines, and each shaft is inspected using CMM (Coordinate Measuring Machine) and go/no-go gauges. Our quality control system adheres to ISO 9001 standards. -
Q: Can you supply shafts with heat treatment like carburizing or nitriding?
A: Yes, we offer various heat treatment options including annealing, normalizing, quenching & tempering, carburizing, nitriding, and induction hardening. We recommend the best treatment based on your application. -
Q: What shipping ports do you use?
A: Our main ports are Shanghai, Lianyungang, Qingdao, and Tianjin. We can also arrange door-to-door delivery via DDP terms. Shipping costs and times will be provided upon request.
Contact us today to discuss your Keyway Step Gear Shaft requirements. Our team is ready to provide free technical support and a comprehensive quotation with full documentation. Experience the reliability of Chinese manufacturing with a partner you can trust.
