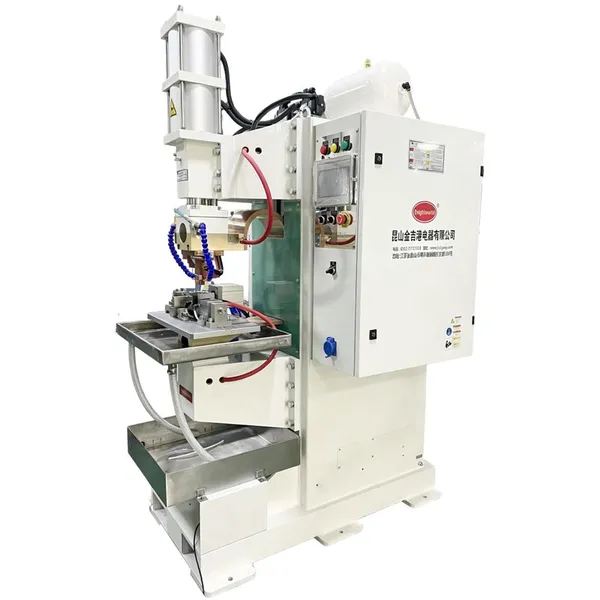

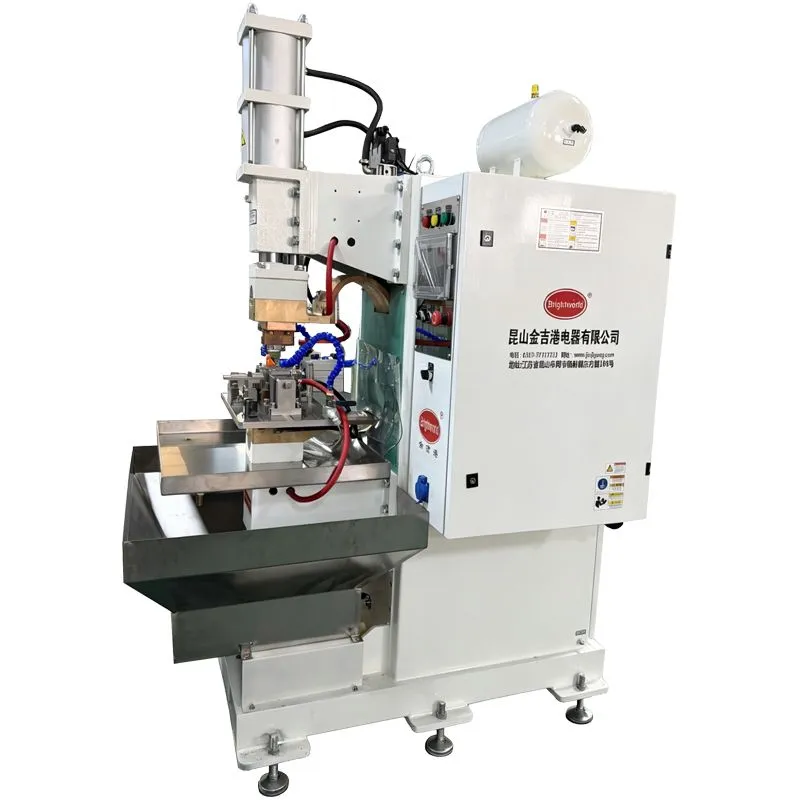

Help CenterCopper Braided Wire Square Welding Medium Frequency Resistance Welding BW-MF200
Product Spotlights
Related Products
-
High-frequency Precision Spot Welding Machine JJG-5000A Desktop Spot Welding MachineUS$ 4500MOQ: 1 Set -
Jinjigangang Medium Frequency Spot Welding Machine BW-MF160US$ 8500MOQ: 1 Set
-
Jinjigangang High-frequency Precision Spot Welding Machine BW-5000AUS$ 4000MOQ: 1 Set
-
Jinjigangang Medium Frequency Spot Welding Machine BW-MF50US$ 7500MOQ: 1 Set
-
Jinjigangang Medium Frequency Spot Welding Machine BW-MF90US$ 9300MOQ: 1 Set
I.Equipment Introduction：
Medium-frequency inverter spot welding machines are currently widely used, featuring small welding transformers with high output energy. By increasing the frequency of the welding transformer from the current commercial power frequency of 50/60HZ to 1000HZ, the weight of the iron core material can be significantly reduced. Additionally, the rectifier diode in the transformer's secondary circuit converts electrical energy into direct current power for the welding machine, greatly improving the secondary circuit's inductance value and saving users over 30% of power consumption.
All of our medium-frequency inverter spot welding machines use a touchscreen human-machine interface for digital control, making operation simple and easy to understand. The performance of the welding machine can be extended through programming on a personal computer. We can design and match different fixtures according to customer requirements to meet various workpiece welding needs, and can also design and manufacture automated specialized machines for customers to improve production efficiency.
II.Compared to conventional AC resistance spot welding machines, medium-frequency inverter spot welding machines have the following characteristics:
1.High welding stability;
2.Saves over 30% of electricity, with low operating costs;
3.Three-phase power supply with balanced input, achieving a power factor of up to 95%;
4.Lower welding current and electrode pressure;
5.The secondary circuit experiences almost no inductive energy loss;
6.The electrode life is increased by more than double, reducing the time required for electrode dressing;
7.Significantly reduce the installation costs of auxiliary facilities such as electric power installations, water installations, and gas installations;
8.More accurate, faster, and more comprehensive control and analysis of welding parameters;
9.Shorter welding time, improving work efficiency and welding quality;
10.The welding range is wider, and the welding effect is better for low carbon steel, stainless steel, copper, aluminum, and galvanized sheets.
III.Technical Specifications:

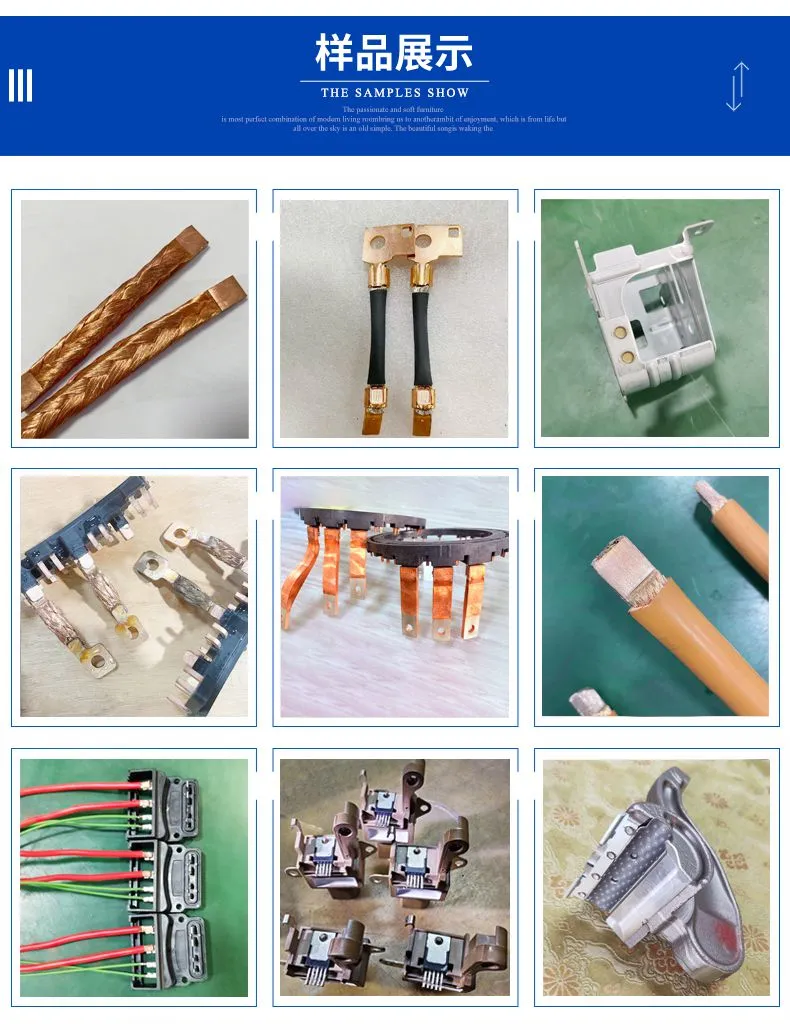

IV. Welding Sample
IV. Company Introduction
Send Inquiry to This Supplier
