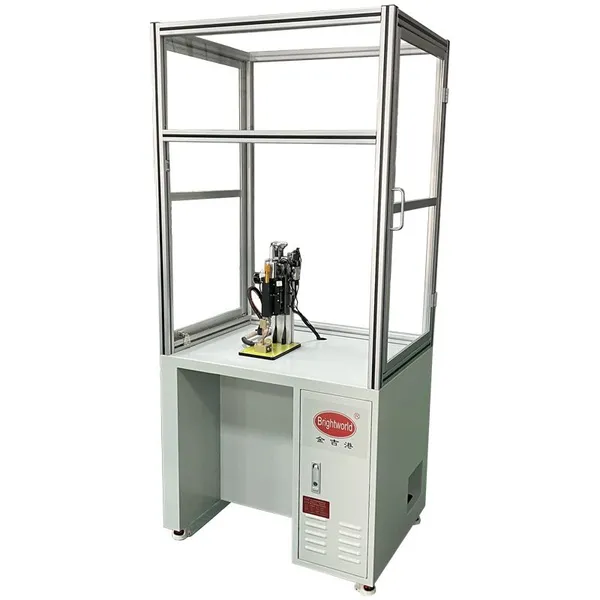

Help CenterJinjigangang High-frequency Precision Spot Welding Machine BW-5000A
Product Spotlights
Related Products
-
Jinjigang Aluminum Polymer Diffusion Welding Machine JJG-100KVAUS$ 20000MOQ: 1 Set -
Jinjigang Copper Polymer Diffusion Welding Machine JJG-350KVAUS$ 28500MOQ: 1 Set
-
Jinjigang Copper Polymer Diffusion Welding Machine JJG-200KVAUS$ 21000MOQ: 1 Set
-
Jinjigang Aluminum Polymer Diffusion Welding Machine JJG-130KVAUS$ 20000MOQ: 1 Set
-
Digitally Controlled Spot Welding Machine for France Security FenceNegotiableMOQ: 1 Unit
I. Performance characteristics:
1. With an inverter frequency of 4KHZ and a time control accuracy of 250us, it can achieve precise welding effects through both primary constant current and secondary constant current control methods
2. Programmable up to 32 sets of welding specifications
3. Two heating processes with independent slow ramp-up and ramp-down, displaying real-time welding current waveform, and multiple input/output (I/O) interfaces, making it better suited for automation scenarios
4. Counting systems for solder joints, workpiece numbers, packing numbers, electrode mold repair counting, etc., facilitating production management. 485 communication and BCD code control functions: Can be externally connected to industrial computers, PLCs, and other devices
5. Welding specification process parameter replication function, convenient and quick setting of specification parameter permission function, three-level user password permission management, facilitating quality management
6. Record and store welding current, time, grid voltage, specification number, welding results, etc. Support USB data export and alarm record function for easy access to historical alarm information
7. Current control accuracy 5‰ .

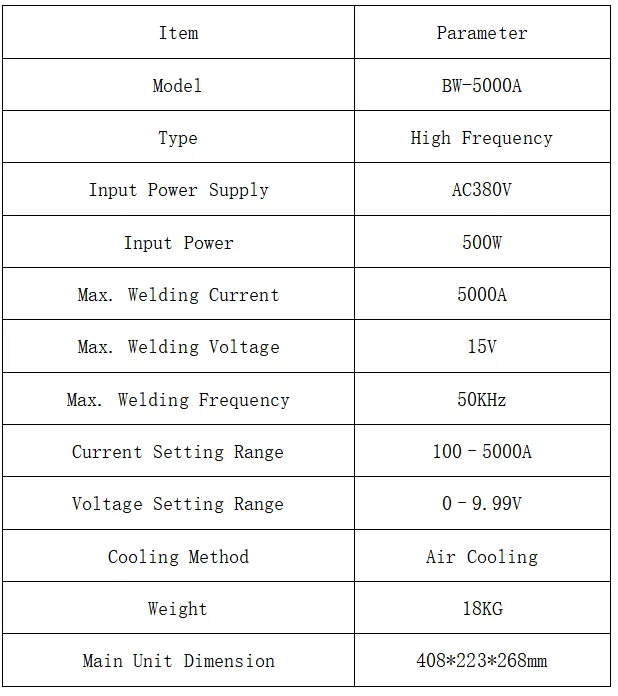

II.Technical Parameters

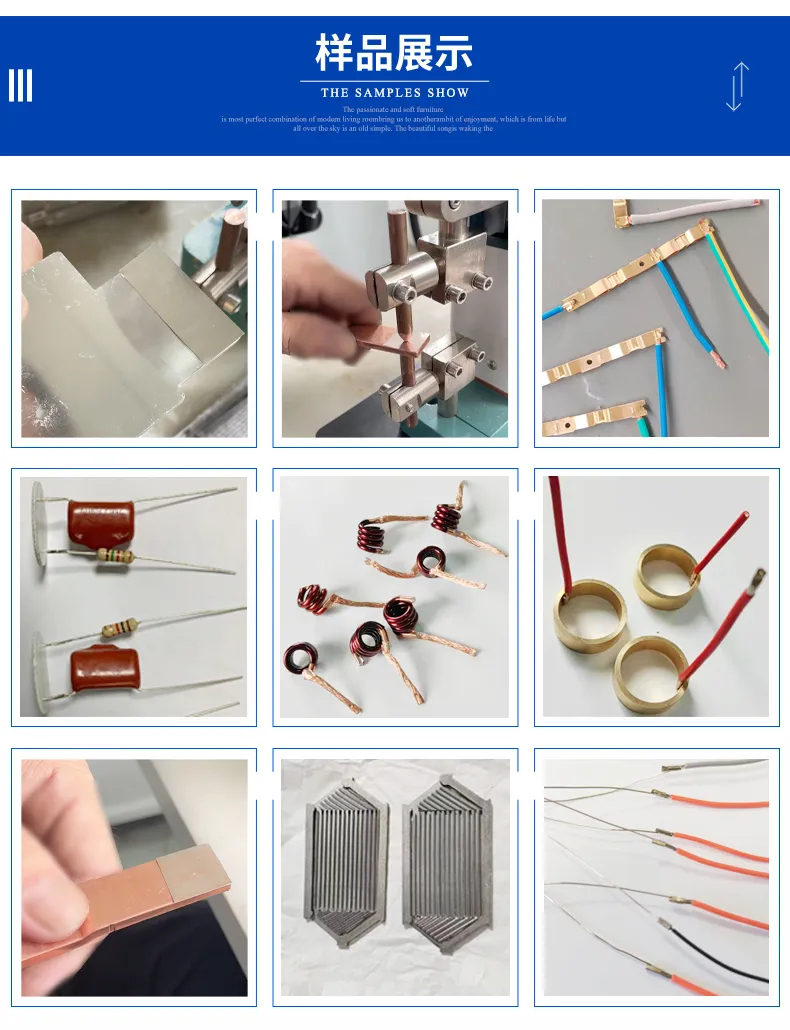

III.Welding Sample
