Shandong Sino Steel Co., Ltd. is a professional manufacturer of high-quality tinplate sheets, specializing in electrolytic tin coating for the canning industry. With a factory size of 10,000–30,000 square meters and an annual export value of US$2.5–5 million, we supply reliable, cost-effective thickness 0.15mm–0.50mm tinplate sheets to global markets. Our products are designed to meet the rigorous demands of food and beverage canning, ensuring excellent corrosion resistance, formability, and solderability.
Product Overview
Our electrolytic tinplate sheets are manufactured from high-grade cold-rolled steel substrate, coated with a uniform layer of pure tin via an electrolytic process. The thickness range of 0.15mm to 0.50mm makes them suitable for a wide variety of can sizes and applications—from small tuna cans to large paint cans. The tin coating provides a protective barrier against corrosion, while also offering a bright, attractive surface for printing and labeling.
Key Features & Technical Specifications
- Precise Thickness Control: Manufacturing tolerance within ±0.01mm, ensuring consistent performance in high-speed canning lines.
- Uniform Tin Coating: Electrolytic process guarantees even coating thickness (available from 1.0g/m² to 11.2g/m² per side), preventing pinholes and corrosion.
- Excellent Formability: Suitable for deep drawing, flanging, and seaming without cracking or delamination.
- Superior Solderability & Weldability: Ideal for traditional soldered cans or modern resistance welding processes.
- Surface Finish Options: Bright (B), Stone (S), or Matte (M) finishes to meet different aesthetic and functional requirements.
- Customizable Dimensions: Width from 600mm to 1050mm, coil or sheet form, with or without edge trim.
- Hardness Grades: T2, T2.5, T3, T4, T5 available, matching the stiffness needed for various can types.
- Environmental Compliance: Tin coating is food-safe and complies with international food packaging regulations.
| Parameter | Value | Remarks |
|---|---|---|
| Thickness | 0.15 – 0.50 mm | Customized tolerances available |
| Tin Coating Weight | 1.0 – 11.2 g/m² (per side) | E.g., 2.8/2.8, 5.6/5.6, 11.2/11.2 |
| Width | 600 – 1050 mm | Slit to customer specification |
| Coil ID | 508 mm / 610 mm | Inner diameter |
| Hardness (HR30T) | T2 – T5 (45–65 HR30T) | Per JIS G3303 or ASTM A623 |
| Surface Finish | Bright / Stone / Matte | Optional |
| Packaging | Steel export pallet, vacuum-packed with metal protector | Custom labeling available |
Detailed Benefits for Canners
Using our 0.15mm–0.50mm tinplate sheets delivers tangible advantages for your canning production:
- Reduced Material Cost: Precise gauge control allows you to choose the thinnest feasible thickness, saving steel weight without sacrificing strength.
- Higher Yields: Uniform tin coating minimizes defects such as rust spots or pinholes, reducing scrap rates in high-speed lines.
- Better Printability: Bright finish offers an excellent surface for lithographic printing, enhancing brand appearance.
- Faster Production: Consistent hardness and flatness enable smooth feeding, flanging, and seaming, increasing line speed.
- Trusted Quality: Our factory is ISO 9001 and ISO 19011:2000 certified, ensuring rigorous quality control from raw material to final packing.
- Global Logistics: With ports in Qingdao, Tianjin, and Shanghai, we deliver to North America, South America, Eastern Europe, Southeast Asia, Africa, the Middle East, and more.
Why Choose Shandong Sino Steel?

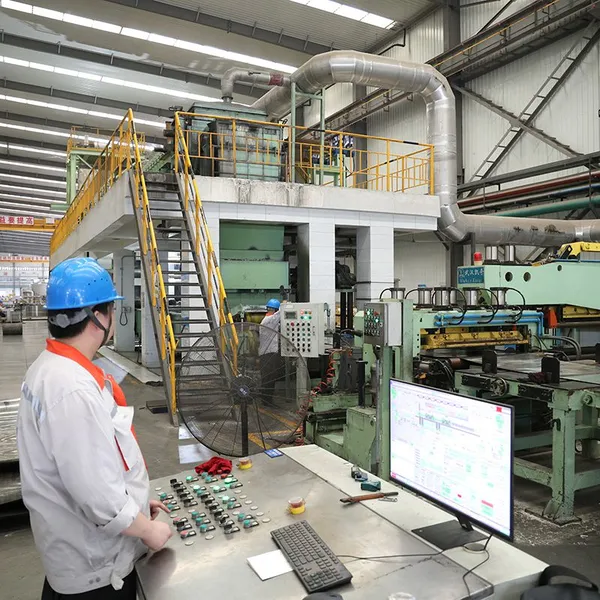

Established in 2018, we have grown into a trusted manufacturer with 101–200 employees and an overseas office to support international clients. Our factory spans 10,000–30,000 square meters, equipped with advanced production lines for electro-tinning and slitting. We have exported to over 30 countries, with an annual export value of US$2.5–5 million. Our commitment to quality is backed by ISO 9001 and ISO 19011:2000 certifications, and we offer flexible customization (thickness, coating weight, width, finish) to meet your exact needs. Whether you require small trial quantities or large container shipments, we provide responsive service and competitive pricing.
Ready to start your next canning project? Contact us today for a quote or free sample. Our team will work with you to select the optimal tinplate specification for your products. Trust Shandong Sino Steel – your reliable partner for electrolytic tinplate sheets.
Frequently Asked Questions (FAQ)
Q1: What is the minimum order quantity (MOQ) for these tinplate sheets?
A: Our standard MOQ is 1 metric ton per specification. For sample orders, we can accommodate smaller quantities upon request.
Q2: Can you supply tinplate in sheet form (not coil)?
A: Yes, we can supply both coils and cut sheets. Sheet dimensions (length × width) are customizable to your requirements.
Q3: Is the tin coating safe for food contact?
A: Yes. Our electrolytic tin coating is made from pure tin (≥99.8%) and complies with global food safety standards, including FDA and EU regulations.
Q4: What is the lead time for a typical order?
A: For standard specifications, lead time is 20–30 days after order confirmation. Customized orders may require 30–45 days.
Q5: How do you pack the tinplate to prevent rust during shipping?
A: We use rust preventive oil, vapor-phase corrosion inhibitor, and vacuum-sealed with metal protector. Additionally, the pallets are wrapped with protective film and strapped securely.
Q6: Can you provide free samples for testing?
A: Yes, we offer free samples (A4 size or small coil) with freight collect. Contact our sales team to arrange.
Q7: What hardness grade is recommended for two-piece beverage cans?
A: For two-piece DWI cans, grade T2.5 or T3 is commonly used. For three-piece food cans, T3 or T4 is typical. Our technical team can advise based on your specific can design.
Q8: Do you have any certifications for quality management?
A: Yes, our factory is certified under ISO 9001 (Quality Management System) and ISO 19011:2000 (Guidelines for auditing management systems). We maintain strict process control and traceability.
