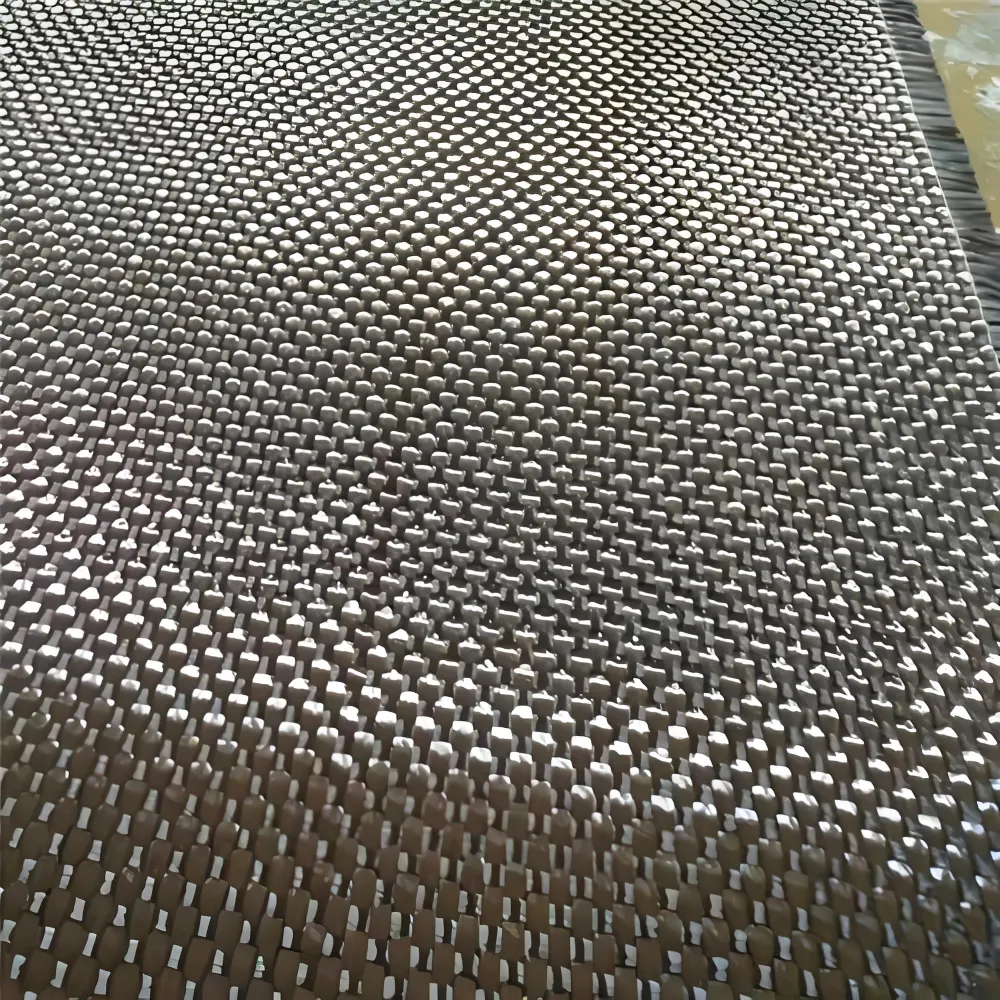

Anping County Boli Hardware Wiremesh Products Factory, a trusted manufacturer since 1998, proudly presents our 1.5mm-5mm Adjustable Thickness CFRP Sheet with High Modulus 230GPa. This high-performance carbon fiber reinforced polymer sheet is engineered to deliver exceptional stiffness and lightweight properties, making it an ideal choice for demanding industrial applications. With our two decades of expertise in precision manufacturing and a robust annual export value of US$5 Million to US$10 Million, we ensure consistent quality and reliable supply worldwide.
Our CFRP sheet offers a unique adjustable thickness range from 1.5mm to 5mm, allowing you to tailor the material to your specific project requirements. The high modulus of 230GPa provides superior rigidity and dimensional stability, critical for aerospace components, automotive parts, sports equipment, and structural reinforcements. Each sheet is produced using advanced prepreg layup and autoclave curing processes, ensuring uniform fiber distribution and void-free laminates.
Below are the key technical specifications and features of our CFRP sheet:
| Property | Value |
| Tensile Modulus | 230 GPa |
| Tensile Strength | ≥ 3500 MPa |
| Density | ~1.6 g/cm³ |
| Thickness Range | 1.5 – 5 mm (adjustable) |
| Fiber Content | ≥ 60% by volume |
| Operating Temperature | -50°C to +120°C |
| Surface Finish | Glossy or matte (optional) |
Key Features and Benefits:
- Adjustable Thickness: Customize from 1.5mm to 5mm to meet your exact load-bearing and weight requirements.
- High Modulus 230GPa: Provides exceptional stiffness-to-weight ratio, reducing deflection in structural applications.
- Lightweight: At only ~1.6 g/cm³, it significantly reduces component weight compared to metals.
- Excellent Fatigue Resistance: Ideal for cyclic loading environments like automotive and aerospace.
- Corrosion & Chemical Resistant: Suitable for harsh environments, including marine and chemical processing.
- Low Thermal Expansion: Maintains dimensional stability under temperature changes.
- Customizable Dimensions: Width up to 1000mm, length up to 3000mm, or as per your drawing.
Our CFRP sheets are manufactured using prepreg carbon fiber and autoclave curing to ensure consistent quality. The adjustable thickness is achieved through precise layup control, allowing for tight tolerances of ±0.1mm. We offer both glossy and matte surface finishes, and our sheets can be cut, drilled, or machined easily with standard tools.
Applications:
- Aerospace interior panels and structural components
- Automotive body panels, spoilers, and chassis reinforcements
- Sports equipment (bicycle frames, hockey sticks, tennis rackets)
- Industrial machinery guards and lightweight jigs
- Construction strengthening and seismic retrofitting
- Robotics arms and drone frames
As a manufacturer with over 25 years of history, Anping County Boli Hardware Wiremesh Products Factory has exported to North America, South America, Europe, Southeast Asia, Africa, Oceania, the Middle East, and more. Our annual export value of US$5 Million to US$10 Million reflects the trust global customers place in our products. We ship from major ports including Tianjin, Qingdao, Shanghai, and Foshan, ensuring timely delivery. Our dedicated team provides technical support and custom solutions for every order.
Why choose our CFRP Sheet? It combines high modulus performance with manufacturing flexibility, backed by a reliable, experienced manufacturer. We offer competitive pricing without compromising on quality. Request a quote or sample today to experience the difference.
Frequently Asked Questions (FAQ):
-
Q: Can I get a custom thickness outside the 1.5-5mm range?
A: Yes, we can produce thicknesses from 0.5mm up to 10mm upon request. Please contact our sales team with your specific requirements. -
Q: What is the minimum order quantity (MOQ)?
A: Our MOQ is 10 sheets for standard sizes. For custom dimensions or thicknesses, MOQ may vary. Contact us for details. -
Q: Do you provide cutting or machining services?
A: Yes, we offer CNC cutting, drilling, and edge finishing services. Please provide drawings for a quote. -
Q: How long does shipping take to North America?
A: Typical sea freight takes 20-30 days from our ports (Tianjin/Qingdao/Shanghai/Foshan). Express shipping (DHL/FedEx) is available for smaller orders. -
Q: Is the sheet suitable for outdoor use?
A: Our CFRP has good UV resistance when coated with a protective layer. We recommend a UV-resistant clear coat for extended outdoor exposure. -
Q: Can I get a sample before bulk order?
A: Absolutely. We provide samples (A4 size or smaller) for a nominal fee, refundable with your first order. -
Q: What is the tolerance on thickness?
A: Standard tolerance is ±0.1mm for thickness. For tighter tolerances (±0.05mm), please inquire.
