Precision Gear Set 1.5 Module 20 Teeth 12 Months Warranty Free Technical Support for Industrial Use
Product Spotlights
Precision 1.5 module, 20-tooth gear set with 12-month warranty and free lifetime technical support. Made from high-strength alloy steel, customizable heat treatment and surface finish. Sourced from an ISO-certified Chinese factory with 10+ years experience and global exports.
US$ 1000
≥1 Combo
Key Specifications
Get Latest Price
Material:
Other, Alloy Steel (Customizable)
Application:
Other, Industrial Machinery
Module:
1.5
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao|tianjin
Delivery Detail:
10 days
Related Products
-
Large Gear Hobbing Machining Service: 42CrMo4 Material, Hardened & Tempered, AGMA 10-12 QualityUS$ 1000MOQ: 1 Combo -
Industrial Gear Manufacturing: High Precision & Heavy Duty PerformanceNegotiableMOQ: 1 Piece
-
Gear Drive System With 3-Year Warranty and Technical Support PackageNegotiableMOQ: 1 Piece
-
Custom Spline Shaft Gear for Agricultural Machinery OEM ReplacementNegotiableMOQ: 1 Piece
-
Hardened Steel Spur Gear 20CrMnTi Alloy With 58-62HRC Surface HardnessNegotiableMOQ: 1 Piece
Material
Other, Alloy Steel (Customizable)
Application
Other, Industrial Machinery
Module
1.5
Number of Teeth
20
Precision Grade
High Precision (ISO 6-8)
Heat Treatment
Carburizing & Quenching (Optional)
Surface Treatment
Phosphating / Blackening (Optional)
Warranty
12 Months
Technical Support
Free Lifetime
Certification
ISO9001, ISO14001, OHSAS18001 (Company)
Henan San Kuang Machinery Technology Co., Ltd., established in 2014, operates a 10,000-30,000 m² factory and exports to over 15 global markets. Our Precision Gear Set 1.5 Module 20 Teeth is engineered for demanding industrial applications, combining strict quality control with a 12-month warranty and free technical support to ensure your production runs smoothly.
This gear set is manufactured from high-strength alloy steel, with optional heat treatment and surface finishing to meet specific load and wear requirements. Every gear undergoes dimensional inspection and hardness testing to guarantee consistent performance. The 1.5 module and 20-tooth configuration are widely used in speed reducers, conveyor systems, and general machinery.
Key Technical Specifications
| Parameter | Value |
| Module | 1.5 |
| Number of Teeth | 20 |
| Pressure Angle | 20° (Standard) |
| Material | 20CrMnTi / 40Cr (Customizable) |
| Hardness | HRC 58-62 (After Carburizing) |
| Precision Grade | DIN 6-8 (ISO 1328) |
| Surface Treatment | Phosphating, Blackening, or as Requested |
| Warranty | 12 Months |
| Technical Support | Free Lifetime |
Product Features & Benefits

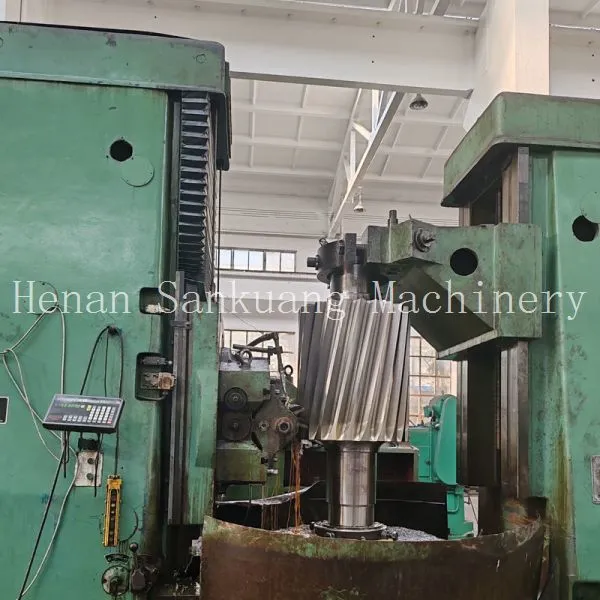

- High Precision Machining: CNC hobbing and grinding ensure tooth profile accuracy, reducing noise and vibration during operation.
- Superior Wear Resistance: Carburizing and quenching achieve a hard case (HRC 58-62) with a tough core, extending service life under heavy loads.
- Customizable Options: Material, heat treatment, surface treatment, and keyway/hole dimensions can be tailored to your design.
- Rigorous Quality Control: Each gear is inspected with gear measuring machines and hardness testers. Our factory is ISO9001, ISO14001, and OHSAS18001 certified.
- 12-Month Warranty: Covers manufacturing defects, giving you peace of mind.
- Free Technical Support: Our engineers assist with installation, troubleshooting, and optimization via email or video call.
Why Choose Henan San Kuang?
- Factory size of 10,000-30,000 m² with annual export value of US$2.5 – 5 million.
- Over 10 years of experience in gear manufacturing, serving North America, Europe, Asia, Africa, and Oceania.
- Multiple certifications: HACCP, TL900, QS9000, SA8000, ISO9001, ISO14001, OHSAS18001, and many more (available upon request).
- Flexible shipping ports: Shanghai, Lianyungang, Qingdao, Tianjin – fast logistics to worldwide destinations.
Our Precision Gear Set 1.5 Module 20 Teeth is a reliable choice for OEMs and industrial users who demand consistent quality and long-term support. With our robust quality management system and dedicated after-sales team, you can count on us as your gear partner.
Frequently Asked Questions
-
Q: What materials are available for this gear set?
A: Standard material is 20CrMnTi alloy steel. We also offer 40Cr, 42CrMo, or stainless steel upon request. Please contact us for your specific application. -
Q: Can you customize the bore diameter or keyway?
A: Yes, we can machine the bore, keyway, or set screw holes according to your drawings. Customization is welcome. -
Q: What is the lead time for this product?
A: For standard sizes, lead time is about 15-20 working days. Custom orders may take 20-30 days depending on complexity. -
Q: Do you provide samples before mass production?
A: Yes, we can produce samples for evaluation. Sample cost is negotiable and will be deducted from the final order. -
Q: What is the warranty period and what does it cover?
A: We offer 12 months warranty against manufacturing defects. It does not cover damage due to misuse or improper installation. -
Q: How do you ensure the gear quality?
A: We use coordinate measuring machines, gear testers, and hardness testers. Each batch is accompanied by a quality inspection report. -
Q: Is there any minimum order quantity (MOQ)?
A: Our MOQ is typically 10 pieces for standard gears. For custom designs, MOQ may be higher, but we are flexible for trial orders. -
Q: What shipping methods do you support?
A: We ship via sea, air, or express (DHL, FedEx, UPS). Ports include Shanghai, Qingdao, Lianyungang, and Tianjin. We can arrange delivery to your door.
Trust the engineering excellence of Henan San Kuang Machinery Technology Co., Ltd. With over a decade of experience, international certifications, and a dedicated team, we deliver precision gear solutions that keep your machinery running. Contact us today for a quote or technical consultation.
