Home > Construction & Decoration > Decoration Materials > Sandwich Panel > Welded Steel Grating, 100x50mm Flat Bar, 5mm Thick, Hot Dip Galvanized, Mill Test Report

Welded Steel Grating, 100x50mm Flat Bar, 5mm Thick, Hot Dip Galvanized, Mill Test Report

Welded Steel Grating, 100x50mm Flat Bar, 5mm Thick, Hot Dip Galvanized, Mill Test Report thumbnail-2

Welded Steel Grating, 100x50mm Flat Bar, 5mm Thick, Hot Dip Galvanized, Mill Test Report thumbnail-3

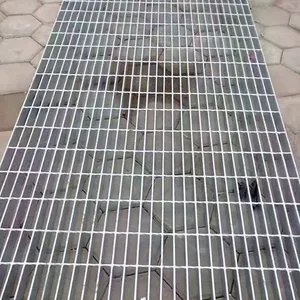

Welded Steel Grating, 100x50mm Flat Bar, 5mm Thick, Hot Dip Galvanized, Mill Test Report thumbnail-4

Welded Steel Grating, 100x50mm Flat Bar, 5mm Thick, Hot Dip Galvanized, Mill Test Report thumbnail-5

Welded Steel Grating, 100x50mm Flat Bar, 5mm Thick, Hot Dip Galvanized, Mill Test Report photo-1

Welded Steel Grating, 100x50mm Flat Bar, 5mm Thick, Hot Dip Galvanized, Mill Test Report photo-2

Welded Steel Grating, 100x50mm Flat Bar, 5mm Thick, Hot Dip Galvanized, Mill Test Report photo-3

Welded Steel Grating, 100x50mm Flat Bar, 5mm Thick, Hot Dip Galvanized, Mill Test Report photo-4

Welded Steel Grating, 100x50mm Flat Bar, 5mm Thick, Hot Dip Galvanized, Mill Test Report photo-5

Product Spotlights

100x50mm heavy flat bar with 5mm thickness for high load capacity; hot dip galvanized finish ensures long-term corrosion resistance; certified Mill Test Report provided with every order; customizable panel sizes, bar spacing, and cutouts to meet specific project needs; suitable for industrial platforms, walkways, and trench covers.

Negotiable MOQ: 50 Cubic Centimeters (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Steel (Q235, Q345, etc.)

Bar Size:

100x50mm

Thickness:

5mm

Contact Supplier Request Quote Chat Now

Anping Xinye Metal Wire Mesh Products Co., Ltd

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

china

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Material Steel (Q235, Q345, etc.)

Bar Size 100x50mm

Thickness 5mm

Surface Treatment Hot Dip Galvanized

Bearing Bar Spacing Customizable

Cross Bar Spacing Customizable

Width Customizable

Length Customizable

Standard Mill Test Report Available

Application Industrial platforms, walkways, trenches

Welcome to Anping Xinye Metal Wire Mesh Products Co., Ltd, a trusted manufacturer based in Hengshui, Hebei, China. Our Welded Steel Grating with 100x50mm flat bar and 5mm thickness, hot dip galvanized, is designed to deliver superior strength, durability, and corrosion resistance for demanding industrial environments. Each panel comes with a Mill Test Report to guarantee material traceability and quality assurance. Whether you need heavy-duty walkways, platform flooring, or trench covers, this grating offers a reliable solution backed by years of manufacturing expertise.

Product Features & Technical Specifications

Heavy-Duty Flat Bar: 100mm wide × 50mm high bearing bars with 5mm thickness provide exceptional load-bearing capacity for heavy traffic and machinery.
Precision Welded Construction: Cross bars are resistance-welded to bearing bars at every junction, ensuring a rigid, slip-resistant, and long-lasting structure.
Hot Dip Galvanized Finish: Complete zinc coating (typically 85-120 microns) protects against rust and corrosion, extending service life even in harsh outdoor or chemical environments.
Mill Test Report Included: Each shipment is accompanied by a certified mill test report showing chemical composition and mechanical properties, giving you full confidence in material quality.
Customizable Dimensions: Panel width, length, bar spacing, and cross bar spacing can be tailored to your project requirements. Contact us for custom sizes.
Easy Installation: Lightweight compared to solid steel plates, with pre-drilled holes or weld tabs available for quick mounting on steel structures.

Parameter	Specification
Bearing Bar Size	100mm (width) × 50mm (height) × 5mm (thickness)
Cross Bar Size	Typically 6mm × 6mm or 8mm × 8mm (customizable)
Bearing Bar Spacing	30mm, 40mm, 50mm, or as requested
Cross Bar Spacing	50mm, 100mm, or customized
Surface Treatment	Hot dip galvanized (HDG) per ASTM A123
Standard Panel Size	1000mm × 6000mm (others available)
Material Grade	Q235B, Q345B, or equivalent (with mill test report)

Key Benefits for Your Business

Enhanced Safety: The serrated surface option (available upon request) provides superior slip resistance, reducing accident risks in wet or oily conditions.
Cost-Effective: Compared to solid steel plates, welded grating reduces material costs while maintaining strength. The long lifespan from galvanization lowers replacement frequency.
Versatile Applications: Ideal for industrial platforms, mezzanines, catwalks, stair treads, drainage covers, vehicle access ramps, and offshore installations.
Environmental Resistance: Hot dip galvanizing withstands extreme temperatures, UV exposure, and chemical spills, making it suitable for both indoor and outdoor use.
Quality Assurance: Every batch is inspected by our QC team. The mill test report ensures you receive steel that meets your specified mechanical properties.

Why Choose Anping Xinye?

Anping Xinye Metal Wire Mesh Products Co., Ltd has been serving global clients for over [X] years, exporting to more than 30 countries. Our factory is equipped with advanced automatic welding machines and a hot-dip galvanizing line. We pride ourselves on strict quality control from raw material selection to final packaging. Each shipment is accompanied by a Mill Test Report, and we offer flexible customization to meet your project specs. Our team provides prompt technical support and after-sales service. Contact us today for a quote or to discuss your specific requirements. We are ready to deliver durable, reliable welded steel grating for your next project.

Frequently Asked Questions (FAQ)

Q: Can I have custom dimensions for the grating panels?
A: Yes, we offer full customization. You can specify the width, length, bearing bar spacing, cross bar spacing, and even the shape of the panel (e.g., cutouts, notches). Please provide a drawing or description.
Q: What is the load capacity of this 100×50×5mm grating?
A: The load capacity depends on the span and bar spacing. For example, with a 600mm span and 30mm bearing bar spacing, the safe uniform load can exceed 10 kN/m². Contact us for a specific load calculation based on your application.
Q: How does the hot dip galvanized coating perform in coastal areas?
A: Hot dip galvanizing provides excellent corrosion resistance in marine environments. The typical coating thickness of 85-120 microns (ASTM A123) offers long-term protection. For extreme conditions, we can recommend additional coating options.
Q: What is the lead time for production?
A: Standard sizes (e.g., 1000×6000mm) are typically shipped within 7-15 working days after order confirmation. Custom orders may take 15-25 working days, depending on complexity.
Q: Do you provide a Mill Test Report for every batch?
A: Yes, a Mill Test Report (MTR) is included with each shipment, showing chemical composition (C, Mn, Si, S, P) and mechanical properties (yield strength, tensile strength, elongation).
Q: Can I get a sample before placing a bulk order?
A: Absolutely. We can provide a small sample panel (e.g., 300×300mm) for quality evaluation. The sample cost is usually covered by the client, but we will refund it upon bulk order.
Q: What packaging options are available?
A: Panels are bundled with steel straps and wrapped in waterproof paper or plastic for sea freight. Wooden crates are available for small orders or fragile items. Custom packaging can be arranged.
Q: Is the grating suitable for heavy vehicle traffic?
A: Yes, with the 100×50mm bearing bar and 5mm thickness, this grating is designed for heavy-duty applications such as truck loading areas, forklift aisles, and industrial platforms. Please confirm the load requirements with our technical team.
