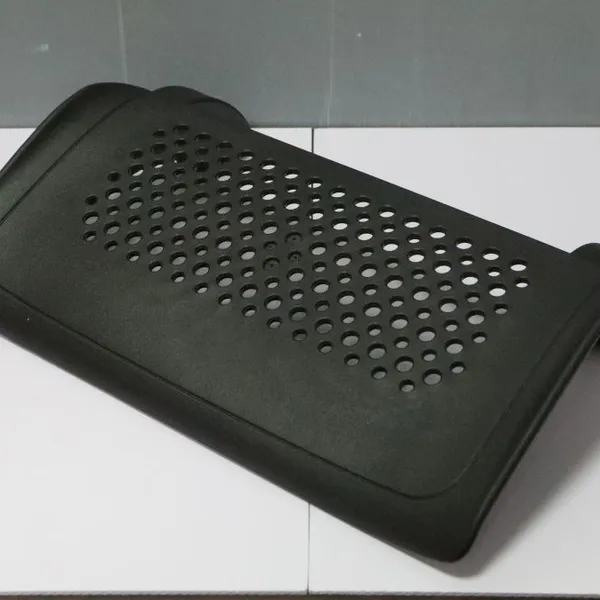

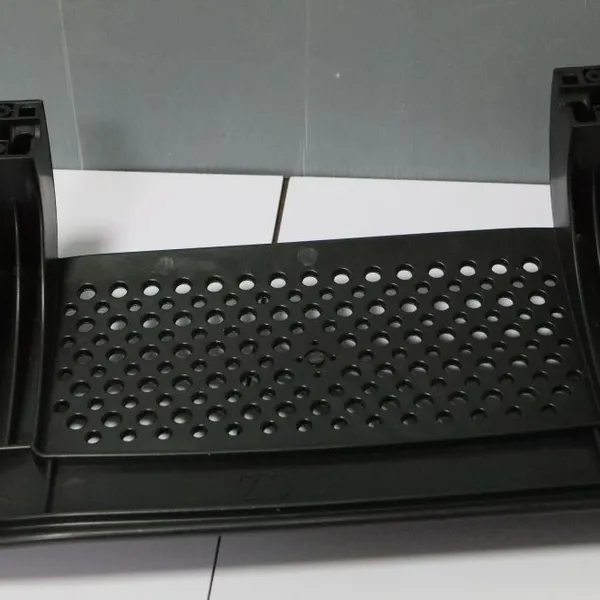

IATF 16949 PP TD20 Structural Bracket Tooling Zero Defect Manufacturing 100 Percent CMM Inspected Custom Auto Plastics Factory Southeast Asia
Product Spotlights
IATF 16949 certified structural bracket tooling for automotive PP plastics, featuring zero defect manufacturing and 100% CMM inspection. Customized to your part design, with hardened steel construction for 1M+ cycles. Factory in Changzhou, China, serving global markets including Southeast Asia.
Negotiable
MOQ: 5000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, PP (Polypropylene)
Application:
Automotive Structural Bracket
Process:
Injection Molding Tooling
Payment & Shipping
Payment Methods:
Port of Shipment:
Changzhou,Jiangsu
Delivery Detail:
30 days
Related Products
-
Precision PP TD20 Seat Bracket Molding IATF 16949 3 Million Shots Mold Life High Temperature Resistant Auto Parts Factory Southeast AsiaNegotiableMOQ: 5000 Pieces -
OEM IATF 16949 Vehicle Seat Bracket Molding PP TD20 Hot Runner System RationalDMIS CMM Inspected Custom Plastic Tooling Maker SE AsiaNegotiableMOQ: 5000 Pieces
-
Durable PP TD20 Seat Bracket Molding IATF 16949 High Impact Resistance Vehicle Interior Structural Plastics Supplier Southeast Asian MarketNegotiableMOQ: 5000 Pieces
-
High Strength PP TD20 Vehicle Seat Bracket Molding IATF 16949 Zero Defect Precision Plastic Cavity Tooling Exporter Southeast Asia ChainsNegotiableMOQ: 5000 Pieces
-
Automotive PP TD20 Seat Bracket Molding IATF 16949 Automated Robotic Extraction Heavy Machinery Plastic Components Manufacturer SE AsiaNegotiableMOQ: 5000 Pieces
Material
Other, PP (Polypropylene)
Application
Automotive Structural Bracket
Process
Injection Molding Tooling
Inspection
100% CMM (Coordinate Measuring Machine)
Quality Standard
IATF 16949 / TS16969
Defect Rate
Zero Defect Manufacturing
Customization
Customized Design & Dimensions
Model Series
TD20
Production Capacity
51-100 Employees, 1,000-3,000 sqm Factory
Port of Shipment
Jiangsu, Shanghai, Shenzhen
Changzhou Hongxinyutai Precision Mold Co., Ltd. is a dedicated manufacturer of precision tooling for the automotive plastics industry, established in 2017 and operating a 1,000–3,000 square meter facility with 51–100 skilled employees. We are proud to present our IATF 16949 PP TD20 Structural Bracket Tooling, engineered to deliver zero defect manufacturing and verified by 100% CMM inspection. This custom tooling solution is specifically designed for automotive structural brackets made from polypropylene (PP), meeting the rigorous demands of OEMs and Tier 1 suppliers across Southeast Asia and global markets.
Our tooling incorporates advanced process control and precision machining to achieve part-to-part consistency, dimensional accuracy, and long-term durability. With a focus on eliminating rejects and reducing downtime, the TD20 structural bracket mold is a reliable choice for high-volume production runs. Below, we detail the key technical features, benefits, and specifications that set this tooling apart.
Technical Specifications & Features
- Material Compatibility: Optimized for PP (polypropylene) with specific shrinkage and flow characteristics, ensuring uniform filling and minimal warpage.
- Zero Defect Manufacturing: Our tooling incorporates sensors, hot runner control, and process monitoring to achieve defect rates below 10 PPM (parts per million).
- 100% CMM Inspection: Every tool component and first-shot sample is inspected using a Zeiss coordinate measuring machine, guaranteeing tolerances within ±0.01 mm.
- Hardened Tool Steel Construction: The mold base and cavity inserts are made from premium steel (e.g., 1.2343, 1.2738) with heat treatment, offering long service life above 1 million cycles.
- Customizable Cooling System: Conformal cooling channels designed via simulation software, reducing cycle time by up to 20%.
- IATF 16949 / TS16969 Quality System: Our entire manufacturing process follows automotive-grade quality management, including PPAP, FMEA, and control plans.
- Flexible Delivery: Tooling can be shipped from Jiangsu, Shanghai, or Shenzhen ports, with a typical lead time of 6–8 weeks depending on complexity.
| Parameter | Value |
|---|---|
| Mold Type | 2-plate / 3-plate (customizable) |
| Cavity Count | 1, 2, 4, or 8 (user-defined) |
| Injection Machine Tonnage | 300–800 tons (recommended) |
| Surface Finish | SPI #A2, #B1, #C1 (customizable) |
| Expected Lifespan | 1,000,000+ cycles |
| Inspection Equipment | Zeiss CMM, Mitutoyo vision system |
Key Benefits for Your Production
- Reduced Cost per Part: Zero defect manufacturing eliminates scrap and rework, directly lowering your production costs.
- Faster Time to Market: Our streamlined tooling development process, combined with 100% CMM inspection at first article, ensures rapid qualification and approval.
- Global Supply Chain Compatibility: With experience serving North America, South America, Europe, Southeast Asia, and other regions, our tooling meets international standards and local requirements.
- Consistent Quality: The combination of IATF 16949 processes and 100% CMM inspection guarantees that every bracket produced is identical, reducing assembly issues.
- Easy Maintenance: Modular design allows quick replacement of worn inserts, minimizing downtime.
Frequently Asked Questions (FAQ)
-
Q: What is the typical lead time for the TD20 structural bracket tooling?
A: Lead time depends on the cavity count and complexity. Standard tooling (1–2 cavities) can be delivered in 6–8 weeks. For multi-cavity or hot runner systems, please allow 10–12 weeks. We provide a detailed schedule upon order confirmation. -
Q: Can you design the tooling based on our part drawing?
A: Absolutely. We accept 3D CAD files (STEP, IGES, SolidWorks) and 2D drawings. Our engineering team will perform mold flow analysis, cooling simulation, and structural optimization to ensure the tooling meets your cycle time and quality goals. -
Q: How do you guarantee zero defects?
A: Our zero defect approach begins with robust design (DFM), followed by in-process inspection using sensors, and ends with 100% CMM measurement of every tool component and the first 100 parts. We also implement statistical process control (SPC) during production trials. -
Q: What is the warranty period for this tooling?
A: We offer a standard 12-month warranty on workmanship and materials from the date of shipment. Extended warranty options are available upon request. All defects resulting from manufacturing faults are covered. -
Q: Do you provide samples before mass production?
A: Yes, we provide T0 (first trial) samples and up to three rounds of sample modifications at no extra charge for minor adjustments. Samples are shipped within 2 weeks after tooling completion, with full CMM reports. -
Q: Is the tooling suitable for high-volume production?
A: Yes, the TD20 series is designed for long-run production. With hardened steel inserts and optimized cooling, it can sustain 1 million+ cycles without significant wear. We also offer spare parts kits for quick maintenance. -
Q: What certifications does your factory hold?
A: Our factory is certified under TS16969 (equivalent to IATF 16949), and we follow the strictest automotive quality management system. We can provide PPAP Level 3 documentation upon request. -
Q: How do you handle shipping to Southeast Asia?
A: Our ports of shipment are Jiangsu, Shanghai, and Shenzhen, offering competitive freight rates to all Southeast Asian countries. We can also arrange door-to-door delivery via our logistics partners. Shipping time is typically 7–14 days by sea.
Trusted by automotive manufacturers across the globe, Changzhou Hongxinyutai Precision Mold Co., Ltd. has delivered over 500 tooling projects since 2017 with a 99.8% on-time delivery rate. Our ISO 9001-like internal processes combined with TS16969 certification ensure that every structural bracket tooling we produce meets the highest quality standards. Contact us today to discuss your custom auto plastics project and receive a detailed quotation with CMM inspection plan.
