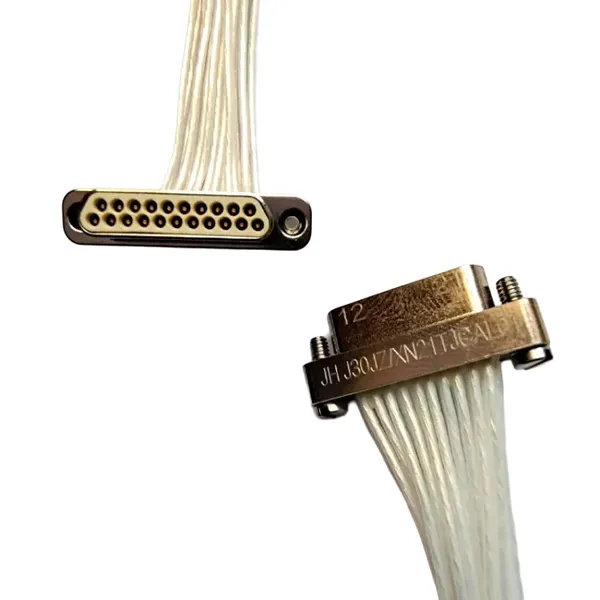

Help CenterJ30/J30j Series Connector Miniature Rectangular Micro D-Sub Connector 9 15 21 Pin
Product Spotlights
rectangular connector 6 pin
rectangular connector rack panel
9 pin electrical connector
Straight Plug Audio Metal Circular Coaxial Connectors
Related Products
-
Factory Direct Sale J30J Series Wire to Board Mini Rectangular Connector for Electronic Communication ApplicationsUS$ 9 - 50MOQ: 10 Pieces -
Fast Delivery J30J Series Aviation Grade Rectangular Micro-D Connector Wire Harness for Aerospace Use 4-90pin Strong ConnectorsUS$ 9 - 50MOQ: 10 Pieces
-
MIL-C-83513 MDM J30 J30J HJ30J J24H Rectangular CONNECTORUS$ 9 - 50MOQ: 10 Pieces
-
J30J Series MIL-spec Aviation Grade J30J-TJL/ZKP/ZKW 9/15/21/25/37/51/100 Micro Rectangular Aerospace Power ConnectorsUS$ 20 - 30MOQ: 10 Pieces
-
MS5015 Series Aviation Connector Mil Spec Aircraft Connectors 55P Circular Socket Plug MS3126F22-55SUS$ 9.95 - 36.95MOQ: 10 Pieces
ØProduct Introduction
lCompliant with GJB2446A(equivalent to MIL-C-83513), this series corresponds to the USA MDM series of product;
lThe contact pins of the connector are made ofelastic twistedpins(commonly known as twist pins);
lWith a high density of contact points, a lateral spacing of 1.27mm, and a row spacing of 1.1mm;
lThe product uses a metal shielded shell and an optional metal tail cover;
lIt includes 11 specifications of 9, 15, 21, 25, 31, 37, 51, 66, 74, 100, and 144 cores;
lThewelding board products are suitable for the tail end change of the hole spacing of the printed circuit board;
lThe way of installation is flexible.It can be applicable to various different installation structureswith the use of different installationattachment.
ØProduct Advantages
Functions:
The product has the advantages of high density, light weight, and miniaturization, and can achieve reliable interconnections of electrical circuit systemsfrom the internal cables to cables, cables to printed circuit board, and between printed circuit boards within the system.
Application Environment:
The product can withstand severe usage environments such as strong vibration and shock, and is particularly suitable for applications where there are special requirements for usage space and equipment lightweight.
Considering various factors such as comprehensive electrical performance, density, adaptability, and cost, the J30J series is currently the most excellent and balanced rectangular electrical connector in terms of comprehensive performance.
ØMain Technical Characteristics
lWorking temperature: -55 ℃ to +125 ℃
lRated working current: 3A
lContact resistance: ≤ 10mΩ
lInsulation resistance:≥5000MΩat normal temperature; ≥100MΩin humid and hot environment
lWithstand voltage: 800V
lVibration: With the frequency of 10to2000Hz, and accelerationof 196m/s2
lImpact: 735m/s211ms
lAcceleration: 735m/s2
lMechanical life: 2000 times
lAir leakage rate index (only for J30J series sealed products, under one atmospheric pressure difference)
nJ30JM series: 5×10-2Pa·cm3/s
nJ30JM1 series: 1×10-3Pa·cm3/s
lRecommended tightening torque of locking screw:
nRecommended tightening torque 0.25to 0.3 N·m
nRecommended installation torque 0.35to 0.4 N·m
