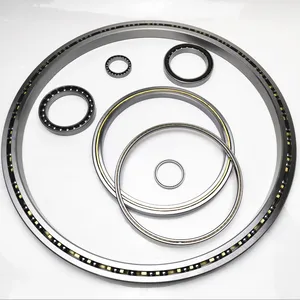

Help CenterKaydon Thin Section Ball Bearings SD160CP0 SD160AR0 SD160XP0 ( 16.0×17.0×0.5inch ) Custom Stainless Steel Bearings For High‑speed Motors.
Product Spotlights
2. Type A/C/X constructions are available.
3. Compact structure, light-weight , low friction, stable rotation
4. Higher load capacity & rigidity , high precision
5. Widely used in robotics, radar, medical CT and optical rotary platforms
Related Products
-
China Factory Custom Kaydon Bearings SD180CP0 SD180AR0 SD180XP0 ( 18.0×19.0×0.5inch ) Stainless Steel BearingsNegotiableMOQ: 1 Combo -
Kaydon Bearing With Brass Cage SD200CP0 SD200AR0 SD200XP0 ( 20.0×21.0×0.5inch ) China Factory Custom Stainless Steel BearingsNegotiableMOQ: 1 Combo
-
China SB025CP0 SB025AR0 SB025XP0 Kaydon Thin Section Stainless Steel Bearings For Rotary Mechanisms 2.5×3.125×0.3125inchNegotiableMOQ: 1 Combo
-
K02508AR0 Kaydon Angular Contact Thin Section Ball BearingsUS$ 1 - 100000MOQ: 1 Piece
-
KAA15CL0 Thin-section Bearings Supplier 1.5X1.875X0.1875 Inch Luoyang BearingUS$ 1 - 100000MOQ: 1 Piece
SD Series Thin-Section Stainless Steel Ball Bearing
Product Overview:
SD series are imperial‑size constant cross‑section thin‑section ball bearings, available in Type A, C and X. The cross‑section dimension remains constant regardless of bore size, greatly saving installation space and reducing overall weight. Available in bearing steel or stainless steel with multiple precision grades P0/P6/P5/P4. Customization based on drawings or samples is also accepted. Widely used in aerospace, radar PTZ, robotics, precision rotary tables, medical imaging equipment and semiconductor inspection instruments.
Application:
1. Industrial robot joints & rotary units
2. Precision CNC rotary tables & indexing plates
3. Medical inspection & imaging equipment
4. Optical instruments & testing instruments
5. Semiconductor processing equipment
6. Security radar & monitoring PTZ
7. Automatic packaging equipment
Parameters:
| Item No. | Dimensiom | Basic Cap | Unit | Interchange | ||
| (inch / mm) |
(N) |
weight | ||||
| d | D | Cor | Cr | Kg | INA | |
| SD160CP0 | 16.0 | 17.0 | 50180 | 14890 | 1.41 | CSCD160 |
406.4 |
431.8 | |||||
kaydon thin-section bearings Structure:
| Open Radial Contact Ball Bearings (KAA,KA, KB, KC, KD, KF, KG series) |
| Open Angular Contact Ball Bearings (KAA,KA, KB, KC, KD, KF, KG series) |
| Open Four Point Contact Ball Bearings (KAA,KA, KB, KC, KD, KF, KG series) |
| Sealed Radial Contact Ball Bearings (JHA, JA, JB, JU. JG series) |
|
Sealed Four Point Contact Ball Bearings ( JHA, JA, JB, JU, JG series) |
Model lists:
Open type thin section kaydon deep groove ball bearing:
KAA10CP0,KAA15CP0,KAA17CP0,
KA020CP0, KA025CP0, KA030CP0, KA035CP0, KA040CP0, KA042CP0, KA045CP0, KA047CP0, KA050CP0, KA055CP0, KA060CP0, KA065CP0, KA070CP0, KA075CP0, KA080CP0, KA090CP0, KA100CP0, KA110CP0, KA120CP0,
KB020CP0, KB025CP0, KB030CP0, KB035CP0, KB040CP0, KB042CP0, KB045CP0, KB047CP0, KB050CP0, KB055CP0, KB060CP0, KB065CP0, KB070CP0, KB075CP0, KB080CP0, KB090CP0, KB100CP0, KB110CP0, KB120CP0, KB140CP0, KB160CP0, KB180CP0, KB200CP0,
KC040CP0, KC042CP0, KC045CP0, KC047CP0, KC050CP0, KC055CP0, KC060CP0, KC065CP0, KC070CP0, KC075CP0, KC080CP0, KC090CP0, KC100CP0, KC110CP0, KC120CP0, KC140CP0, KC160CP0, KC180CP0, KC200CP0,
KD040CP0, KD042CP0, KD045CP0, KD047CP0, KD050CP0, KD055CP0, KD060CP0, KD065CP0, KD070CP0, KD075CP0, KD080CP0, KD090CP0, KD100CP0, KD110CP0, KD120CP0, KD140CP0, KD160CP0, KD180CP0, KD200CP0,
KF040CP0, KF042CP0, KF045CP0, KF047CP0, KF050CP0, KF055CP0, KF060CP0, KF065CP0, KF070CP0, KF075CP0, KF080CP0, KF090CP0, KF100CP0, KF110CP0, KF120CP0, KF140CP0, KF160CP0, KF180CP0, KF200CP0,
KG040CP0, KG042CP0, KG045CP0, KG047CP0, KG050CP0, KG055CP0, KG060CP0, KG065CP0, KG070CP0, KG075CP0, KG080CP0, KG090CP0, KG100CP0, KG110CP0, KG120CP0, KG140CP0, KG160CP0, KG180CP0, KG200CP0
Sealed type thin section kaydon deep groove ball bearing:
JA020CP0, JA025CP0, JA030CP0, JA035CP0, JA040CP0, JA042CP0, JA045CP0, JA047CP0, JA050CP0, JA055CP0, JA060CP0, JA065CP0,
JB020CP0, JB025CP0, JB030CP0, JB035CP0, JB040CP0, JB042CP0, JB045CP0, JB047CP0, JB050CP0, JB055CP0, JB060CP0, JB065CP0,
JU040CP0, JU042CP0, JU045CP0, JU047CP0, JU050CP0, JU055CP0, JU060CP0, JU065CP0, JU070CP0, JU075CP0, JU080CP0, JU090CP0, JU100CP0, JU110CP0, JU120CP0,
JG120CP0, JG140CP0, JG160CP0, JG180CP0, JG200CP0
