Help CenterKaydon Stainless Steel Bearings SB160CP0 SB160AR0 SB160XP0 Size 16.0×16.625×0.3125inch Custom With Drawings & Samples.
Product Spotlights
2. Type A/C/X constructions are available.
3. Compact structure, light-weight , low friction, stable rotation
4. Higher load capacity & rigidity , high precision
5. Widely used in robotics, radar, medical CT and optical rotary platforms
Related Products
-
Kaydon Stainless Steel Bearings SB180CP0 SB180AR0 SB180XP0 Bearings Custom With Drawings & Samples.（18.0×18.625×0.3125inch）NegotiableMOQ: 1 Combo -
SB200CP0 SB200AR0 SB200XP0 Size 20.0×20.625×0.3125inch China Factory Direct Supply Kaydon Stainless Steel BearingsNegotiableMOQ: 1 Combo
-
SC040AR0 SC040CP0 SC040XP0 Size 4.0×4.75×0.375inch Corrosion Resistant Stainless Steel Thin Section Ball BearingNegotiableMOQ: 1 Combo
-
SC042AR0 SC042CP0 SC042XP0 Size 4.25×5.0×0.375inch Corrosion Resistant Stainless Steel Bearing China Factory Direct Supply.NegotiableMOQ: 1 Combo
-
SC045AR0 SC045CP0 SC045XP0 Size 4.5×5.25×0.375inch Corrosion Resistant Stainless Steel Bearing China Factory CustomizationNegotiableMOQ: 1 Combo
SB Series Thin-Section Stainless Steel Constant Cross-Section Bearing
Product Overview:
SB Series are imperial reinforced thin-section ball bearings featuring a fixed square cross-section of 7.9375 mm, with bore sizes ranging from 50.8 mm to 508.0 mm. As the larger cross-section option among SAA-SA-SB product line, it retains the lightweight hollow-shaft merit of thin-section bearings while greatly boosting load capacity and rigidity. Available in bearing steel or stainless steel with multiple precision grades P0/P6/P5/P4. Customization based on drawings or samples is also accepted. SB series is the preferred alternative when SA series cannot meet load and overturning moment requirements. Three internal configurations (Type A/C/X) are available for heavy-duty precision rotary mechanisms.
Standard specifications are available, also customization according to drawings or samples is available for other requirements~
Application:
Heavy-duty servo rotary tables
automation fixture rotary platforms
large survey gimbals
heavy-load robot joints
large medical imaging equipment
radar rotary mechanisms
large semiconductor inspection rotary modules.
Parameters:
| Item No. | Dimension | Basic Cap | Unit | Interchange | ||
| (inch / mm) | (N) |
weight | ||||
| d | D | Cor | Cr | Kg | INA | |
| SB160CP0 | 16.0 | 16.625 |
29430 | 7420 | 0.544 | CSCB160 |
| 406.4 | 422.275 | |||||
kaydon thin-section bearings Structure:
Open Radial Contact Ball Bearings (KAA,KA, KB, KC, KD, KF, KG series)
Open Angular Contact Ball Bearings (KAA,KA, KB, KC, KD, KF, KG series)
Open Four Point Contact Ball Bearings (KAA,KA, KB, KC, KD, KF, KG series)
Sealed Radial Contact Ball Bearings (JHA, JA, JB, JU. JG series)
Sealed Four Point Contact Ball Bearings ( JHA, JA, JB, JU, JG series)
Model lists:

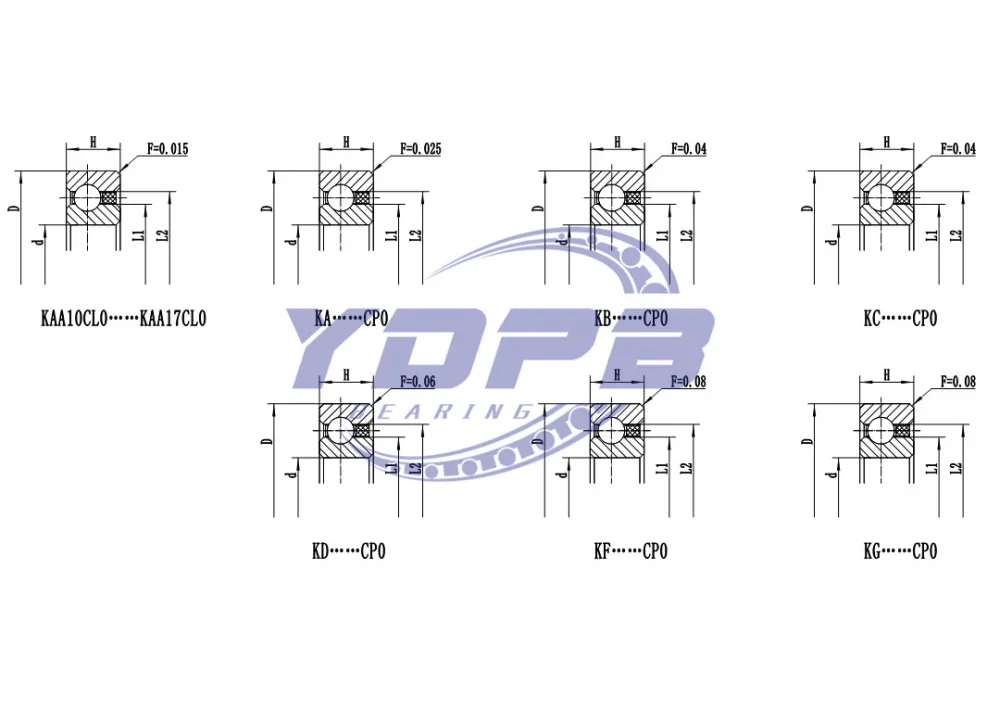

Open type thin section kaydon deep groove ball bearing:
KAA10CP0,KAA15CP0,KAA17CP0,
KA020CP0, KA025CP0, KA030CP0, KA035CP0, KA040CP0, KA042CP0, KA045CP0, KA047CP0, KA050CP0, KA055CP0, KA060CP0, KA065CP0, KA070CP0, KA075CP0, KA080CP0, KA090CP0, KA100CP0, KA110CP0, KA120CP0,
KB020CP0, KB025CP0, KB030CP0, KB035CP0, KB040CP0, KB042CP0, KB045CP0, KB047CP0, KB050CP0, KB055CP0, KB060CP0, KB065CP0, KB070CP0, KB075CP0, KB080CP0, KB090CP0, KB100CP0, KB110CP0, KB120CP0, KB140CP0, KB160CP0, KB180CP0, KB200CP0,
KC040CP0, KC042CP0, KC045CP0, KC047CP0, KC050CP0, KC055CP0, KC060CP0, KC065CP0, KC070CP0, KC075CP0, KC080CP0, KC090CP0, KC100CP0, KC110CP0, KC120CP0, KC140CP0, KC160CP0, KC180CP0, KC200CP0,
KD040CP0, KD042CP0, KD045CP0, KD047CP0, KD050CP0, KD055CP0, KD060CP0, KD065CP0, KD070CP0, KD075CP0, KD080CP0, KD090CP0, KD100CP0, KD110CP0, KD120CP0, KD140CP0, KD160CP0, KD180CP0, KD200CP0,
KF040CP0, KF042CP0, KF045CP0, KF047CP0, KF050CP0, KF055CP0, KF060CP0, KF065CP0, KF070CP0, KF075CP0, KF080CP0, KF090CP0, KF100CP0, KF110CP0, KF120CP0, KF140CP0, KF160CP0, KF180CP0, KF200CP0,
KG040CP0, KG042CP0, KG045CP0, KG047CP0, KG050CP0, KG055CP0, KG060CP0, KG065CP0, KG070CP0, KG075CP0, KG080CP0, KG090CP0, KG100CP0, KG110CP0, KG120CP0, KG140CP0, KG160CP0, KG180CP0, KG200CP0
Sealed type thin section kaydon deep groove ball bearing:
JA020CP0, JA025CP0, JA030CP0, JA035CP0, JA040CP0, JA042CP0, JA045CP0, JA047CP0, JA050CP0, JA055CP0, JA060CP0, JA065CP0,
JB020CP0, JB025CP0, JB030CP0, JB035CP0, JB040CP0, JB042CP0, JB045CP0, JB047CP0, JB050CP0, JB055CP0, JB060CP0, JB065CP0,
JU040CP0, JU042CP0, JU045CP0, JU047CP0, JU050CP0, JU055CP0, JU060CP0, JU065CP0, JU070CP0, JU075CP0, JU080CP0, JU090CP0, JU100CP0, JU110CP0, JU120CP0,
JG120CP0, JG140CP0, JG160CP0, JG180CP0, JG200CP0
