Welcome to Tianjin ZhuoLiNeng (ZLN) Technology Co., Ltd. – a leading manufacturer specializing in advanced electrochemical disinfection systems. Our Sodium Hypochlorite Generator with 5%-15% Concentration is engineered to deliver reliable, cost-effective on-site chlorine production for water treatment plants, swimming pools, food processing, and industrial applications. With fully automatic control and an exceptionally low salt purity requirement of only NACL > 89%, this generator significantly reduces operational costs and simplifies daily maintenance. Built with robust titanium electrodes and intelligent PLC control, it ensures consistent output of 5-15% sodium hypochlorite solution, meeting the highest standards of safety and efficiency.
Key Features & Technical Specifications:
Flexible Concentration Output: Adjustable production of 5%-15% sodium hypochlorite solution to suit various disinfection needs.
Fully Automatic Operation: PLC-based control system with touch screen interface, automatic salt dissolving, dilution, electrolyte circulation, and gas separation.
Low Salt Purity Requirement: Only NACL > 89% needed – use common industrial salt without expensive refining, drastically lowering raw material costs.
High Efficiency Electrodes: Titanium substrate coated with mixed metal oxides (MMO) ensures long service life (over 5 years) and low energy consumption.

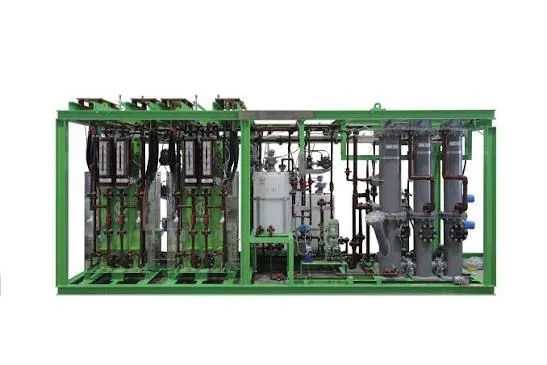

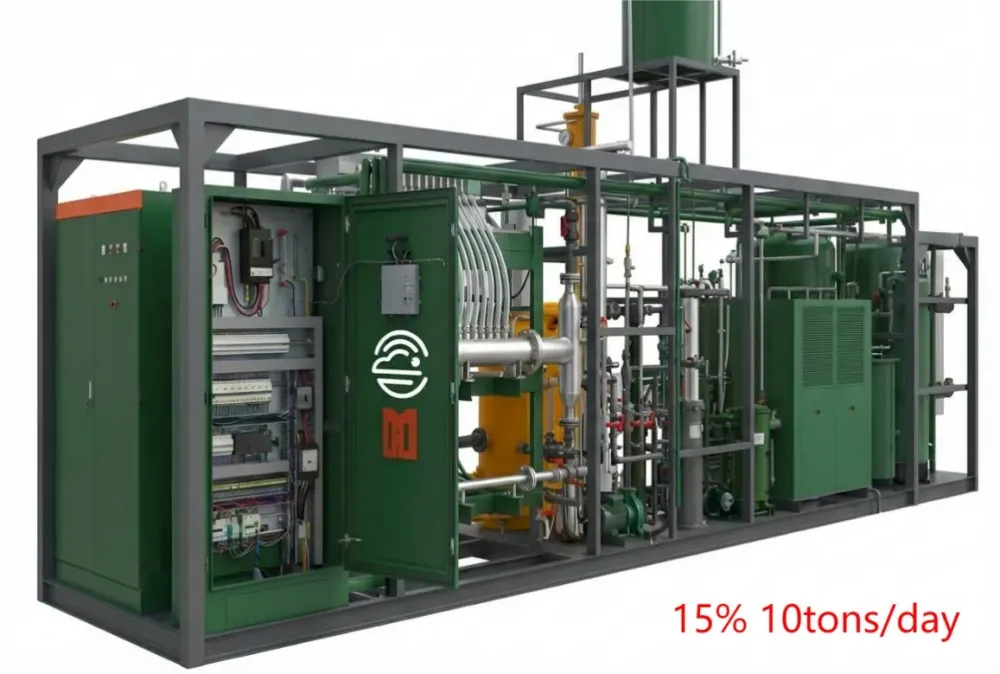

Compact Modular Design: Skid-mounted or containerized options available for easy installation and scalability.
Built-in Safety Systems: Hydrogen gas detection, automatic shutdown, over-temperature protection, and leak-proof design.
| Parameter | Specification |
| Hypochlorite Concentration | 5% – 15% (adjustable) |
| Salt Purity Requirement | NACL ≥ 89% |
| Production Capacity | 50 L/h – 5000 L/h (customizable) |
| Power Consumption | 2.5 kWh per kg of active chlorine |
| Salt Consumption | 2.0 kg per kg of active chlorine |
| Electrode Material | Titanium + MMO coating |
| Control System | PLC + HMI touch screen (automatic) |
Benefits for Your Business:
Reduce Chemical Costs: Produce chlorine on-site, eliminating transportation, storage, and handling of hazardous liquid chlorine or bleach.
Lower Salt Expenses: Accept low-purity salt (only 89% NACL) – typical industrial salt is much cheaper than refined salt.
Minimize Labor: Fully automatic system with self-cleaning function reduces manual intervention; remote monitoring optional.
Eco-Friendly: No chlorine gas cylinders, no toxic byproducts – only sodium hypochlorite and hydrogen (safely vented).
Consistent Quality: Stable concentration output ensures effective disinfection every time, meeting water quality standards.
Why Choose Tianjin ZLN Technology?
As a professional manufacturer based in Tianjin, China, we have supplied our sodium hypochlorite generators to over 20 countries across North America, South America, Europe, Africa, and Asia. Our team of experienced engineers provides comprehensive after-sales support, including installation guidance, training, and spare parts supply. With a strong R&D department, we continuously improve our products to meet evolving market needs. We are confident that our generator can bring tangible value to your operations. Contact us today for a customized solution tailored to your capacity and site conditions.
Frequently Asked Questions (FAQ)
Q: What is the minimum salt purity required for this generator?
A: Our generator works efficiently with salt purity of NACL ≥ 89%. Lower purity may cause scaling and reduce electrode life, but we recommend using common industrial salt that meets this requirement.Q: How often do I need to clean the electrodes?
A: The system has an automatic self-cleaning function (reverse polarity). Under normal conditions, manual cleaning is required once every 6-12 months, depending on water hardness and salt quality.Q: Can the output concentration be adjusted during operation?
A: Yes, the PLC control allows you to set the desired concentration between 5% and 15% via the touch screen. The system automatically adjusts current and flow rate.Q: What is the typical lifespan of the electrodes?
A: Our MMO-coated titanium electrodes typically last 5-8 years under normal operating conditions, depending on total running hours and water quality.Q: Do I need a hydrogen gas detector?
A: The generator is equipped with a built-in hydrogen gas sensor and automatic ventilation fan. For safety, we recommend installing a hydrogen detector in the room as well, but it is not mandatory.Q: What is the power consumption for producing 1 kg of active chlorine?
A: The energy consumption is approximately 3.5-4.5 kWh per kg of active chlorine, depending on the concentration set and ambient temperature.Q: How long does delivery take?
A: Standard lead time is 15-30 days after order confirmation, depending on the model and customization. We can expedite for urgent orders subject to availability.
