Stainless Steel Custom-made SA020CP0 SA020AR0 SA020XP0 Thin Section Ball Bearings China Supplier 2×2.5×0.25inch

Stainless Steel Custom-made SA020CP0 SA020AR0 SA020XP0 Thin Section Ball Bearings China Supplier 2×2.5×0.25inch thumbnail-1
Stainless Steel Custom-made SA020CP0 SA020AR0 SA020XP0 Thin Section Ball Bearings China Supplier 2×2.5×0.25inch thumbnail-2
Stainless Steel Custom-made SA020CP0 SA020AR0 SA020XP0 Thin Section Ball Bearings China Supplier 2×2.5×0.25inch thumbnail-3
Stainless Steel Custom-made SA020CP0 SA020AR0 SA020XP0 Thin Section Ball Bearings China Supplier 2×2.5×0.25inch thumbnail-4
Stainless Steel Custom-made SA020CP0 SA020AR0 SA020XP0 Thin Section Ball Bearings China Supplier 2×2.5×0.25inch thumbnail-5
Stainless Steel Custom-made SA020CP0 SA020AR0 SA020XP0 Thin Section Ball Bearings China Supplier 2×2.5×0.25inch photo-1
Stainless Steel Custom-made SA020CP0 SA020AR0 SA020XP0 Thin Section Ball Bearings China Supplier 2×2.5×0.25inch photo-2
Stainless Steel Custom-made SA020CP0 SA020AR0 SA020XP0 Thin Section Ball Bearings China Supplier 2×2.5×0.25inch photo-3
Stainless Steel Custom-made SA020CP0 SA020AR0 SA020XP0 Thin Section Ball Bearings China Supplier 2×2.5×0.25inch photo-4
Stainless Steel Custom-made SA020CP0 SA020AR0 SA020XP0 Thin Section Ball Bearings China Supplier 2×2.5×0.25inch photo-5

Product Spotlights

1. Materials can be customized: standard bearing steel, stainless steel customization
2. Compact structure, light-weight , low friction, stable rotation
3. Higher load capacity & rigidity , high precision
4. Widely used in robotics, radar, medical CT and optical rotary platforms
Negotiable MOQ: 1 Combo (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Transport Package:
standard export package
Specification:
2×2.5×0.25inch
Trademark:
YDPB
Contact Supplier Request Quote Chat Now
Luoyang Yadian Machinery Equipment Co.,Ltd
Gold Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Transport Package standard export package
Specification 2×2.5×0.25inch
Trademark YDPB
Origin China

                                                        SA Series Stainless Steel Thin-Section Constant Cross-Section Bearing



Product Overview:

SA Series are imperial standard thin-section ball bearings with a constant square cross-section of 6.35 mm, available in bore sizes ranging from 50.8 mm to 304.8 mm. As the most versatile thin-section bearing line, it achieves an excellent balance between lightweight layout and structural rigidity. It delivers higher load capacity than SAA series with identical bore, while occupying less radial space than SB series. Available in bearing steel or stainless steel with multiple precision grades P0/P6/P5/P4. Customization based on drawings or samples is also accepted.

Three internal types (A/C/X) are available to satisfy different load conditions, serving as the standard solution for precision rotary mechanisms.


Application:

Industrial robot joints,

radar rotary platforms

medical CT equipment

optical inspection stages

survey gimbals

semiconductor rotary modules

precision CNC rotary fixtures.


Parameters:

KB series

Item No. Dimension Basic Cap Unit Interchange
(inch / mm) (N)
 weight
d D Cor Cr Kg INA
SA020CP0 2.000 2.500 3020 1420 0.048 CSCA020
50.800 63.500
SA025CP0 2.500 3.000 3690 1600 0.059 CSCA025
63.500 76.200
SA030CP0
 3.000 3.500 4400 1820 0.068 CSCA030
76.200 88.900
SA035CP0 3.500 4.000 5070 2000 0.082 CSCA035
88.900 101.600
SA040CP0 4.000 4.500
 5730 2130 0.090 CSCA040
101.600 114.300
SA042CP0 4.250 4.750 6090 2220 0.095 CSCA042
107.950 120.650
SA045CP0 4.500 5.000 6400 2310 0.100 CSCA045
114.300 127.000
SA047CP0 4.750
 5.250 6760 2400 0.104 CSCA047
120.650 133.350
SA050CP0 5.000 5.500 7070 2490 0.109 CSCA050
127.000 139.700
SA055CP0 5.500 6.000 7780 2620 0.118 CSCA055
139.700 152.400
SA060CP0 6.000 6.500 8450 2800 0.130 CSCA060
152.400 165.100
SA065CP0 6.500 7.000 9110 2930 0.140 CSCA065
165.100 177.800
SA070CP0 7.000 7.500 9780 3070 0.150 CSCA070
177.800 190.500
SA075CP0 7.500 8.000 10450 3200 0.160 CSCA075
190.500 203.200
SA080CP0 8.000 8.500 11110 3330 0.172 CSCA080
203.200 215.900
SA090CP0 9.000 9.500 12490 3600 0.200 CSCA090
228.600 241.300
SA100CP0 10.000 10.500 13820 3870 0.227 CSCA100
254.000 266.700
SA110CP0 11.000 11.500 15160 4130 0.236 CSCA110
279.400 292.100
SA120CP0 12.000 12.500 16540 4360 0.254 CSCA120
304.800 317.500

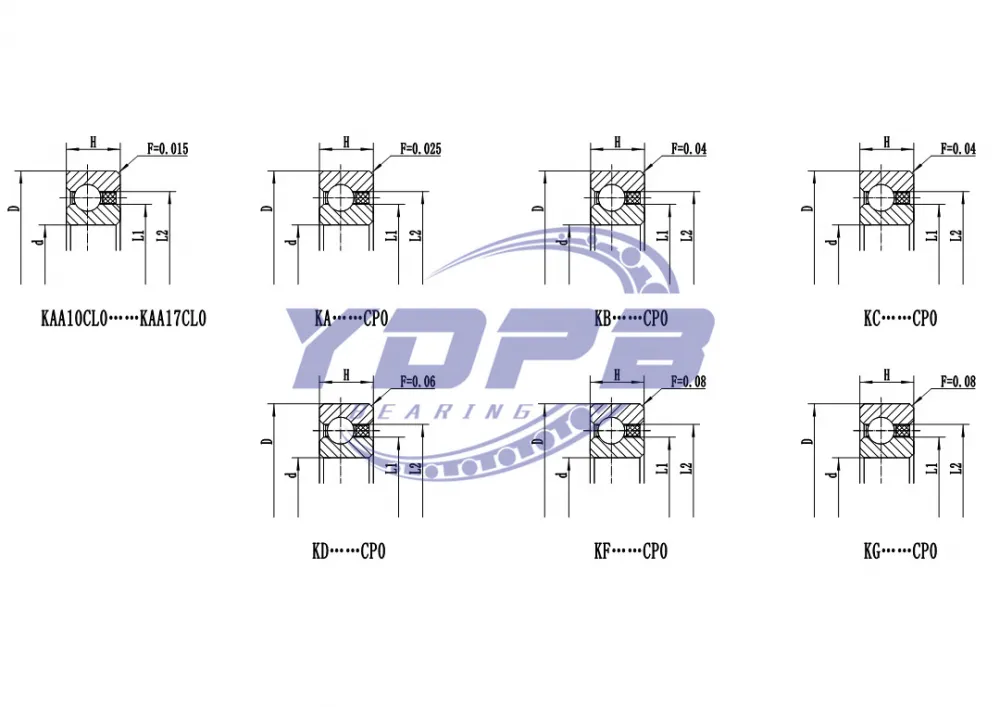

kaydon thin-section bearings Structure:

 Open Radial Contact Ball Bearings (KAA,KA, KB, KC, KD, KF, KG series)

 Open Angular Contact Ball Bearings (KAA,KA, KB, KC, KD, KF, KG series)

 Open Four Point Contact Ball Bearings (KAA,KA, KB, KC, KD, KF, KG series)

 Sealed Radial Contact Ball Bearings (JHA, JA, JB, JU. JG series)

 Sealed Four Point Contact Ball Bearings ( JHA, JA, JB, JU, JG series)


Model lists:
Open type thin section kaydon deep groove ball bearing:

KAA10CP0,KAA15CP0,KAA17CP0,
KA020CP0, KA025CP0, KA030CP0, KA035CP0, KA040CP0, KA042CP0, KA045CP0, KA047CP0, KA050CP0, KA055CP0, KA060CP0, KA065CP0, KA070CP0, KA075CP0, KA080CP0, KA090CP0, KA100CP0, KA110CP0, KA120CP0,
KB020CP0, KB025CP0, KB030CP0, KB035CP0, KB040CP0, KB042CP0, KB045CP0, KB047CP0, KB050CP0, KB055CP0, KB060CP0, KB065CP0, KB070CP0, KB075CP0, KB080CP0, KB090CP0, KB100CP0, KB110CP0, KB120CP0, KB140CP0, KB160CP0, KB180CP0, KB200CP0,
KC040CP0, KC042CP0, KC045CP0, KC047CP0, KC050CP0, KC055CP0, KC060CP0, KC065CP0, KC070CP0, KC075CP0, KC080CP0, KC090CP0, KC100CP0, KC110CP0, KC120CP0, KC140CP0, KC160CP0, KC180CP0, KC200CP0,
KD040CP0, KD042CP0, KD045CP0, KD047CP0, KD050CP0, KD055CP0, KD060CP0, KD065CP0, KD070CP0, KD075CP0, KD080CP0, KD090CP0, KD100CP0, KD110CP0, KD120CP0, KD140CP0, KD160CP0, KD180CP0, KD200CP0,
KF040CP0, KF042CP0, KF045CP0, KF047CP0, KF050CP0, KF055CP0, KF060CP0, KF065CP0, KF070CP0, KF075CP0, KF080CP0, KF090CP0, KF100CP0, KF110CP0, KF120CP0, KF140CP0, KF160CP0, KF180CP0, KF200CP0,
KG040CP0, KG042CP0, KG045CP0, KG047CP0, KG050CP0, KG055CP0, KG060CP0, KG065CP0, KG070CP0, KG075CP0, KG080CP0, KG090CP0, KG100CP0, KG110CP0, KG120CP0, KG140CP0, KG160CP0, KG180CP0, KG200CP0


Sealed type thin section kaydon deep groove ball bearing:
JA020CP0, JA025CP0, JA030CP0, JA035CP0, JA040CP0, JA042CP0, JA045CP0, JA047CP0, JA050CP0, JA055CP0, JA060CP0, JA065CP0,

JB020CP0, JB025CP0, JB030CP0, JB035CP0, JB040CP0, JB042CP0, JB045CP0, JB047CP0, JB050CP0, JB055CP0, JB060CP0, JB065CP0,

JU040CP0, JU042CP0, JU045CP0, JU047CP0, JU050CP0, JU055CP0, JU060CP0, JU065CP0, JU070CP0, JU075CP0, JU080CP0, JU090CP0, JU100CP0, JU110CP0, JU120CP0,

JG120CP0, JG140CP0, JG160CP0, JG180CP0, JG200CP0
