Help CenterSmall Cabinet Liquid Nitrogen -196℃ Fast Quick Freezing Machine
Related Products
-
Big Cabinet Liquid Nitrogen Fast Quick Flash Freezing Freezer MachineNegotiableMOQ: 1 Set -
Large LN2 Liquid Nitrogen Tunnel Fast Quick Rapid Freezer MachineNegotiableMOQ: 1 Set
-
Liquid Nitrogen -196℃ Cabinet Fast Quick Freezing Freezer MachineNegotiableMOQ: 1 Set
-
Big LN2 Liquid Nitrogen Cabinet Quick Freezer MachineNegotiableMOQ: 1 Set
-
Single Door LN2 Liquid Nitrogen Cabinet Quick Freezer MachineNegotiableMOQ: 1 Set
The liquid nitrogen quick freezer is a refrigeration device that uses liquid nitrogen (-196℃) as an ultra-low temperature cold source to rapidly cool and freeze food. Liquid nitrogen flash freezer offers fast freezing speeds and excellent preservation effects, and are widely used in food processing, biomedicine, and materials research. Liquid nitrogen fast freezer is an upgraded replacement for traditional mechanical refrigeration equipment.

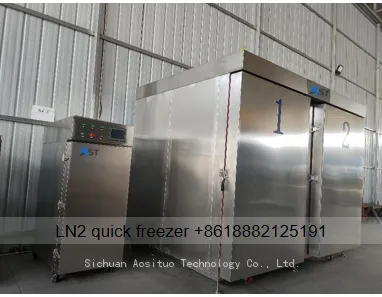

The cabinet-style liquid nitrogen quick-freezer operates in batch mode and can be customized with single, double, or multiple doors based on production requirements. It is suitable for the quick-freezing of small-batch, diverse, or high-value-added food products, offering operational flexibility and a compact footprint.
Technical Specifications:
1.Model CAF-D1, Capacity 100–200 kg/h, Chamber Dimensions 600×700×1400 mm, Power 1.5 kW (380V, 50Hz)
2.Model CAF-D2, Capacity 200–300 kg/h, Chamber Dimensions 1000×850×1500 mm, Power 1.5 kW (380V, 50Hz)
3.Model CAF-S1, Capacity 200–300 kg/h, Chamber Dimensions 2×(660×800×1500) mm, Power 3 kW (380V, 50Hz)
4.Model CAF-S2, Capacity 450–500 kg/h, Chamber Dimensions 2×(970×950×1750) mm, Power 4.5 kW (380V, 50Hz)
5.Model CAF-TS3, Capacity 400–500 kg/h, Chamber Dimensions 1300×920×1500 mm, Power 3 kW (380V, 50Hz)
Liquid Nitrogen Equipment Products from Sichuan Aosituo Technology include: Liquid Nitrogen Dosing Machine, Cabinet-type Liquid Nitrogen Quick-Freezer, Tunnel-type Liquid Nitrogen Quick-Freezer, Self-Pressurizing Liquid Nitrogen Container, Liquid Nitrogen Biological Container, Liquid Nitrogen Container for Sample Banks, Liquid Nitrogen Cryogenic Treatment Chamber, Liquid Nitrogen High/Low-Temperature Test Chamber, Liquid Nitrogen Cryogenic Granulator, Programmable Controlled-Rate Freezer
